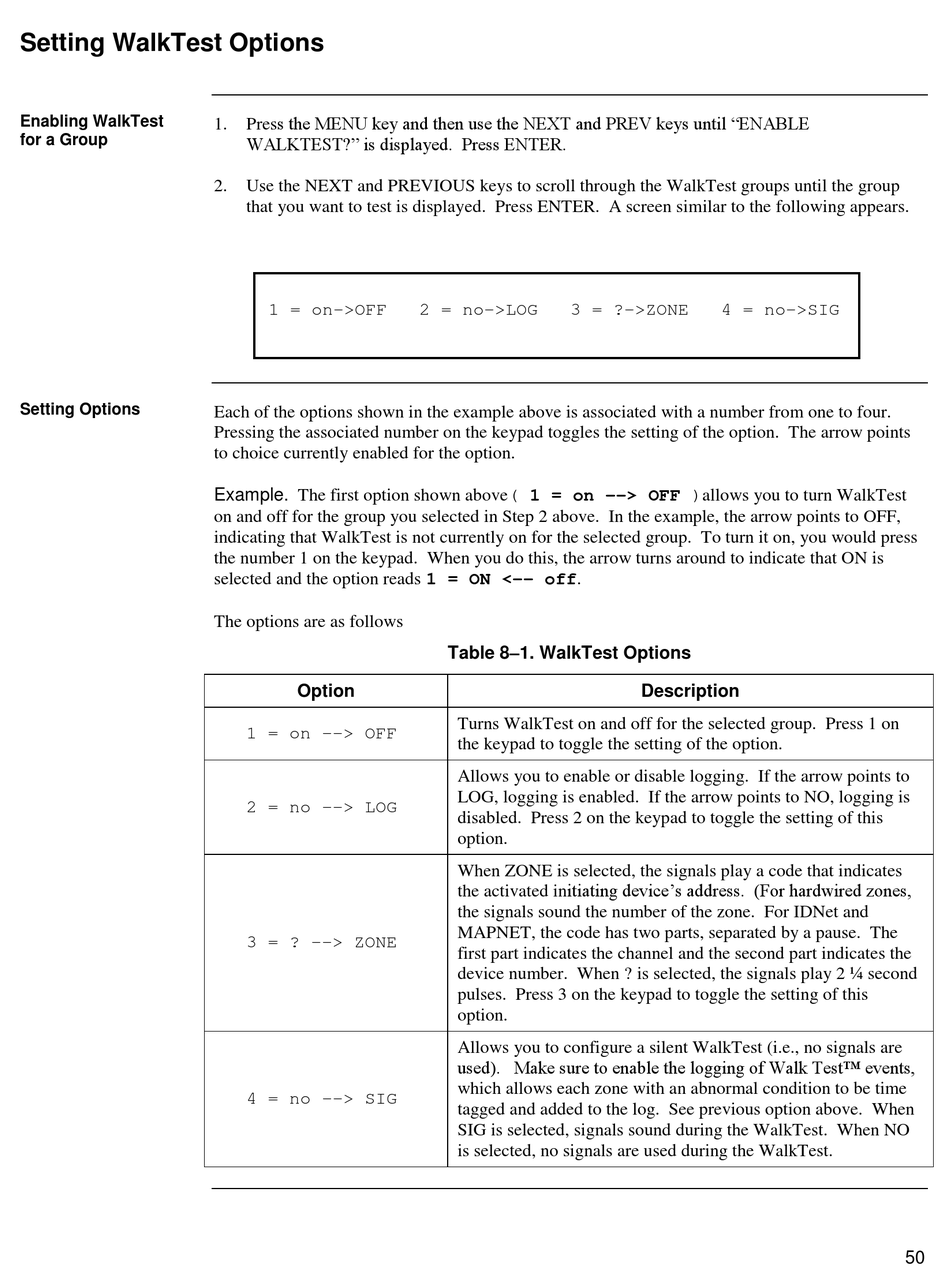

S etting WalkTest Options
3 2 B
E nabling WalkTest
1 0 8 B
for a Group
S etting Options
1 0 9 B
Press the MENU key and then use the NEXT and PREV keys until "ENABLE
1.
WALKTEST?" is displayed. Press ENTER.
2. Use the NEXT and PREVIOUS keys to scroll through the WalkTest groups until the group
that you want to test is displayed. Press ENTER. A screen similar to the following appears.
1 = on->OFF
Each of the options shown in the example above is associated with a number from one to four.
Pressing the associated number on the keypad toggles the setting of the option. The arrow points
to choice currently enabled for the option.
Example. The first option shown above( 1 = on --> OFF )allows you to turn WalkTest
on and off for the group you selected in Step 2 above. In the example, the arrow points to OFF,
indicating that WalkTest is not currently on for the selected group. To turn it on, you would press
the number 1 on the keypad. When you do this, the arrow turns around to indicate that ON is
selected and the option reads 1 = ON <-- off.
The options are as follows
Option
1 = on --> OFF
2 = no --> LOG
3 = ? --> ZONE
4 = no --> SIG
2 = no->LOG 3 = ?->ZONE
Table 8–1. WalkTest Options
Turns WalkTest on and off for the selected group. Press 1 on
the keypad to toggle the setting of the option.
Allows you to enable or disable logging. If the arrow points to
LOG, logging is enabled. If the arrow points to NO, logging is
disabled. Press 2 on the keypad to toggle the setting of this
option.
When ZONE is selected, the signals play a code that indicates
the activated initiating device's address. (For hardwired zones,
the signals sound the number of the zone. For IDNet and
MAPNET, the code has two parts, separated by a pause. The
first part indicates the channel and the second part indicates the
device number. When ? is selected, the signals play 2 ¼ second
pulses. Press 3 on the keypad to toggle the setting of this
option.
Allows you to configure a silent WalkTest (i.e., no signals are
used). Make sure to enable the logging of Walk Test™ events,
which allows each zone with an abnormal condition to be time
tagged and added to the log. See previous option above. When
SIG is selected, signals sound during the WalkTest. When NO
is selected, no signals are used during the WalkTest.
4 = no->SIG
Description
