Connecting to a DC Power Supply
Use the optional DC drive cable (B-514).
CAUTION
Use a power supply within the 8.5 to 24 VDC range.
(1) Configure the tip of the DC drive cable (B-514: 2m) to enable it to be connected to the DC
power supply.
(2) Connect the DC output side to the power supply connector on the GL800.
(3) Connect the DC input side to the DC power supply.
CAUTION
Be sure to check the polarity of the wire tips when performing wiring.
(4) Press the power switch on the GL800 to the ON side to turn on the power.

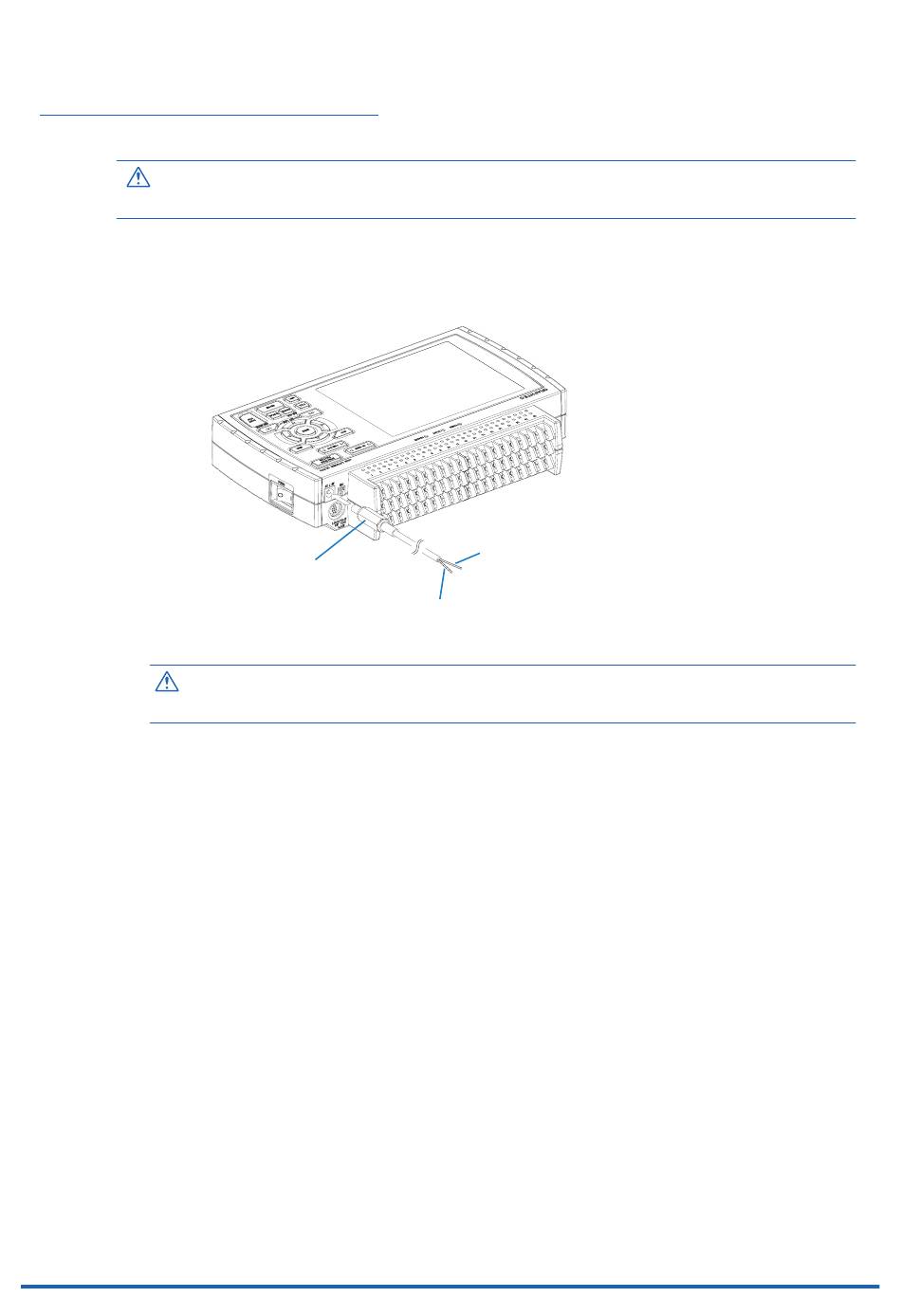

DC drive cable
(B-514)
Shielded lead (- side)
White (+ side)
Checks and Preparation
2-5
