Settings and Measurement

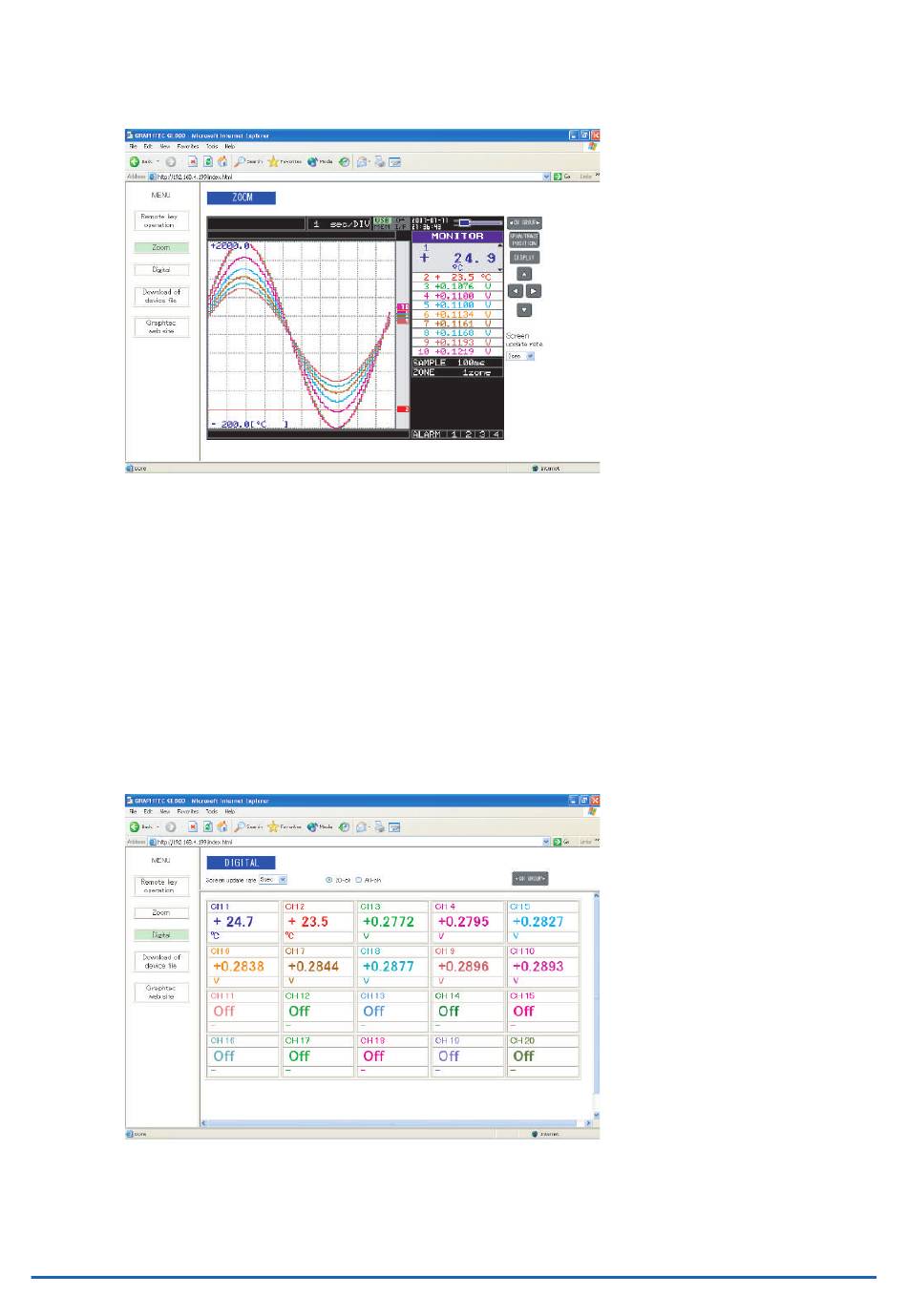

• Zoom
CH GROUP ........................ Digital values for 10 channels are displayed on a single screen.
DISPLAY ............................. Switches the display mode.
SPAN/TRACE/POSTION .... Switches the display in the digital display area.
← → ↑ ↓ .................................. Cursor keys
Screen update speed .......... Specifies the speed in which the screen is updated.
• Digital
Displayed CH ...................... Select either 20 channel display or ALL channel display.
Switch CH group ................. Displays digital values for 20 channels on a single screen.
Screen update speed .......... Specifies the speed in which the screen is updated.
3-40
Press this key to display the next group consisting of 10 channels.
Press this key to switch among Waveform + Digital, Expanded
Waveform, and Digital screens.
Press this key to switch among MONITOR, SPAN, POSITION, and
TRACE.
Available update speeds are 2, 5, and 10 seconds.
Press this key to display the next group consisting of 20 channels.
Available update speeds are 2, 5, and 10 seconds.
