Settings and Measurement
• Operation
Operation mode
Text input
When selecting operation

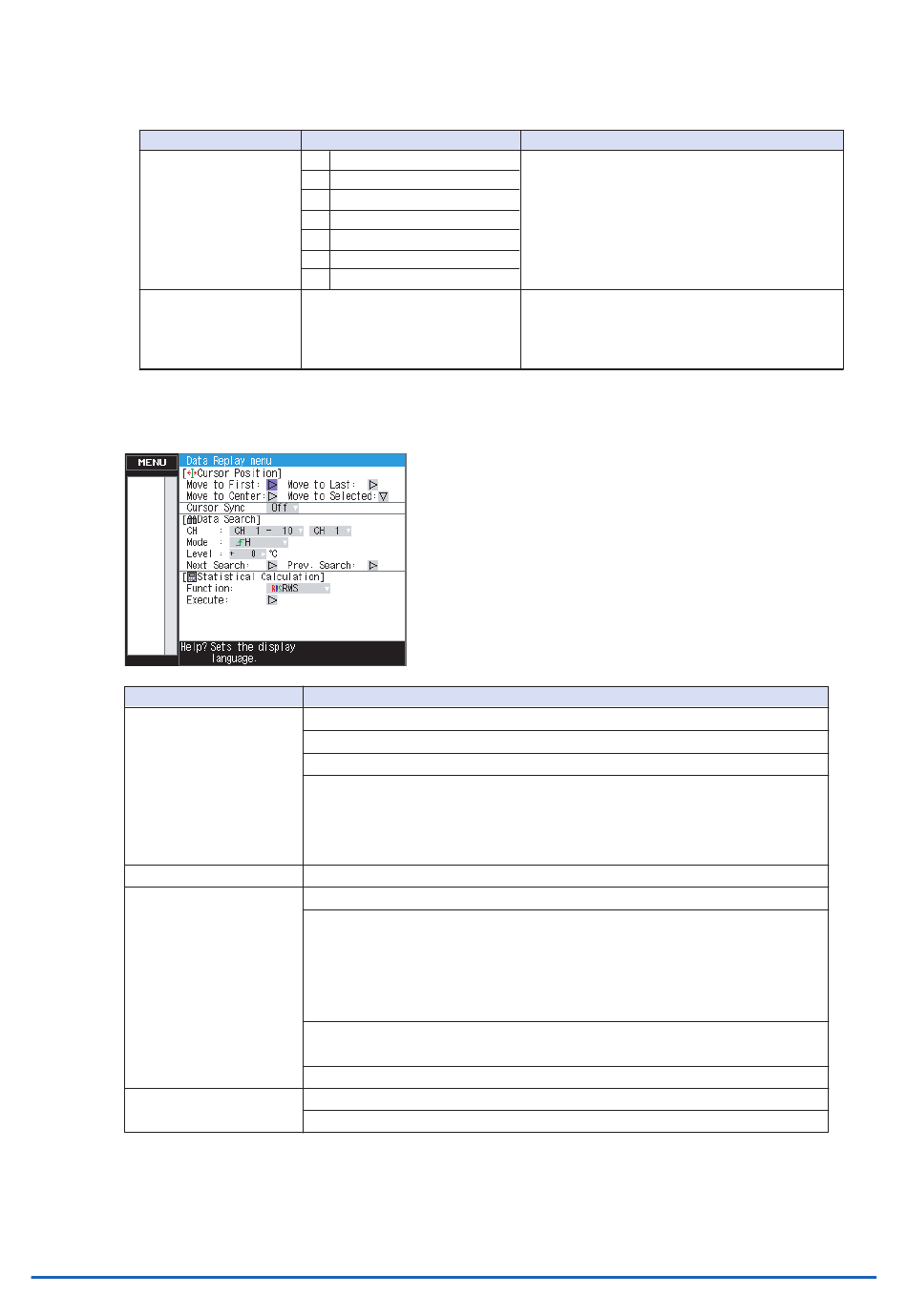

Data replay menu
Data replay menus are displayed by pressing the MENU key during replay.
Cursor Position
Cursor Sync
Data Search
Statistical Calculation
between cursors
3-34
A Upper case alphabet mode
a Lower case alphabet mode
0 Numeric mode
+ Symbol mode
←
Delete mode
↓
Insert mode
OK Finalize mode
Text used for each operation
Setting
• Move to First Data
• Move to Last Data
• Move to Center
• Move to Selected Position
Method
Move to
Off, On
• CH
• Mode
Analog
Pulse
Logic
Alarm
• Level
• Next Search
• Prev. Search
• Statistical Calculation
• Execute
Description
When the cursor key is moved to the uppermost part,
operation can be selected using the left/right key. After
selecting an operation, use the down key to move the
cursor to the desired character.
When you bring the cursor to a character and press
ENTER, the character is entered. After you finish
entering characters, move the cursor to OK and
then press ENTER.
Selections available
: Position, Time
: Relative time (position only)
: Absolute time (time only)
: CH1 to 200, Pulse, Logic, Alarm
: H, L
: H, L
: H, L
: Both, H, L
: Level: set numeric value (selectable only when analog or pulse)
: Off, Average, Max, Min, Peak, RMS
Operation method
