2.11 Mounting and Removing the Terminal Unit

Remove and mount terminal units as shown below.

CAUTION

Make sure the GL800's power is OFF when removing or mounting terminal units.

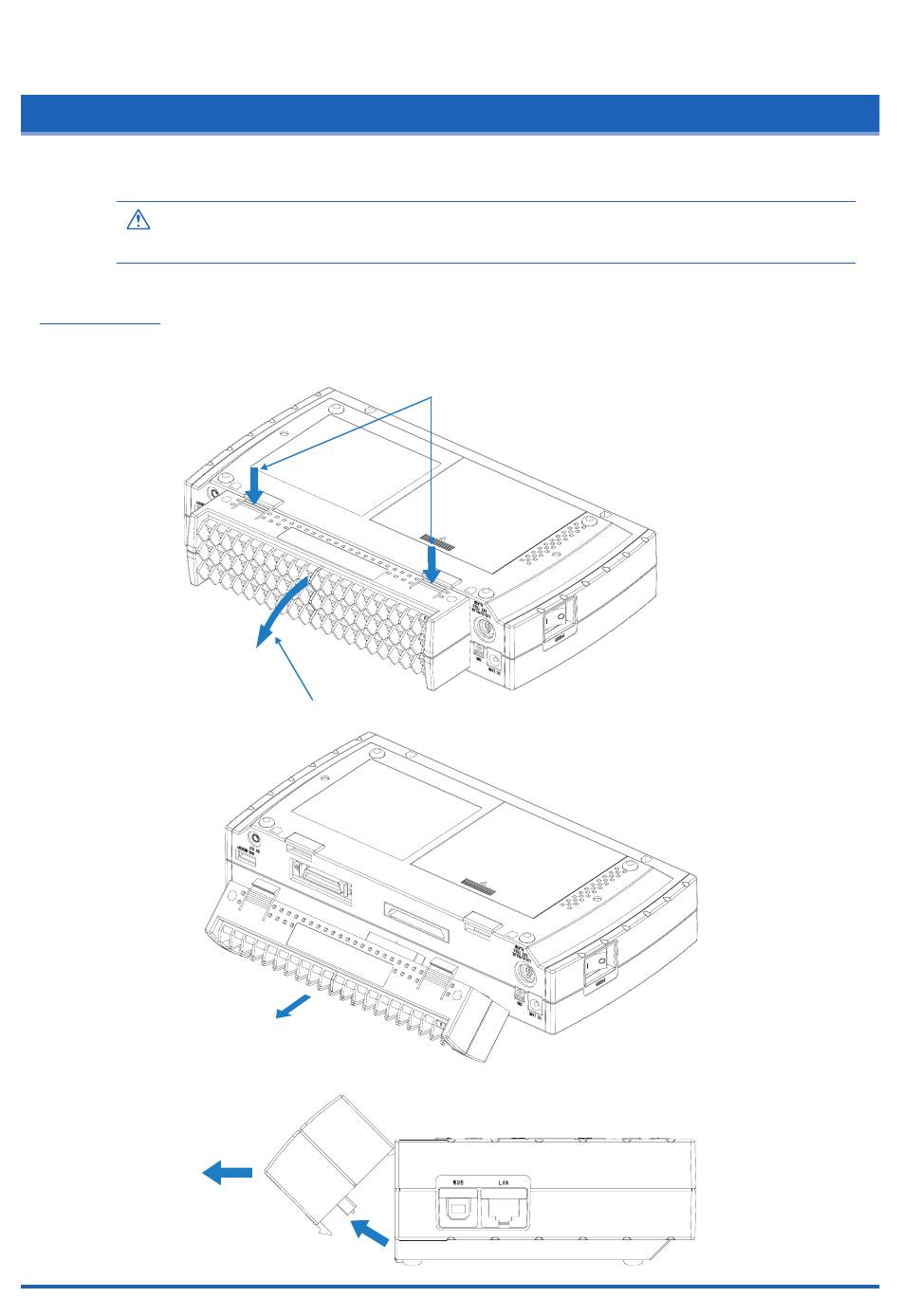

Pull the terminal unit out towards the direction indicated by the arrow while pressing the two locks at the

bottom of the unit.

(1) Press the two locks in the direction indicated by arrows.

(2) Pull the unit out towards the direction indicated by the arrow.

2-15
