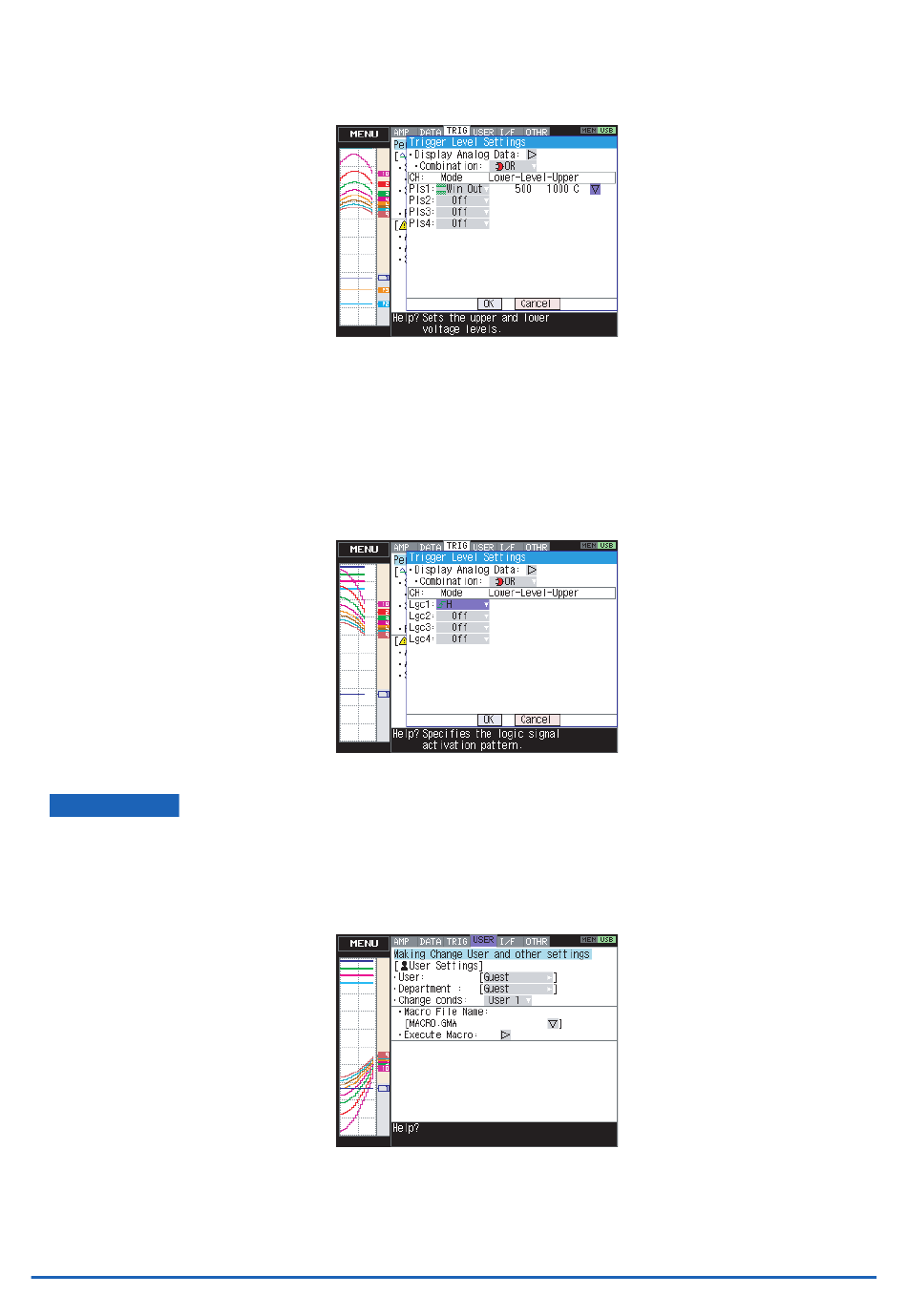

Logic
Sets the trigger/alarm conditions for logic input.
These conditions can be set when they have been enabled in the AMP settings.
USER settings
This menu is used to store setting conditions for each user. By switching between users, these
setting conditions can easily be read out.
This menu is used to specify the user name and switches user setting conditions.
You can specify that the user is a Guest, User 1 or User 2.
• Win In, Win Out: Input numeric values for the upper and lower levels.
• Off: No trigger/alarm conditions set.
• H: Enabled when the logic signal goes from High to Low.
• L: Enabled when the logic signal goes from Low to High
• User: Specify the user name. You cannot specify it as Guest.
• Department name: Specify the department name. You cannot specify
it as Guest.
