GRAPHTEC midi LOGGER GL800 User Manual page 72

Cursor Position ................... There are other functions for Cursor Move apart from the Level search
Cursor Sync ........................ Moves cursors A and B simultaneously. Cursor A is always the
Date Search ........................ This function searches within the captured data using the specified
function.
Move to First Data: Moves the cursor to the start of the data.
Move to Last Data: Moves the cursor to the end of the data.
Move to Center: Moves the cursor to the center of the data.

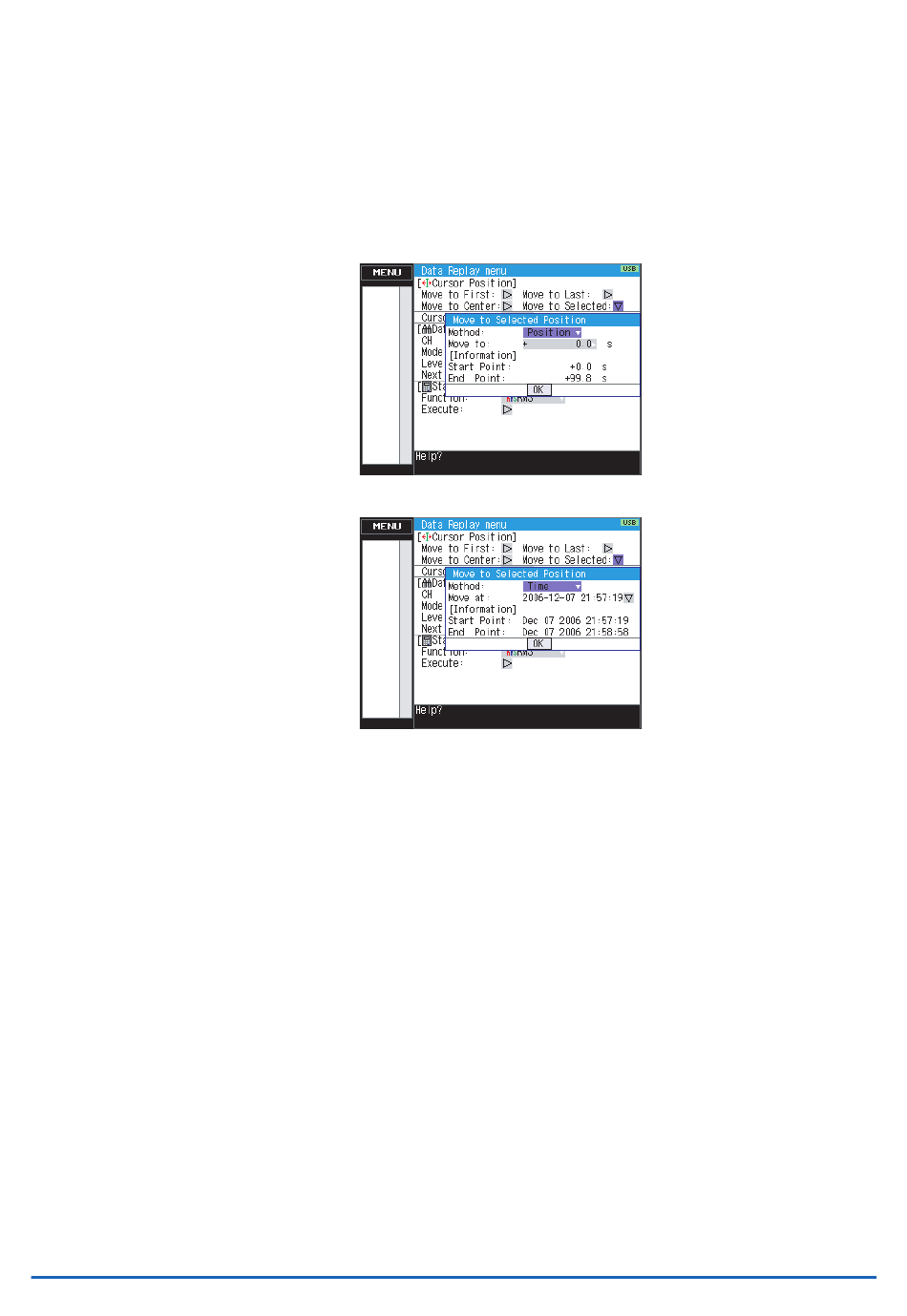

Move to Selected Position: Specify the cursor position to be moved to.
• Position: Move at the specified time from the start of measurement.
Interval until the end of measurement, in 0.1s units
• Time: Move to the specified date/time.
fulcrum.
method.
CH: Select the channel you want to search.
Mode: Select the mode used for search. The setting is changed
depending on the searched channel.
(For analog CH, pulse, and logic)
• H: Operates when the searched data rises to a specified level.
• L: Operates when the searched data falls to a specified level.
(For alarm)
• Both: Operates when a searched alarm is generated or canceled.
• H: Operates when a searched alarm is generated.
• L: Operates when a searched alarm is canceled.
Level: Sets the level to be searched for analog CH and pulse.
Settings and Measurement
3-35
