Design and function
Welding torch connection

5.11.2 Connecting the TIG TORCH BOX to the power source

When using a TIG TORCH BOX the gas supply must be connected directly to the TIG TORCH
BOX.
Gas monitoring can be configured using the Tool EWMConfig.Net.
Item Symbol
1
2
3
analog
4
• Plug the welding current lead plug into the welding current "-" connecting nipple and lock.
• Insert the control cable plug into the 19-pole connection socket (analog) and secure with a crown nut.
(The plug can only be inserted in one position.)
40
Description 0
TIG TORCH BOX
Observe additional system documents!
Connecting hose package
19-pole connection socket (analogue)
Connection socket for analogue control signals (collision protection, etc.)
Connector plug (TIG)
Welding current, minus potential

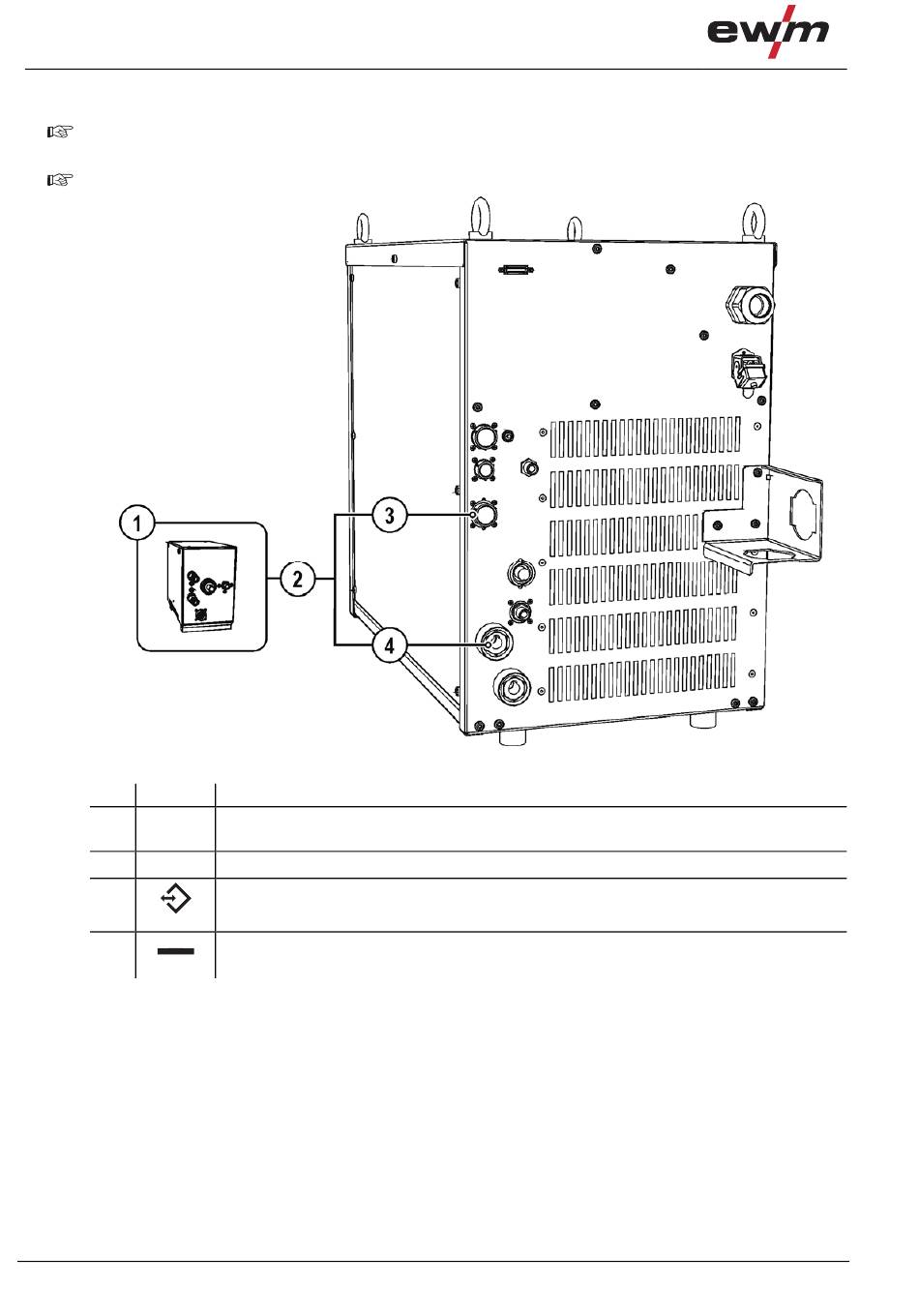

Figure 5-10
