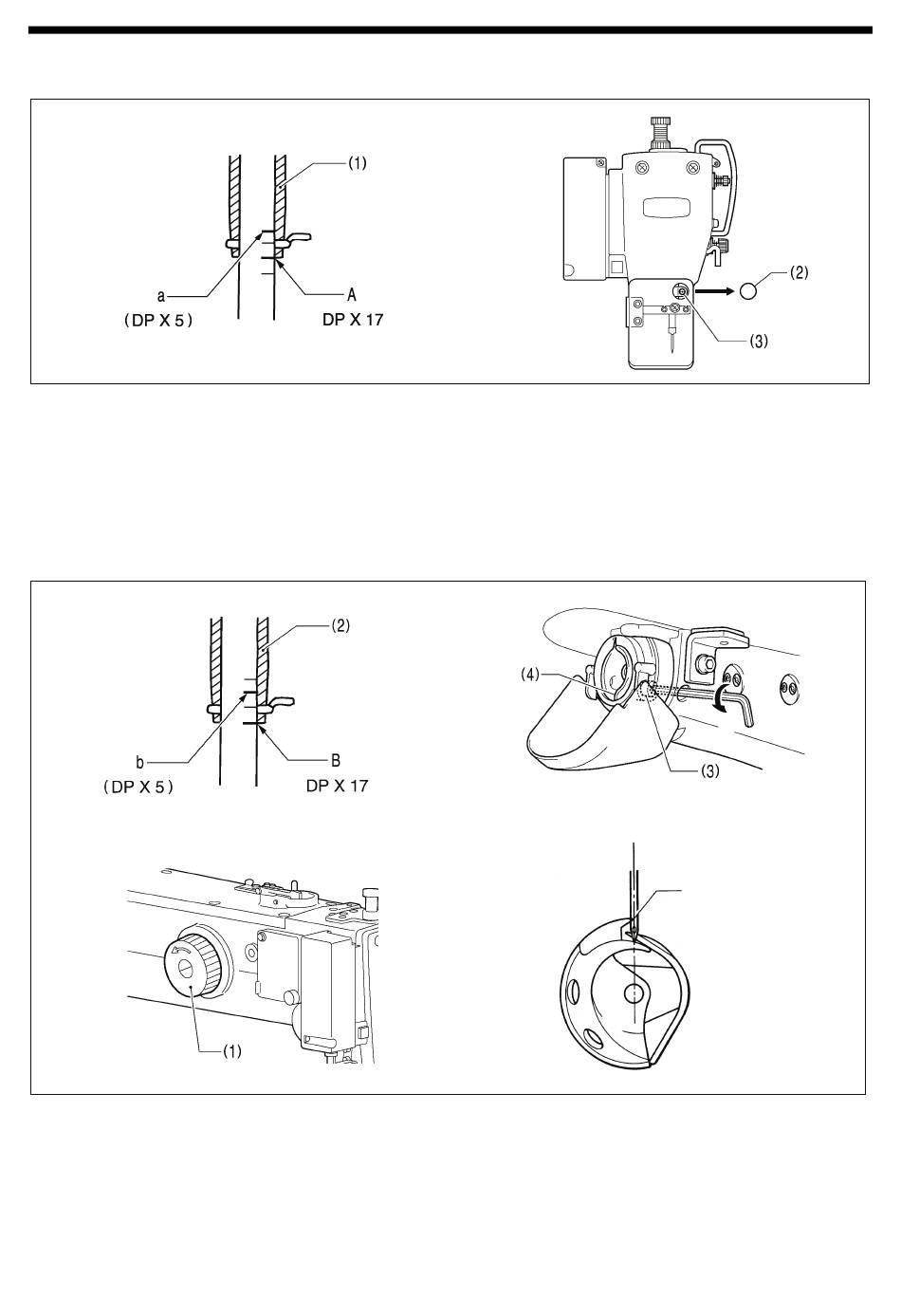

7-4. Adjusting the needle bar height

2552Q
Turn the pulley in the direction of the arrow to move the needle bar to the lowest position. Then remove the rubber plug (2),
loosen the screw (3) and then move the needle bar up or down to adjust so that the second reference line from the bottom of
the needle bar (reference line A) is aligned with the lower edge of the needle bar bush (1).
* If using a DP X 5 needle, align with the highest reference line (reference line a).

7-5. Adjusting the needle and rotary hook timing

3359B
3514B
1. Turn the pulley (1) in the direction of the arrow to raise the needle bar from the lowest position until the lowest reference
line on the needle bar (reference line B) is aligned with the lower edge of the needle bar bush (2).
* If using a DP X 5 needle, align with the reference line b which is the second reference line from the top.
2. Loosen the bolt (3).
3. Move the driver (4) sideways so that the tip of the rotary hook is aligned with the middle of the needle, and then tighten the
bolt (3).
BAS-341H, BAS-342H
7. STANDARD ADJUSTMENTS
Center of the needle
Tip
3498B
3522B
0135Q
38
