Brother BAS-341H Instruction Manual page 51

Direct drive programmable electronic pattern sewer

Instruction manual - 32 pages

3482B

4042M

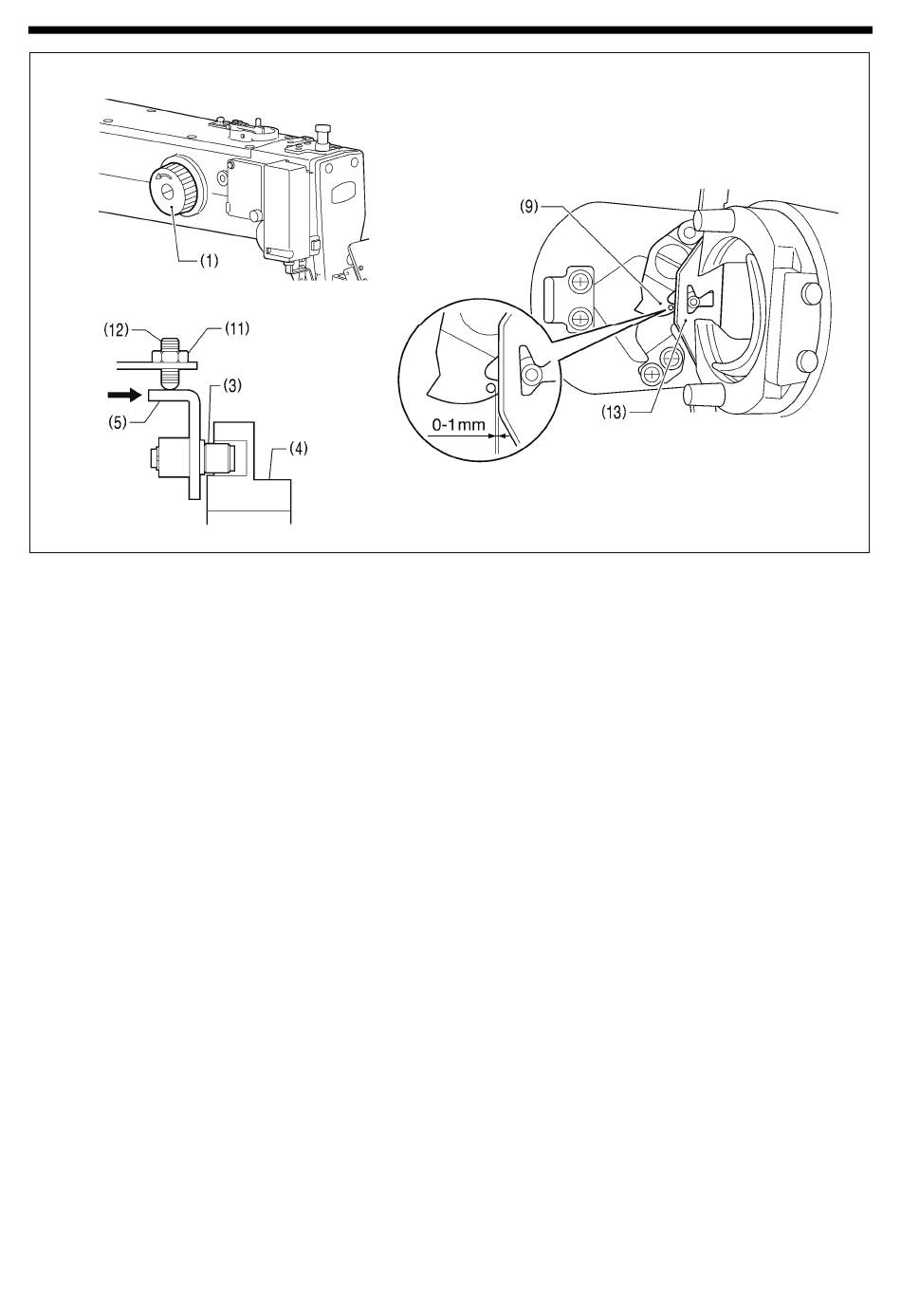

Turn the pulley (1) by hand to move the needle bar to its lowest position.

Loosen the nut (11), tighten the set screw (12) until the collar (3) is touching the inside of the groove in the thread

trimmer cam (4), and then turn it back in the counterclockwise direction by approximately 1/4 of a turn.

10.

Tighten the nut (11), and then check that the collar (3) is not touching the inside of the groove in the thread trimmer cam

(4). In addition, push the driving lever (5) by hand toward the thread trimmer cam until the collar (3) touches the groove of

the thread trimmer cam (4), and then check that the driving lever (5) returns smoothly to its original position when it is

released.

11.

Check that there is a gap of about 0 - 1 mm between the outside of the hole in the movable knife (9) and the ridge line on

the shuttle race thread guide (13).

BAS-341H, BAS-342H

7. STANDARD ADJUSTMENTS

4043M
