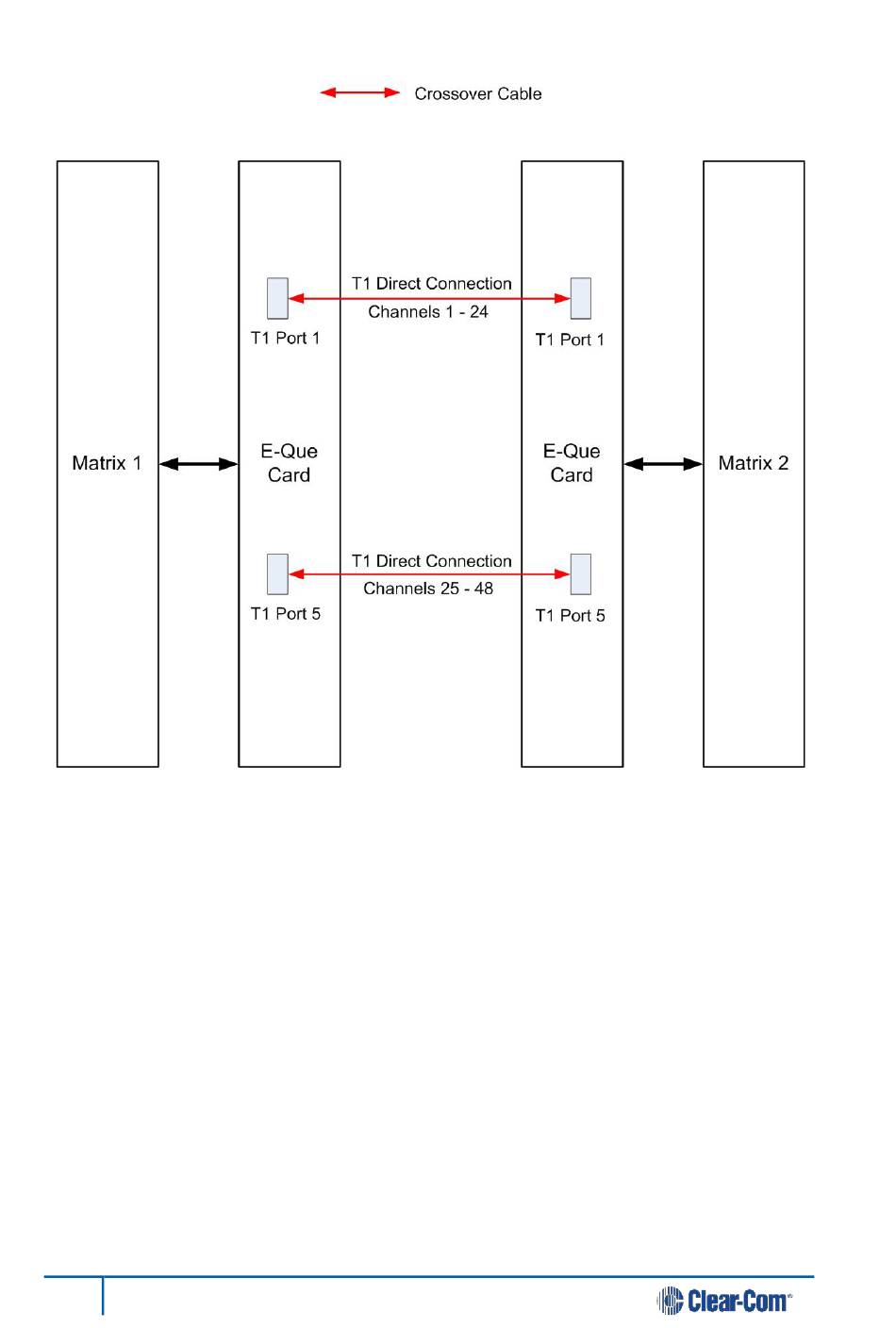

Figure 40: Matrix to Matrix T1 Trunking
T1 trunking between matrices can also be achieved over an E1 network as shown in Figure
42: T1 Trunking using an E1 Network.
In this case T1 ports 1 and 5 of the E-QUE rear card are connected using standard straight-
through CAT5 cables rather than crossover CAT5 cables.
97
Eclipse HX-Median User Guide
