Note: The above wiring diagram refers to DIG-2 and is shown as an example only (DIG-2 panels
are not compatible with the Eclipse HX-Median.
4.7

Wiring CPU card interfaces

The CPU card holds the circuitry for connecting to, and communicating with, the following
interfaces:
• An external personal computer.
• Alarm inputs and outputs.
• Eight general purpose inputs (GPIs).
• Eight general purpose outputs (GPOs or relays).
• Two separate local area network (LAN) connections for Ethernet-based
communication with a network.
• An external GPI/RLY interface.
38 Eclipse HX-Median User Guide

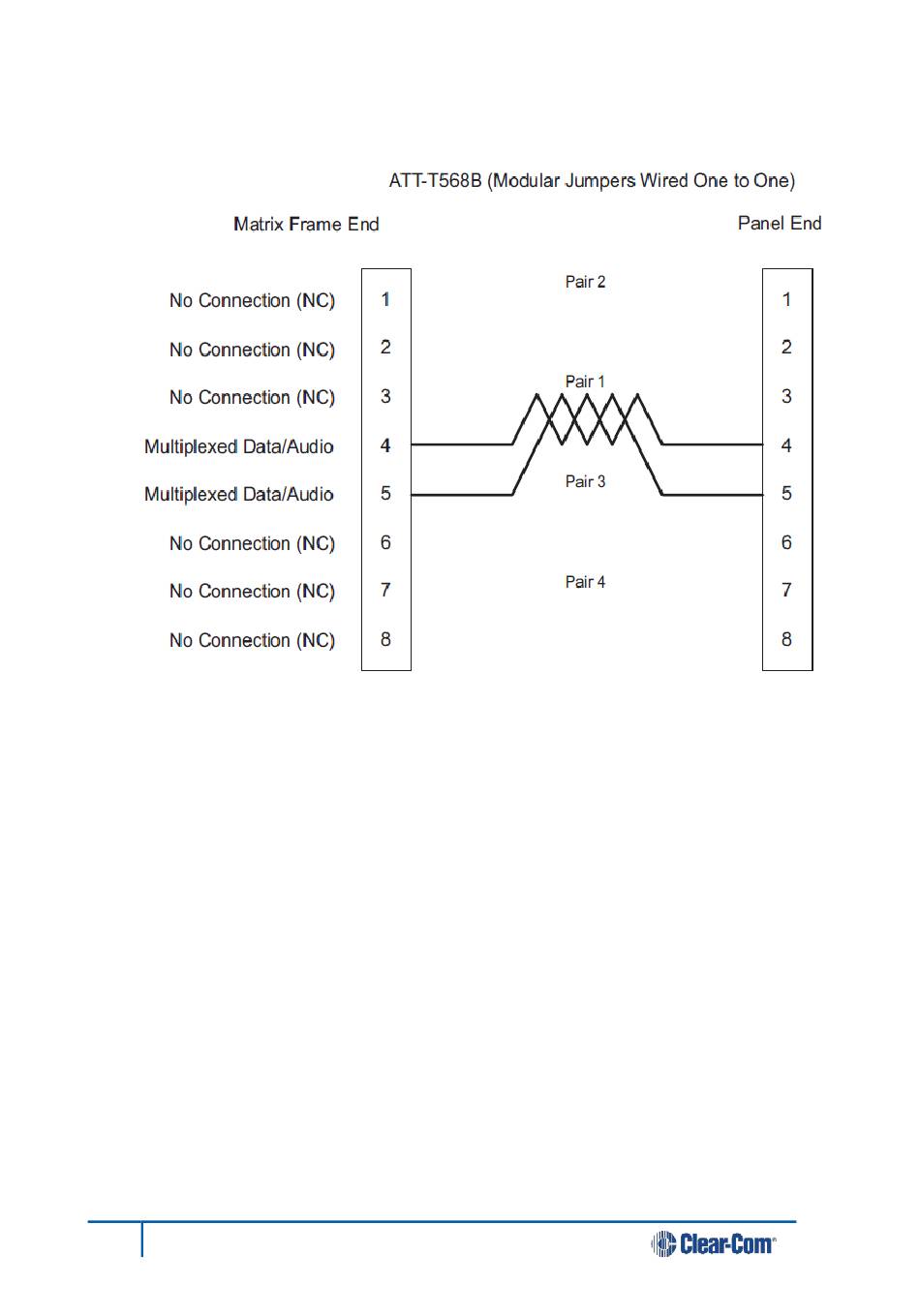

Figure 11: Wiring the matrix to a digital panel using RJ-45
