In this case E1 ports 1 and 5 of the E-QUE interface are connected using standard straight-
through CAT5 cables rather than crossover CAT5 cables.

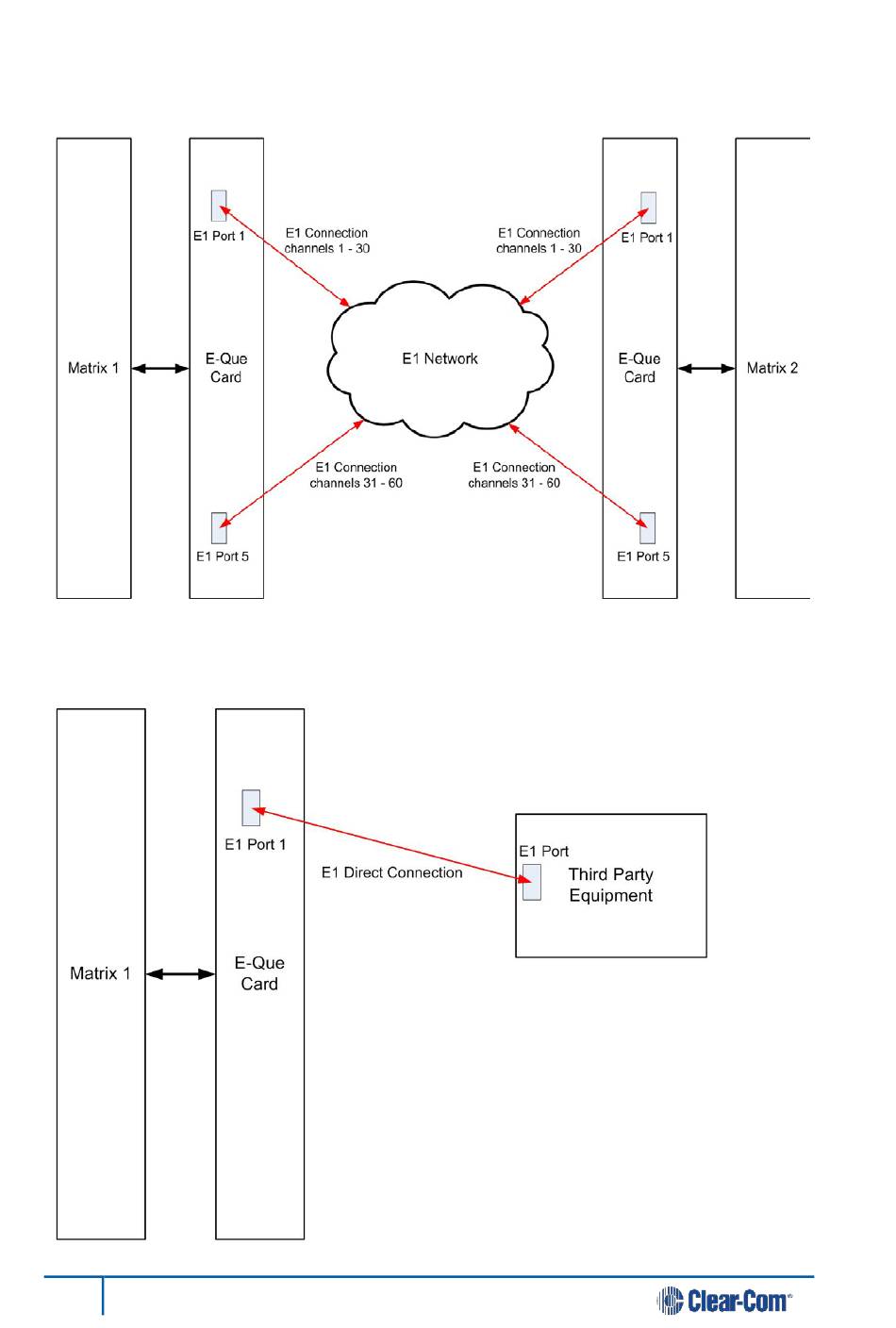

Figure 38: E1 Trunking with an E1 Network
The E-QUE interface can also be used to connect the matrix to third party equipment using
E1 port 1 or 5.
Figure 39: Matrix to Third Party E1 connection
95
Eclipse HX-Median User Guide
