• 4.9 E1 to FreeSpeak® / CellCom® / FreeSpeak II™ antenna straight cable
connection.
8.3.1

FreeSpeak/CellCom/FreeSpeak II application

The E-QUE interface cards can be configured for FreeSpeak/CellCom/FreeSpeak II use in
two modes, depending on whether antennas or splitters are to be connected.
If the E-QUE interface card is configured:
• In Antenna mode all eight E1/T1 ports can be used to connect up to eight
antennas.
• To support splitters, only two ports are active (ports 1 and 5) allowing a maximum
of two splitters to be connected. Each splitter can support up to five antennas.
When the E-QUE interface cards are used in FreeSpeak/CellCom/FreeSpeak II mode, they
cannot be connected to the antennas via third party equipment or via fiber as the antennas
require the DECT sync signal and this will not be converted by third party equipment or fiber
interfaces.
Three connections schemes are illustrated below.
91 Eclipse HX-Median User Guide

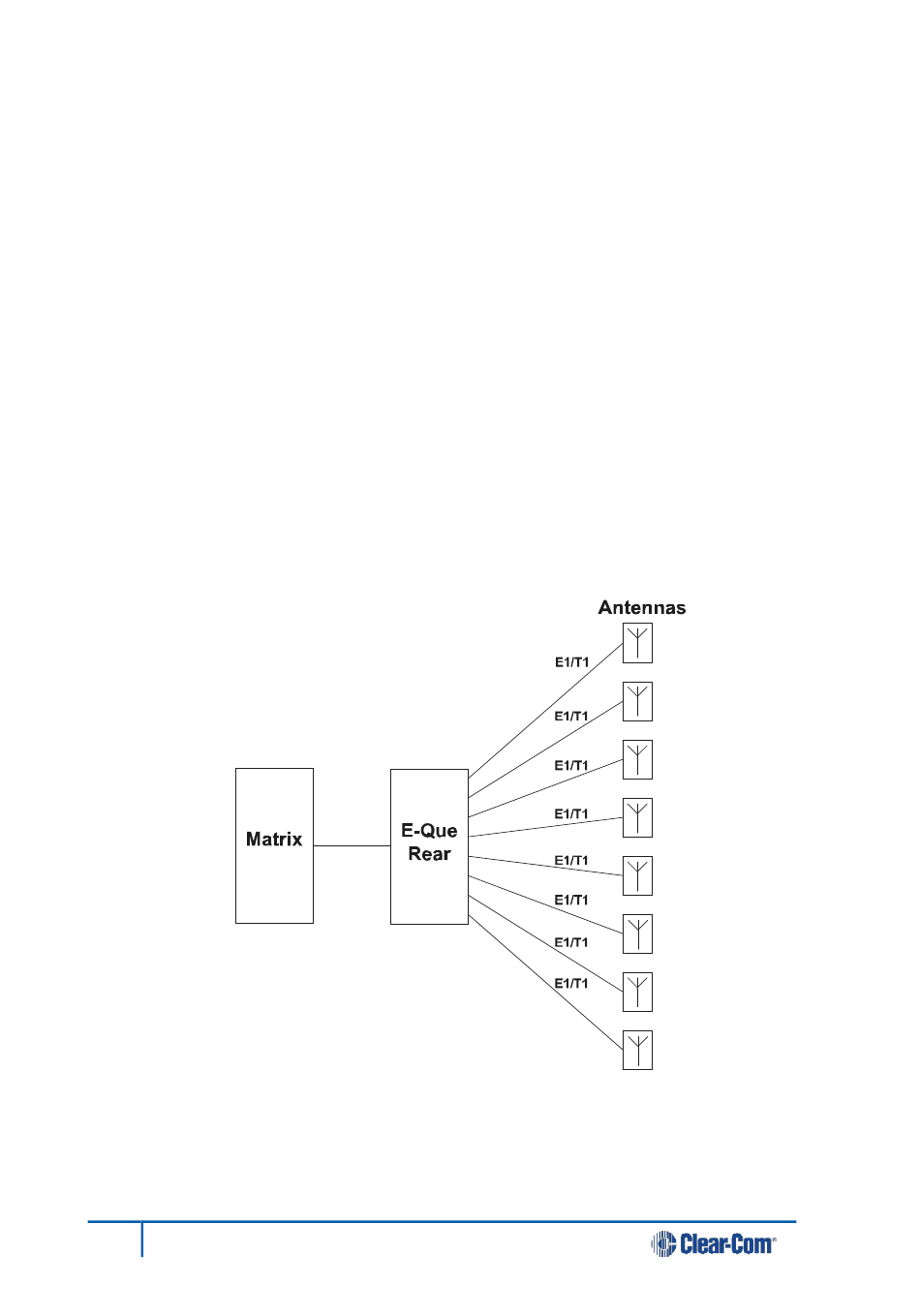

Figure 34: E-QUE card antenna connection
