eBOX638-842-FL Series User's Manual
2.2
Installation of the Express Mini Card
Step 1 Turn off the system, and unplug the power cord.

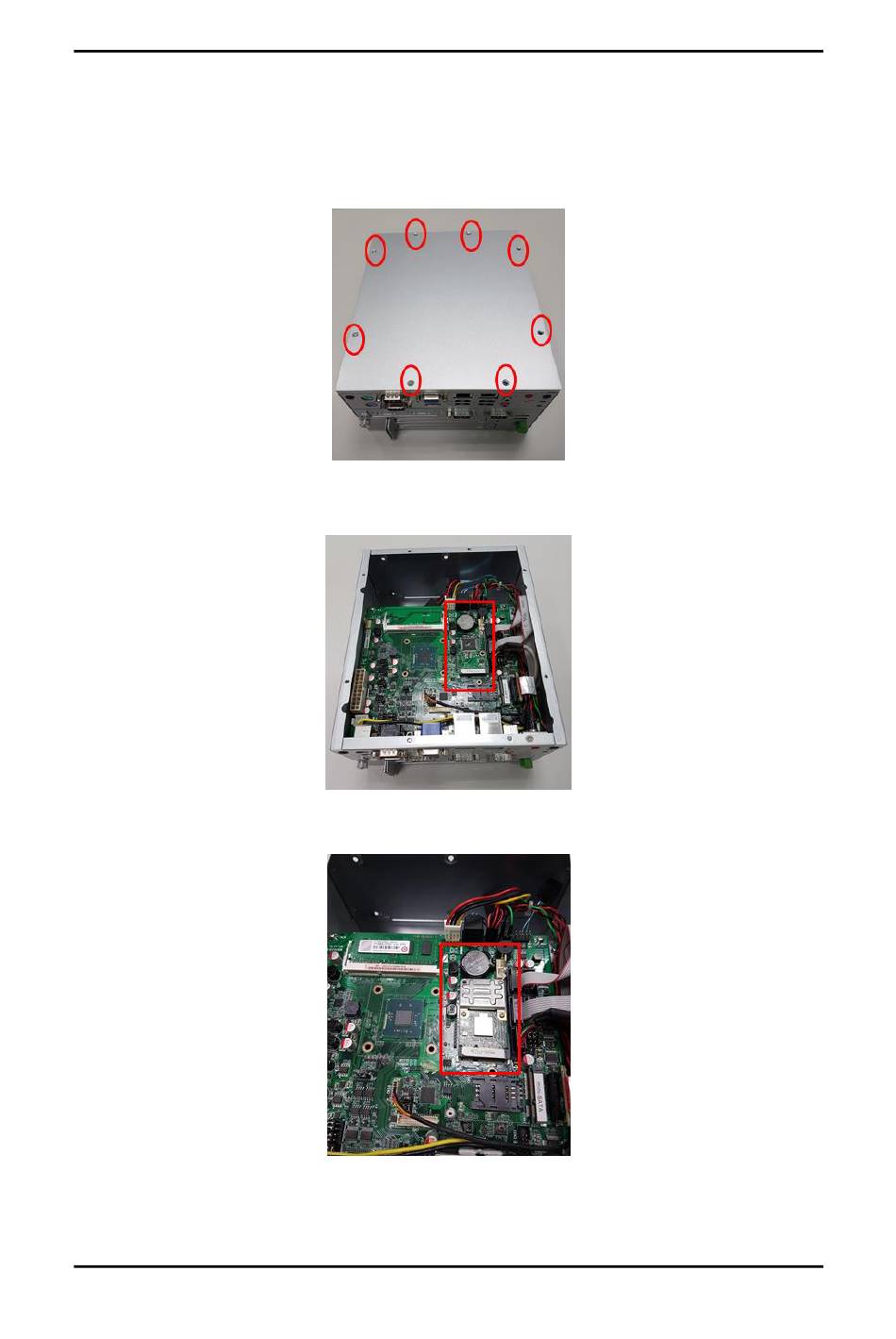

Step 2 Eight screws on the top heatsink are used to fasten the heatsink to the
chassis.
Step 3 Remove the top cover and locate Express Mini card slot within the red
line marked.
Step 4 Slide Mini Card into Mini Card slot with caution, and fasten screw of
Express Mini Card.
Step 5 Assembly the top cover back and fasten all screws.
10
Hardware Installation
