eBOX638-842-FL Series User's Manual
2.5
Installation of the Flexible IO modules
The eBOX638-842 provides an optional window for customer add flexible I/O
modules, according to different modules , please follow the below
Instructions:
-AX92902 LAN Module (RJ45 connector*1)
-AX92904 DIO Module (DB44 connector*1)
-AX92903 CAN Bus/CAN Open Module (DB9 connector*1)
-AX92906 COM Module (DB9 connector*2)

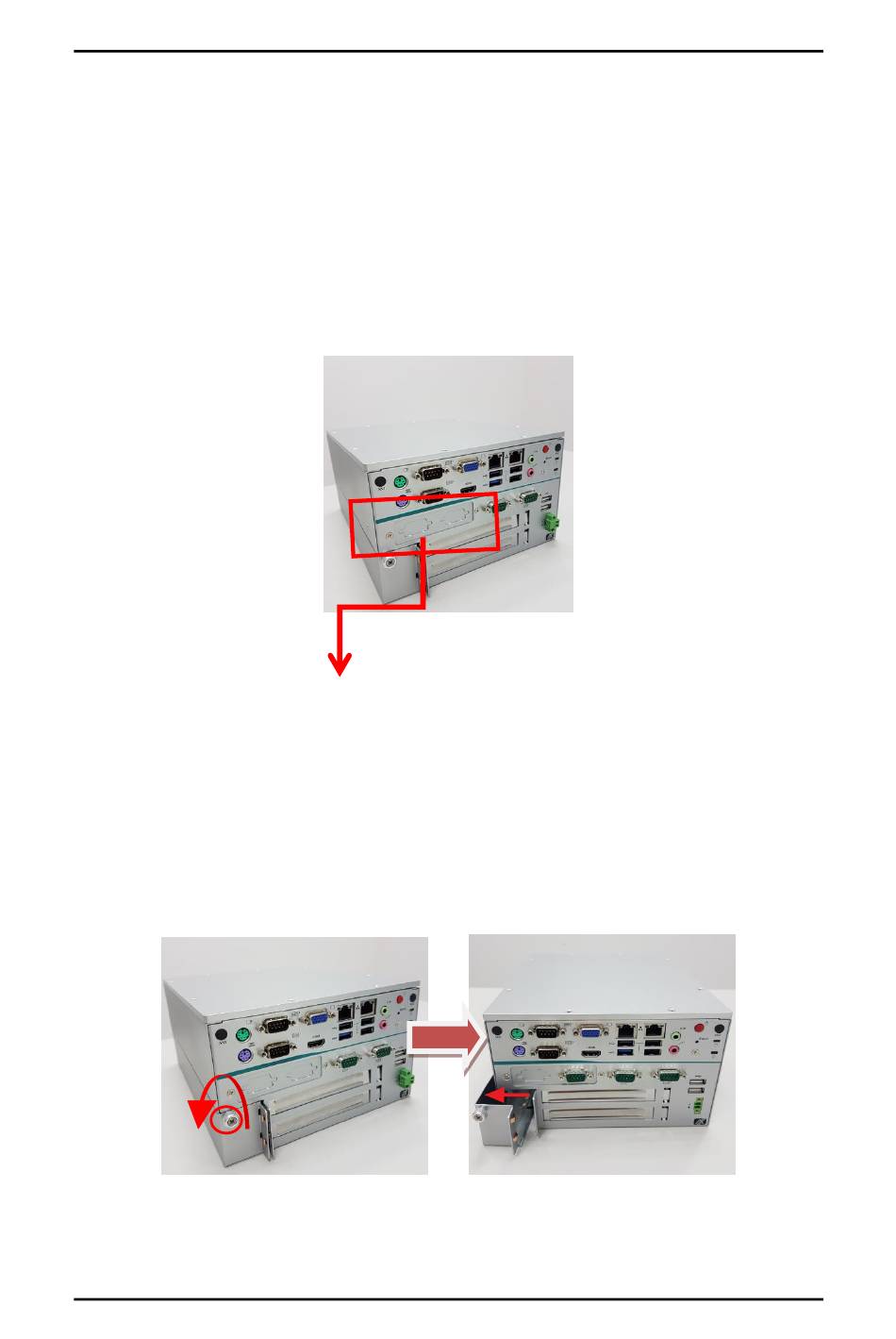

Flexible IO window
(Default: 2 x DB9 half cut bracket)
Step 1 Turn off the system.
Step 2 Unplug the power-cord.
Step 3 Turning leftward to loosen the thumb screw as marked and then pull the lower
left cover out.
Hardware Installation
13
