eBOX638-842-FL Series User's Manual

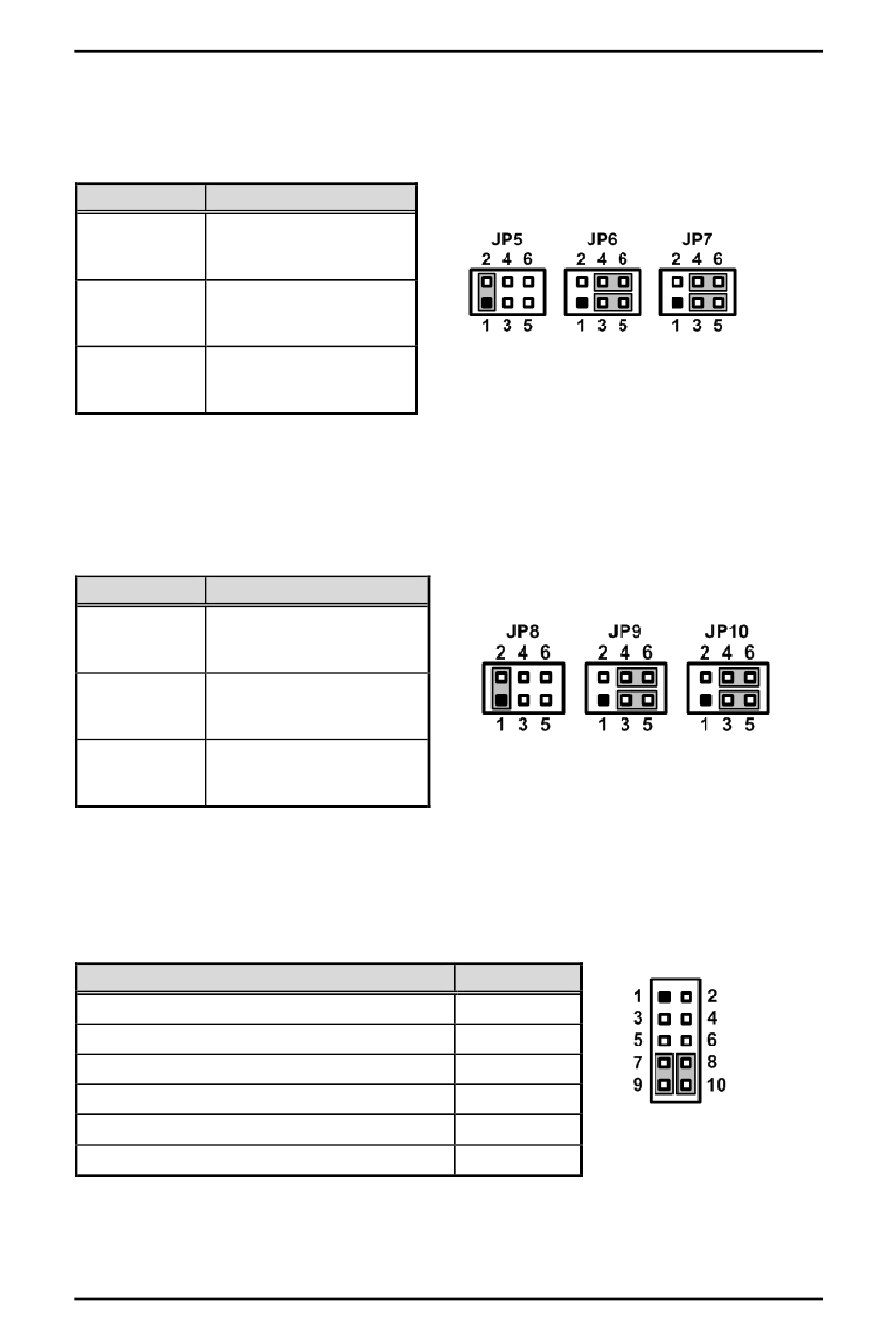

3.2.3 COM 1 RS-232/422/485 Mode Select (JP5, JP6, JP7)

Use these jumpers (3x2-pin p=2.54mm) to set COM 1 port to operate as RS-232, RS-422 or
RS-485 communication mode.
Functions Settings
JP5 1-2 close
RS-232
mode
JP6 3-5, 4-6 close
(Default)
JP7 3-5, 4-6 close
JP5 3-4 close
RS-422
JP6 1-3, 2-4 close
mode
JP7 1-3, 2-4 close
JP5 5-6 close
RS-485
JP6 1-3, 2-4 close
mode
JP7 1-3, 2-4 close

3.2.4 COM 2 RS-232/422/485 Mode Select (JP8, JP9, JP10)

Use these jumpers (3x2-pin p=2.54mm) to set COM 2 port to operate as RS-232, RS-422 or
RS-485 communication mode.
Functions Settings
JP8
RS-232
mode
JP9
(Default)
JP10 3-5, 4-6 close
JP8
RS-422
JP9
mode
JP10 1-3, 2-4 close
JP8
RS-485
JP9
mode
JP10 1-3, 2-4 close

3.2.5 COM 3 Data/Power Select (JP11)

The COM 3 port has +5V/+12V power capability on DCD and +5V/+12V on RI by setting this
5x2-pin p=2.54mm jumper.
Functions
Power: Set COM3 pin 1 to +12V level
Power: Set COM3 pin 1 to +5V level
Data: Set COM3 pin 1 to DCD# (Default)
Power: Set COM3 pin 8 to +12V level
Power: Set COM3 pin 8 to +5V level
Data: Set COM3 pin 8 to RI# (Default)
20
1-2 close
3-5, 4-6 close
3-4 close
1-3, 2-4 close
5-6 close
1-3, 2-4 close
Settings
1-3 close
3-5 close
7-9 close
2-4 close
4-6 close
8-10 close
Jumper & Connector Settings
