eBOX638-842-FL Series User's Manual

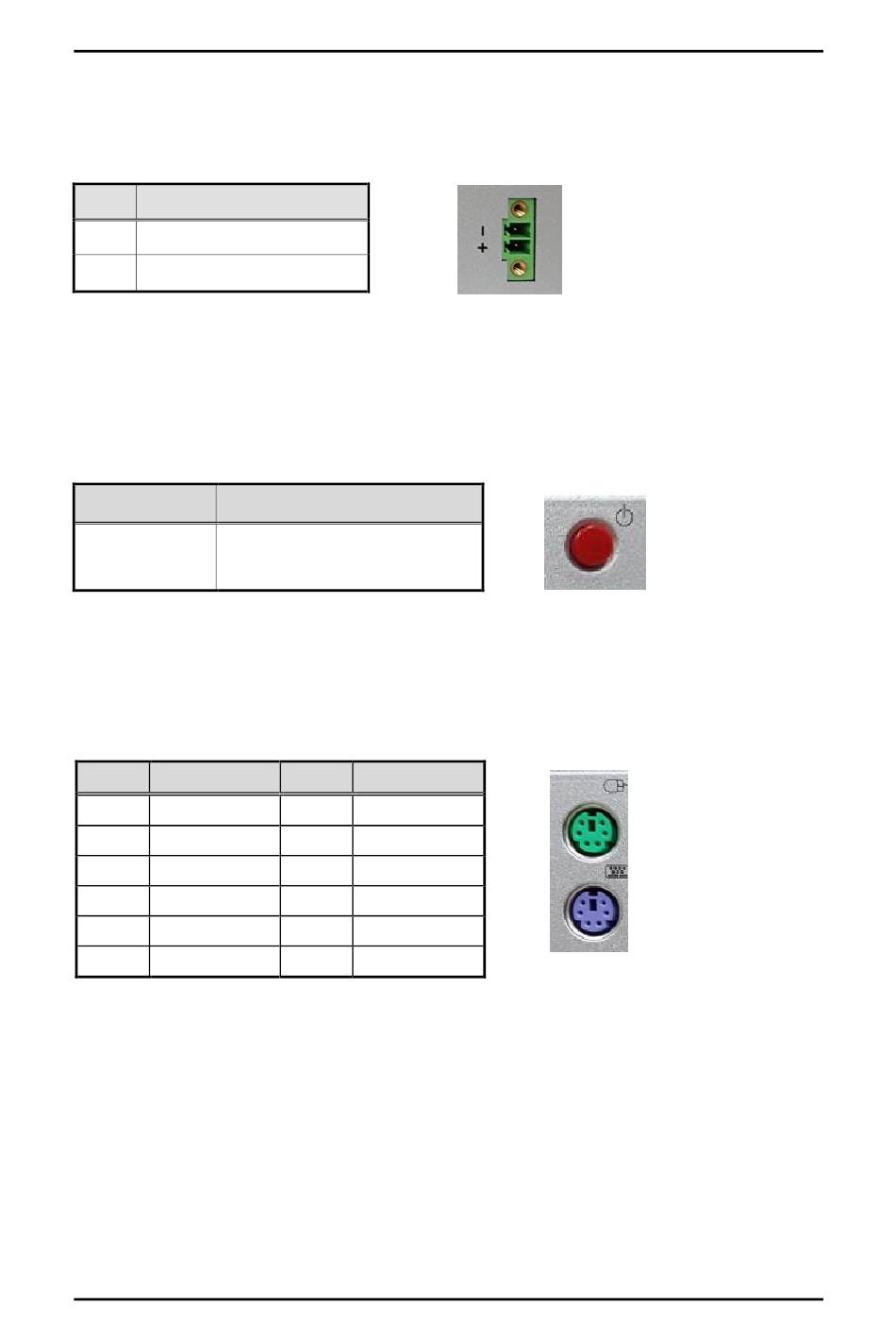

3.3.1 DC-in Phoenix Power Connector
The system supports a wide range Phoenix DC-in connector for system power input.
Pins
Signals
1
DC+
2
DC-
3.3.2 ATX Power On/OFF Button
The ATX power button is on the I/O side. It can allow users to control eBOX638-842-FL power
on/off.
Functions
Power On/Off
3.3.3 PS/2 Keyboard and Mouse Connector (CN16)
The board has two 6-pin mini-DIN PS/2 connectors; green for mouse and purple for keyboard.
Pins
Signals
1
K/B Data
2
NC
3
GND
4
+5V
5
K/B CLK
6
NC
22
Descriptions
Turn on/off system
Pins
Signals
7
M/S Data
8
NC
9
GND
10
+5V
11
M/S CLK
12
NC
Jumper & Connector Settings
