eBOX638-842-FL Series User's Manual

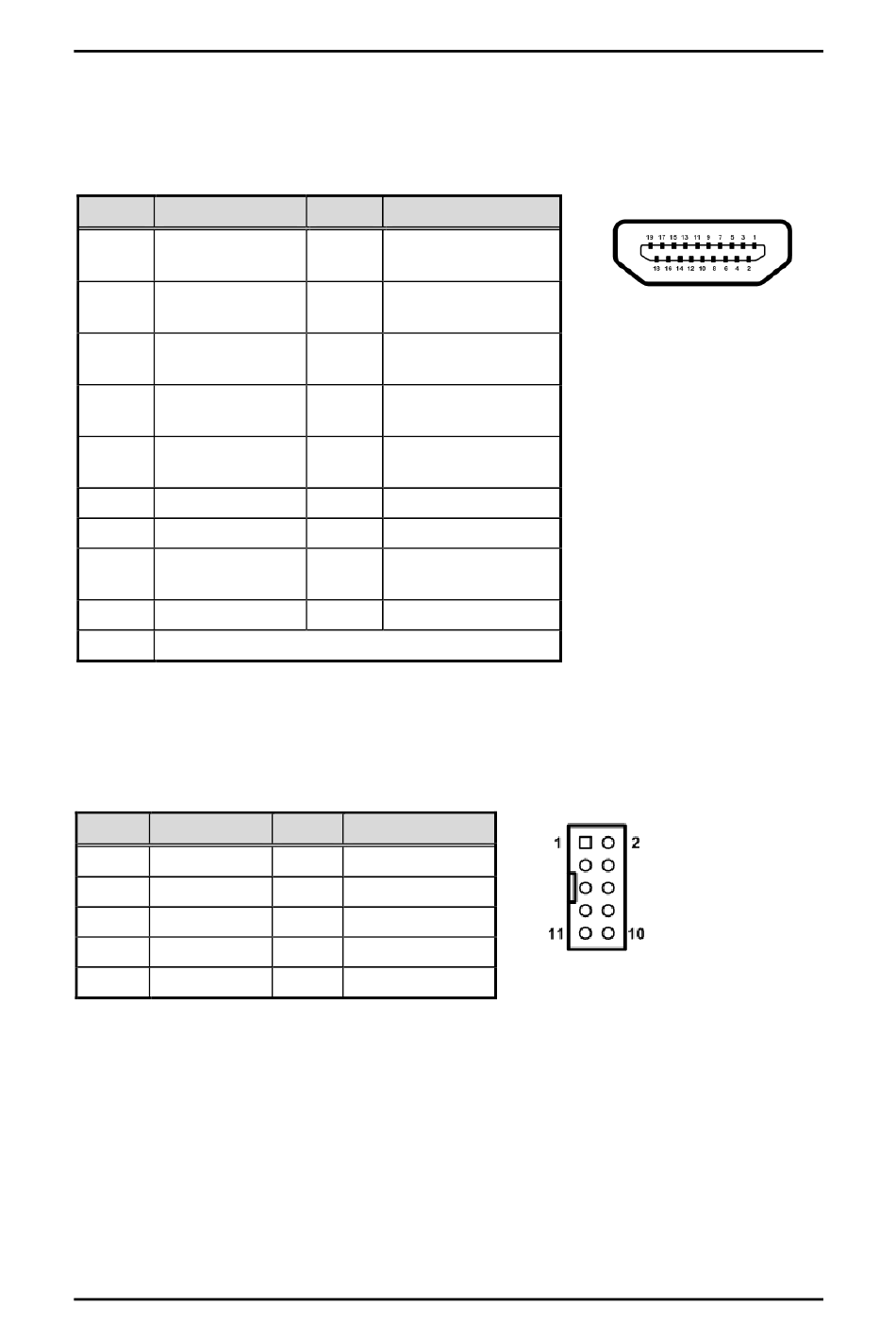

3.3.7 HDMI Connector (CN29)

The HDMI (High-Definition Multimedia Interface) interface is available through this connector.
Pins Signals
HDMI
1
OUT_DATA2+
HDMI
3
OUT_DATA2-
5 GND
HDMI
7
OUT_DATA0+
HDMI
9
OUT_DATA0-
11 GND
13 N.C.
HDMI
15
OUT_SCL
17 GND
19 HDMI_HTPLG
3.3.8

Internal USB Header (CN3)

This is USB 2.0 header (5x2-pin p=2.54mm).
Pins Signals
1 +5V
3 USB1-
5 USB1+
7 GND
9 N/C
26
Pins Signals
GND
2
4 HDMI
OUT_DATA1+
6 HDMI
OUT_DATA1-
8 GND
10 HDMI OUT_Clock+
12 HDMI OUT_Clock-
14 N.C.
16 HDMI OUT_SDA
18 +5V
Pins Signals
2 +5V
4 USB2-
6 USB2+
8 GND
10 N/C
19 1
18 2
Jumper & Connector Settings
