eBOX638-842-FL Series User's Manual
SECTION 3
JUMPER & CONNECTOR SETTINGS
Proper jumper settings configure the eBOX638-842-FL to meet various application needs.
Hereby all jumpers settings along with their default settings are listed for devices onboard.
3.1

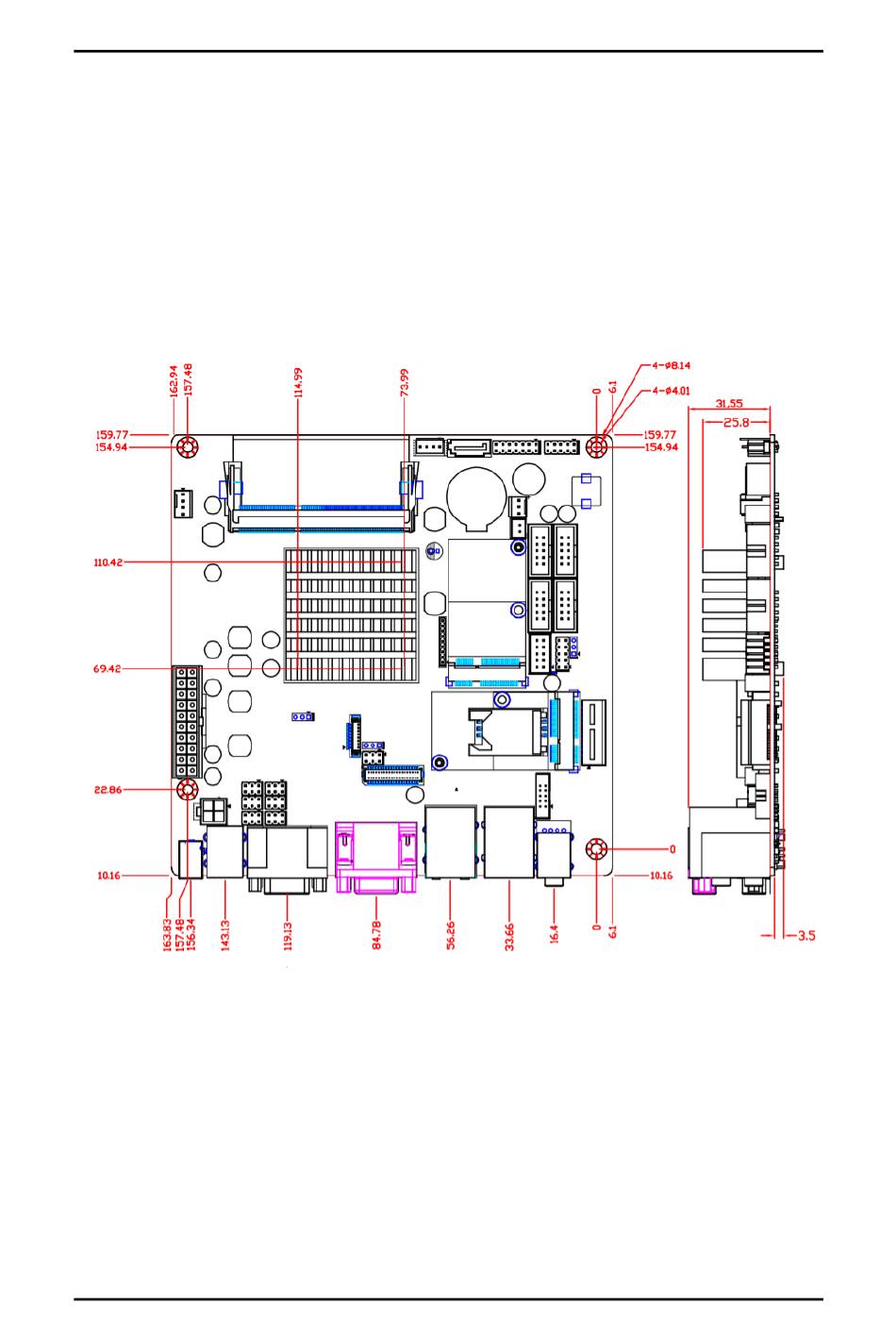

Board Layout
Jumper & Connector Settings
15
