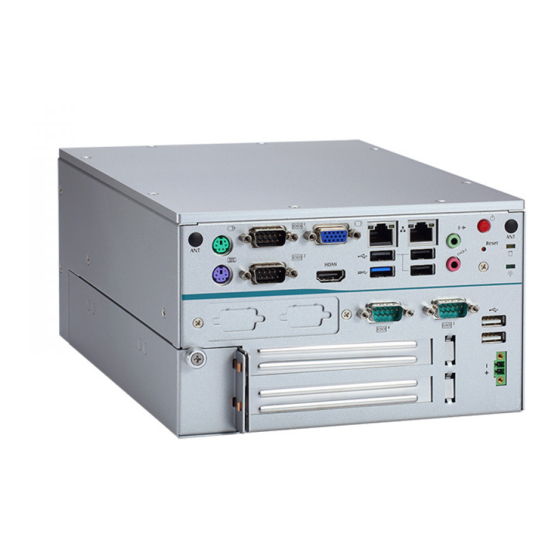

AXIOMTEK eBOX638-842-FL Series Quick Installation Manual

Embedded system

Hide thumbs Also See for eBOX638-842-FL Series:

Download this manual

Installation of the PCI Card

Step 1 Turn off the system and unplug the power cord.

Step 2 Unplug the power-cord.

Step 3 Turning counterclockwise to loosen the thumb screw as

marked and then pull the lower left cover out.

Step 4 Identify the location of the PCI slot as below red marked.

Step 5 Inset the PCI card and put the side cover back.

Version A1 Aug 2018

Printed in Taiwan

94160638020E

eBOX638-842-FL Quick Installation Guide

Packing List

System Unit x 1

DVD/CD x 1 (for Driver & Manual)

Quick Installation Guide x 1

Foot Pad x4

Screws Pack x 1

2-pin terminal block connector x 1

Optional SSD/HDD

Optional Wall-mount Bracket

Optional Mini Card Modules

Optional DRAM

Do not try to apply power to the system if any damaged components.

Dimensions

Version A1 Aug 2018

Printed in Taiwan

94160638020E
