eBOX638-842-FL Series User's Manual
1.4

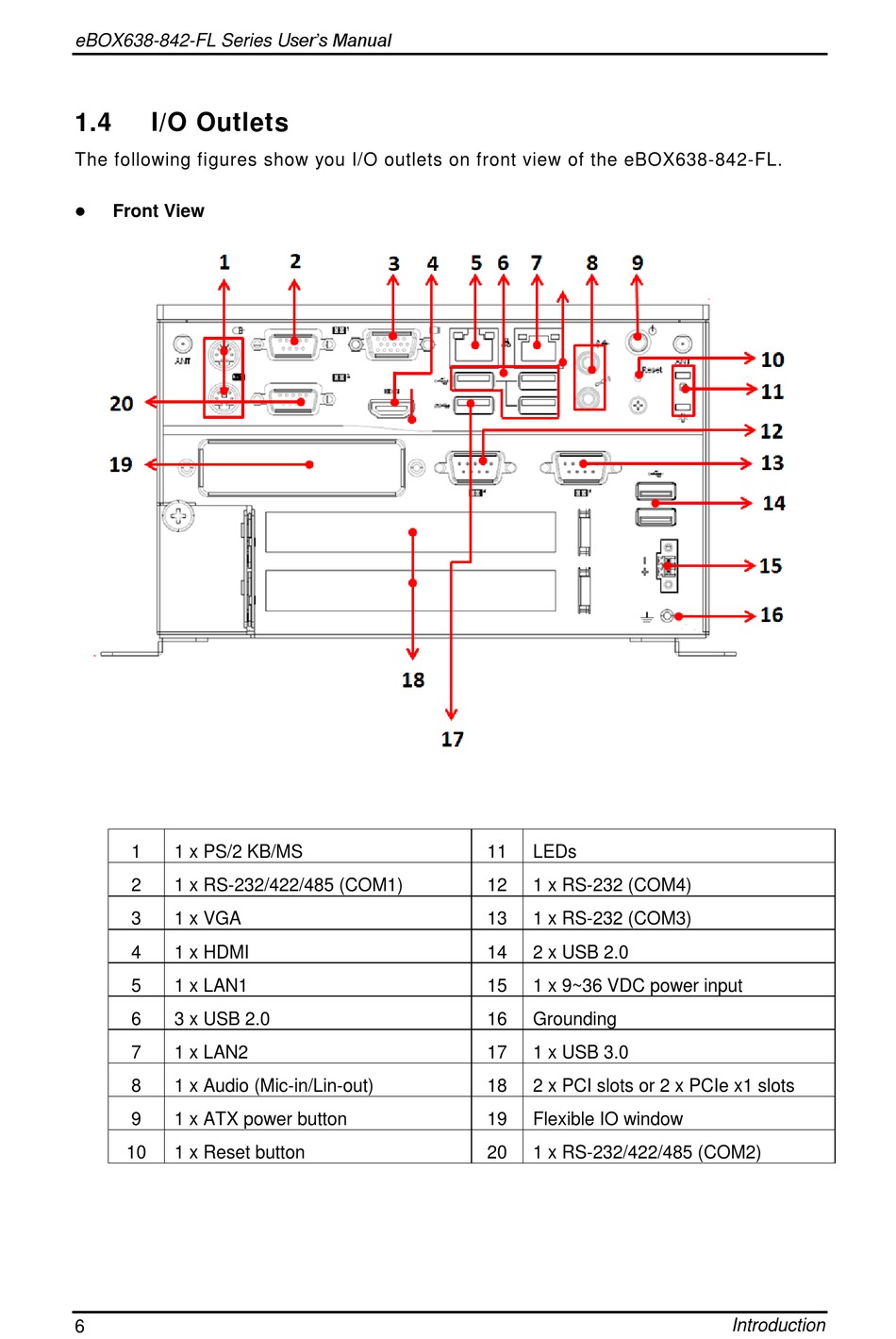

I/O Outlets

The following figures show you I/O outlets on front view of the eBOX638-842-FL.
 Front View
1 1 x PS/2 KB/MS
2 1 x RS-232/422/485 (COM1)
3 1 x VGA
4 1 x HDMI
5 1 x LAN1
6 3 x USB 2.0
7 1 x LAN2
8 1 x Audio (Mic-in/Lin-out)
9 1 x ATX power button
10 1 x Reset button
6
11 LEDs
12 1 x RS-232 (COM4)
13 1 x RS-232 (COM3)
14 2 x USB 2.0
15 1 x 9~36 VDC power input
16 Grounding
17 1 x USB 3.0
18 2 x PCI slots or 2 x PCIe x1 slots
19 Flexible IO window
20 1 x RS-232/422/485 (COM2)
