tBOX100-838-FL Series User's Manual
2.2

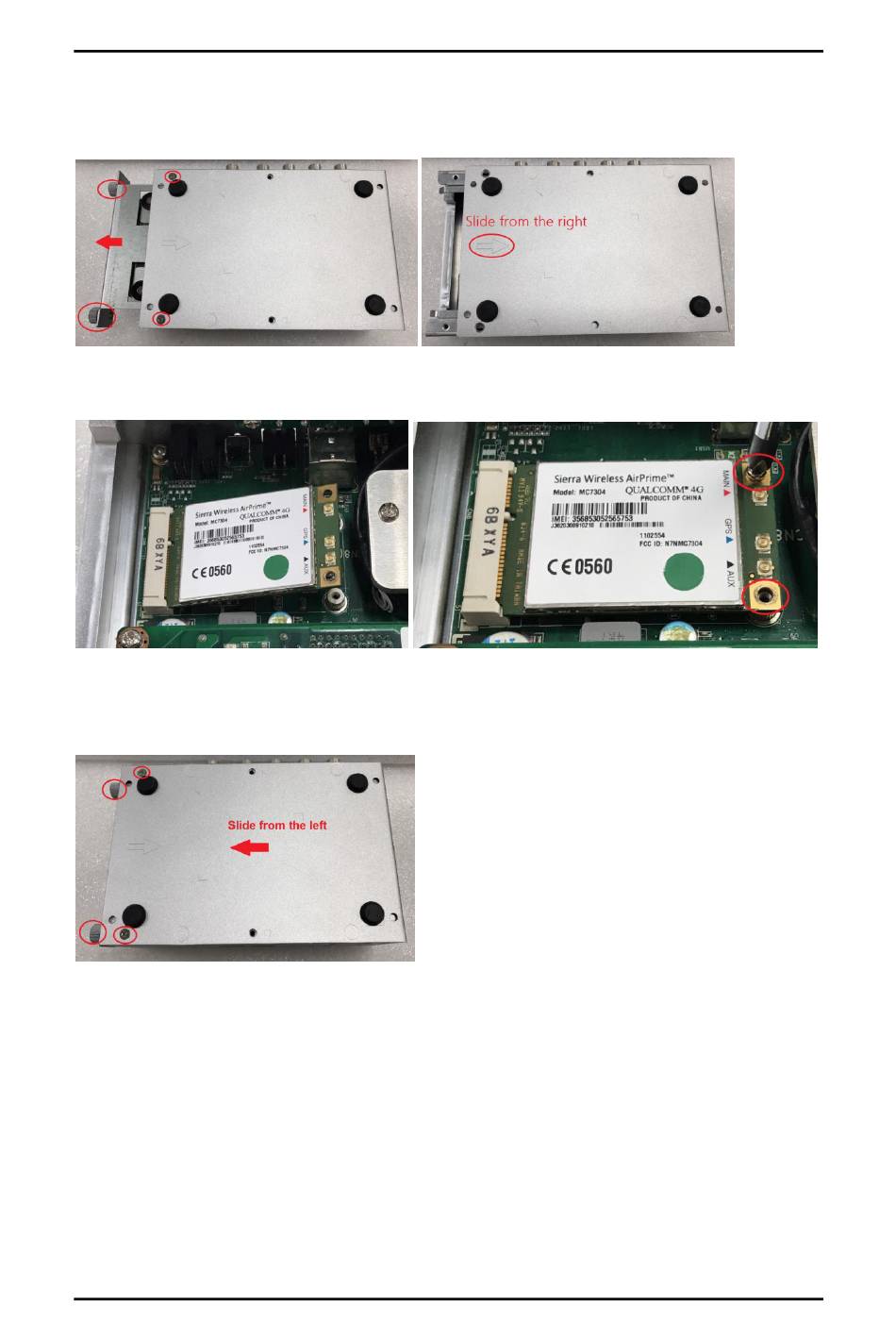

PCI Express mini card and SIM card Installation
Step 1
Turn off the system, and unplug the power cord. Loosen the screws as
shown.
Step 2
Install the module card and fasten screw as shown .
Step 3
Fasten 4x screw on bottom cover as shown.
8
Hardware Installation
