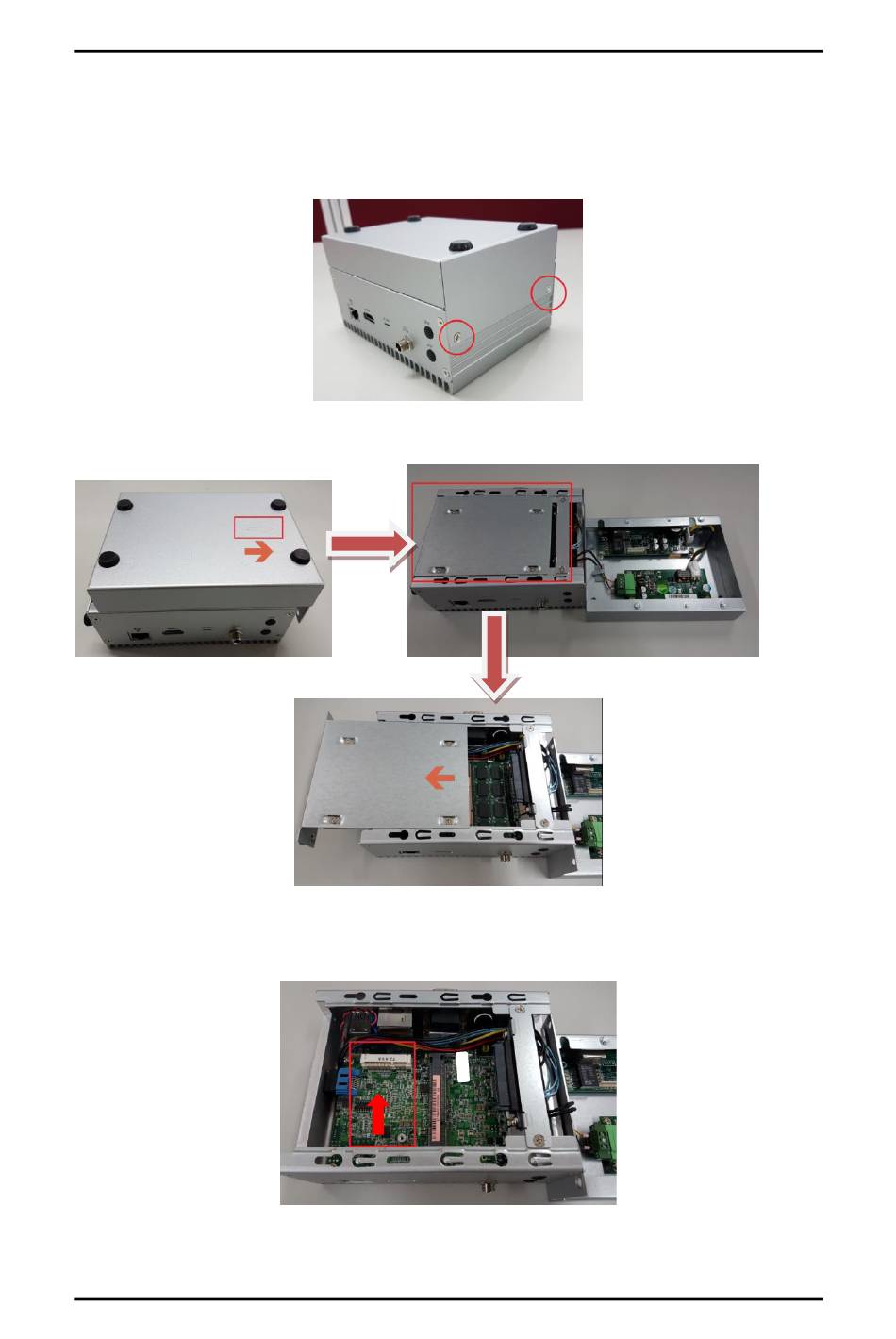

Installation of Express Mini Card
Step 1 Turn off the system, and unplug the power adaptor.
Step 2
Turn the system upside down to locate screws at the side of the
system, and then loosen two screws.
Step 3
Remove the bottom cover (notice the direction mark) and HDD cover.
Step 4 Locate the mini card slot location, and please follow your requirement
to connect PCI Express Mini Card module, EX: WIFI, mSATA and GPS.
Hardware Installation
eBOX565-312-FL Series User's Manual
