Section 2 Hardware Installation; Installation Of The Memory Module - AXIOMTEK eBOX638-842-FL-2 PCI User Manual

The eBOX638-842-FL is convenient for your various hardware configurations, such as
Memory Module, HDD (Hard Disk Drive), SSD (Solid State Drive), PCI Express mini Card and
PCI/PCIe x1 slot. Section 2 contains guidelines for hardware installation.
2.1

Installation of the Memory Module

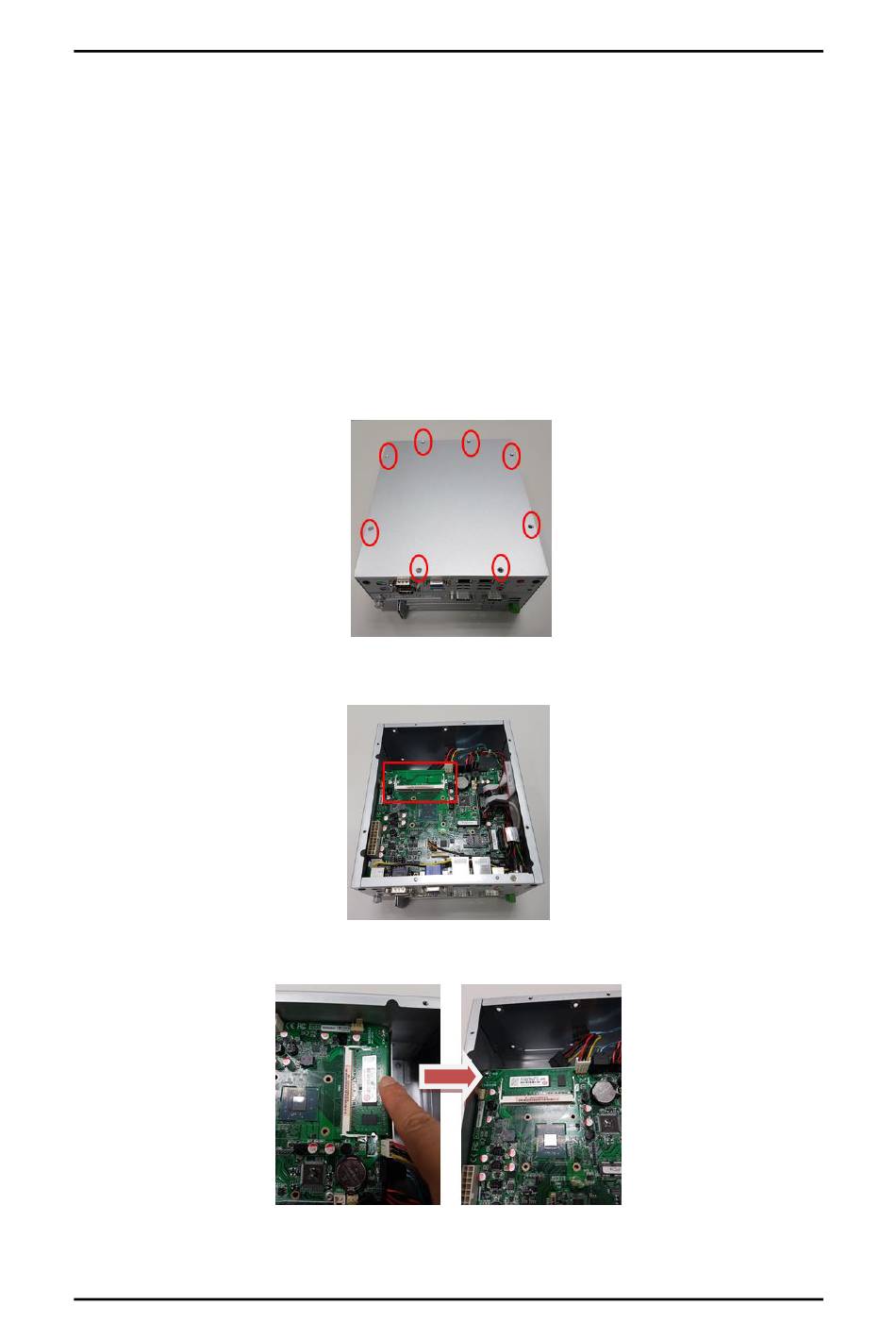

Step 1 Turn off the system, and unplug the power cord.
Step 2 Eight screws on the top heatsink are used to fasten the heatsink to the
chassis.
Step 3 Open the top cover and located the dual SO-DIMM sockets on main
board.
Step 4 Insert a gold colored contact into the socket and push the module two
end latches till locked.
Step 5 Put the top cover and fasten all screws back onto the system.
