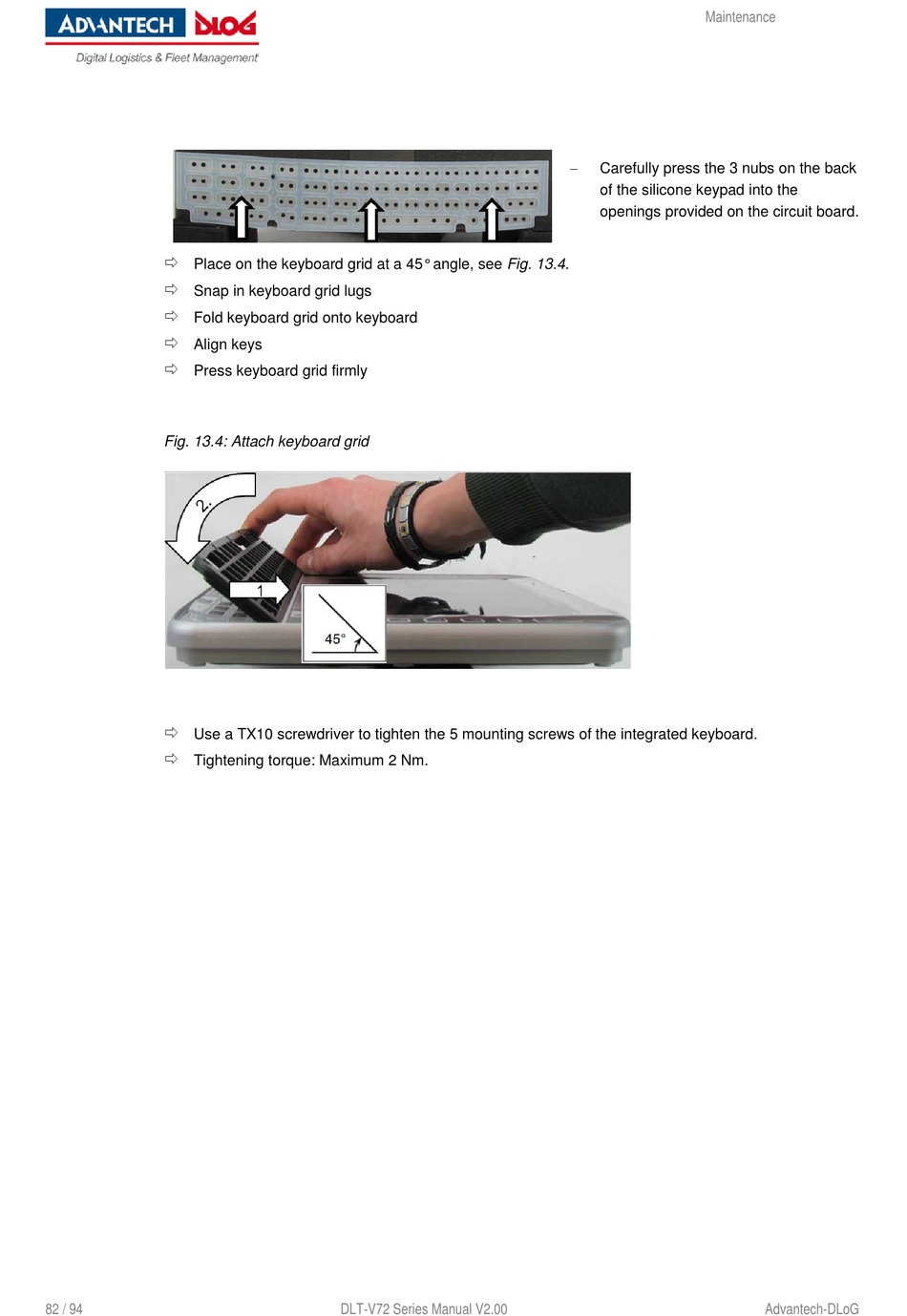

Place on the keyboard grid at a 45° angle, see Fig. 13.4.

Snap in keyboard grid lugs

Fold keyboard grid onto keyboard

Align keys

Press keyboard grid firmly

Fig. 13.4: Attach keyboard grid


Use a TX10 screwdriver to tighten the 5 mounting screws of the integrated keyboard.

Tightening torque: Maximum 2 Nm.
82 / 94 DLT-V72 Series Manual V2.00
Maintenance
−
Carefully press the 3 nubs on the back
of the silicone keypad into the
openings provided on the circuit board.
