Optional equipment
12.7.

GPS receiver (optional)

With the optional GPS receiver the DLT-V72 can be used for GPS navigation.
The GPS receiver has an integrated antenna for position data of the Global Positioning System (GPS)
and communicates with the DLT-V72 via USB interface. Installation information is included with the GPS
receiver. We recommend using only a GPS receiver approved by Advantech-DLoG.

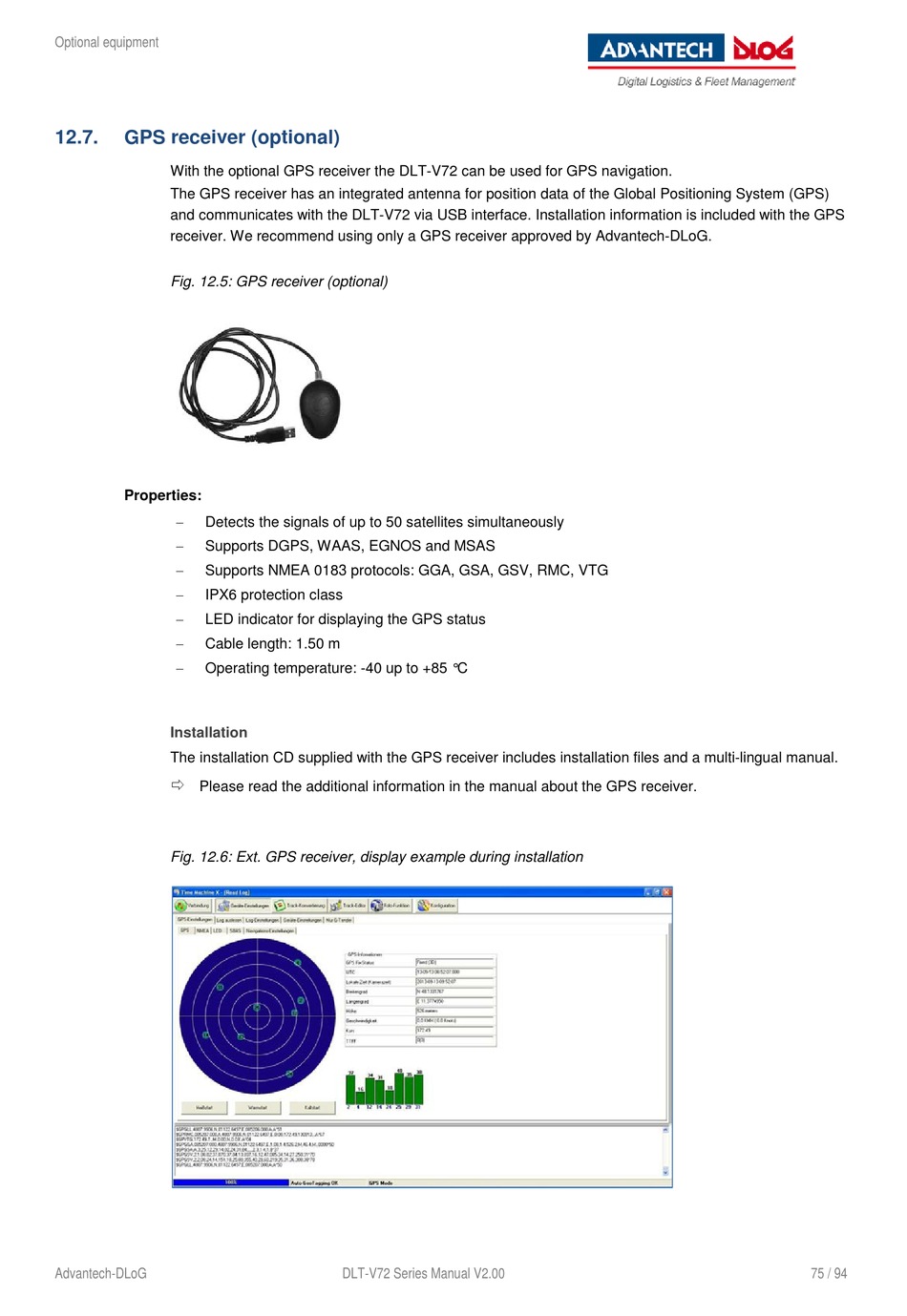

Fig. 12.5: GPS receiver (optional)

Properties:
−
Detects the signals of up to 50 satellites simultaneously
−
Supports DGPS, WAAS, EGNOS and MSAS
−
Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG
−
IPX6 protection class
−
LED indicator for displaying the GPS status
−
Cable length: 1.50 m
−
Operating temperature: -40 up to +85 °C
Installation
The installation CD supplied with the GPS receiver includes installation files and a multi-lingual manual.

Please read the additional information in the manual about the GPS receiver.

Fig. 12.6: Ext. GPS receiver, display example during installation

Advantech-DLoG DLT-V72 Series Manual V2.00 75 / 94
