Operation
3.4.

DLT-V7210K: Front keys, LEDs and integrated keyboard

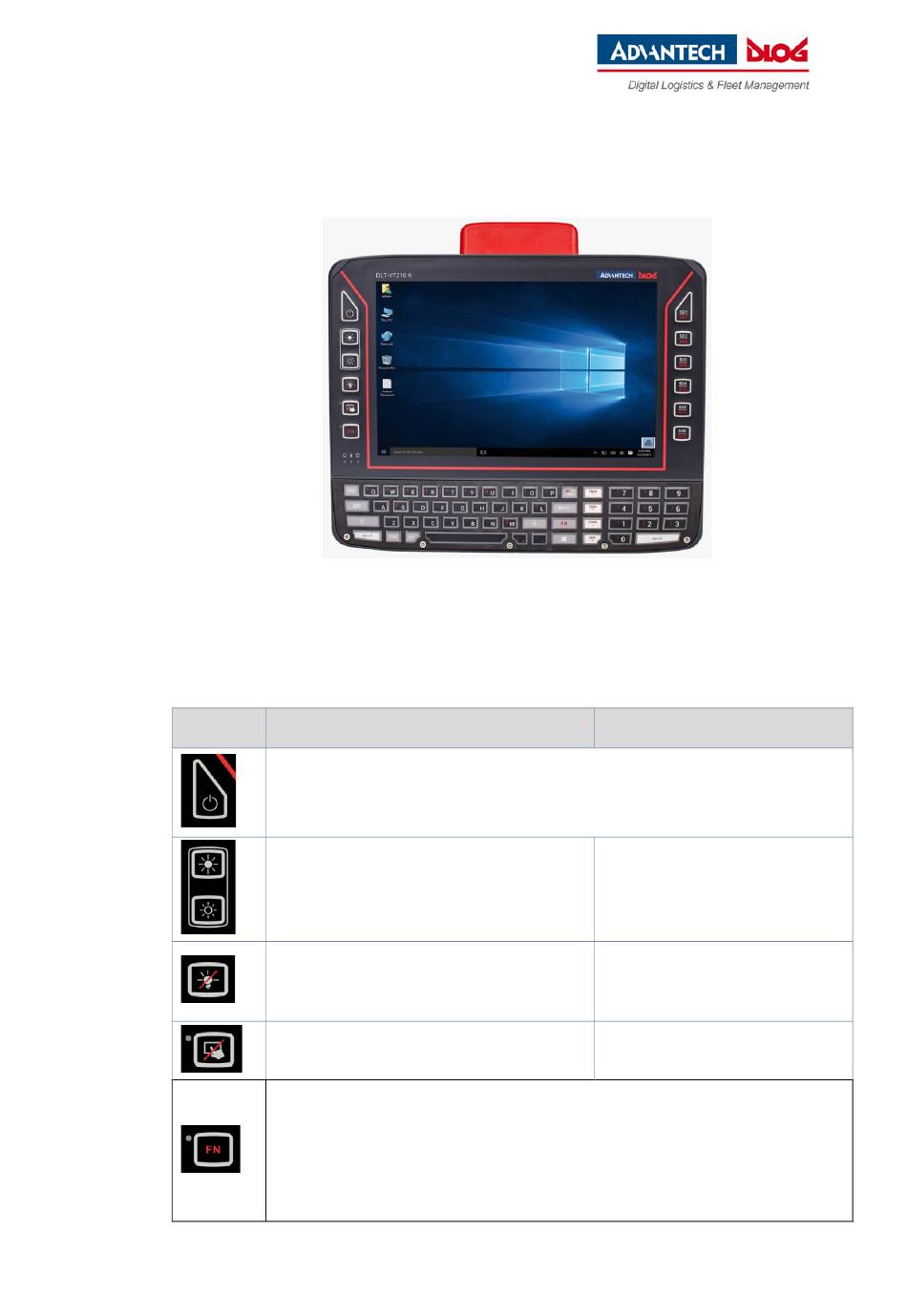

Fig. 3.3: DLT-V7210K Front keys, LEDs and integrated keyboard

Keys left side:
- Device on/off
- Display brighter
- Display darker
- Backlighting on/off
- Touch on/off
- FN: Switch special
keys S1 up to S6 to
assignment
S2 up to S12
3.4.1.

Front keys and LEDs

Left on DLT-V7210K:
Key
Advantech-DLoG
Bottom: Integrated keyboard
Function when FN key not activated
(FN LED is off)
Power button, switch device on/off
Display brightness control:
Display brighter / darker
Background lightning of the display on / off.
NOTE: The DLT-V7210K will continue to react to
keyboard, mouse and touchscreen inputs even if the
backlight is switched off.
Activate/deactivate touchscreen.
Touch LED on (orange): Touchscreen inactive
Touch LED off: Touchscreen active
With FN key pressed (LED on):
The special keys to the right on the device are shifted to assignment S2 to S12 (permanent, until
FN is pressed again).
The brightness/illumination keys to the left on the device affect the integrated keyboard, not the
display (permanent, until FN is pressed again).
The alternative characters of the individual keys shown in red are activated on the integrated
keyboard (not permanent).
DLT-V72 Series Manual V2.00
Keys left side:
- Special keys
S1 up to S12
Function when FN key is activated
(FN LED is on)
Integrated keyboard brightness control:
Background of keyboard brighter /
darker
Background lightning of the integrated
keyboard on / off
No function
