Procedure for opening the battery cover

IMPORTANT: Switch off the DLT-V72.

Loosen the two screws of the battery cover using an Allen wrench.

Remove the battery cover.

Remove the battery pack.

Insert the new battery pack into the battery pocket as shown in the figure.

Make sure that the removal tab of the battery pack is inside the sealing surface.

Then reattach the battery cover (tightening torque 2 Nm).

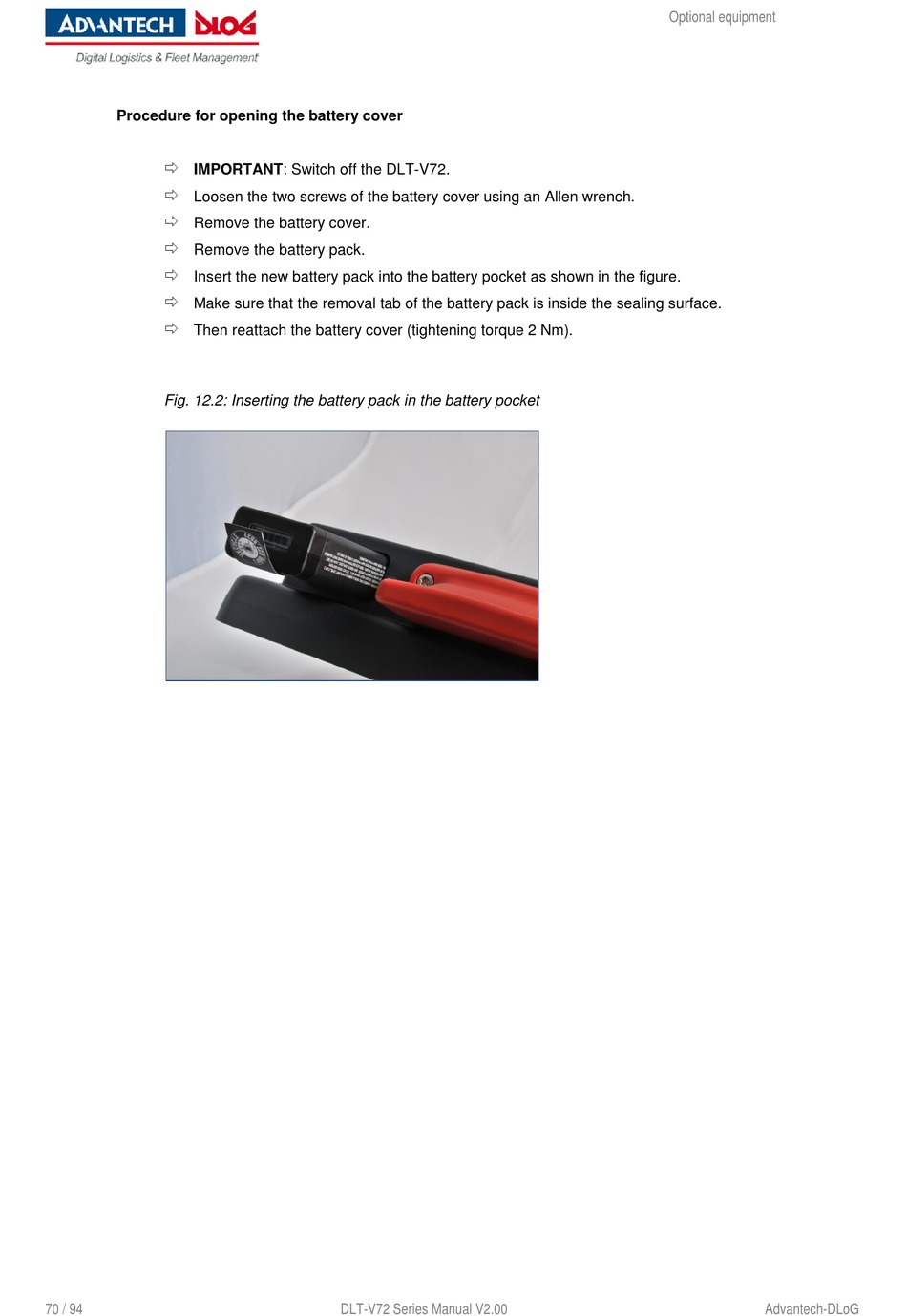

Fig. 12.2: Inserting the battery pack in the battery pocket
