Operation
3.3.

DLT-V7210 and DLT-V7212: Front keys and LEDs

3.3.1.

Overview

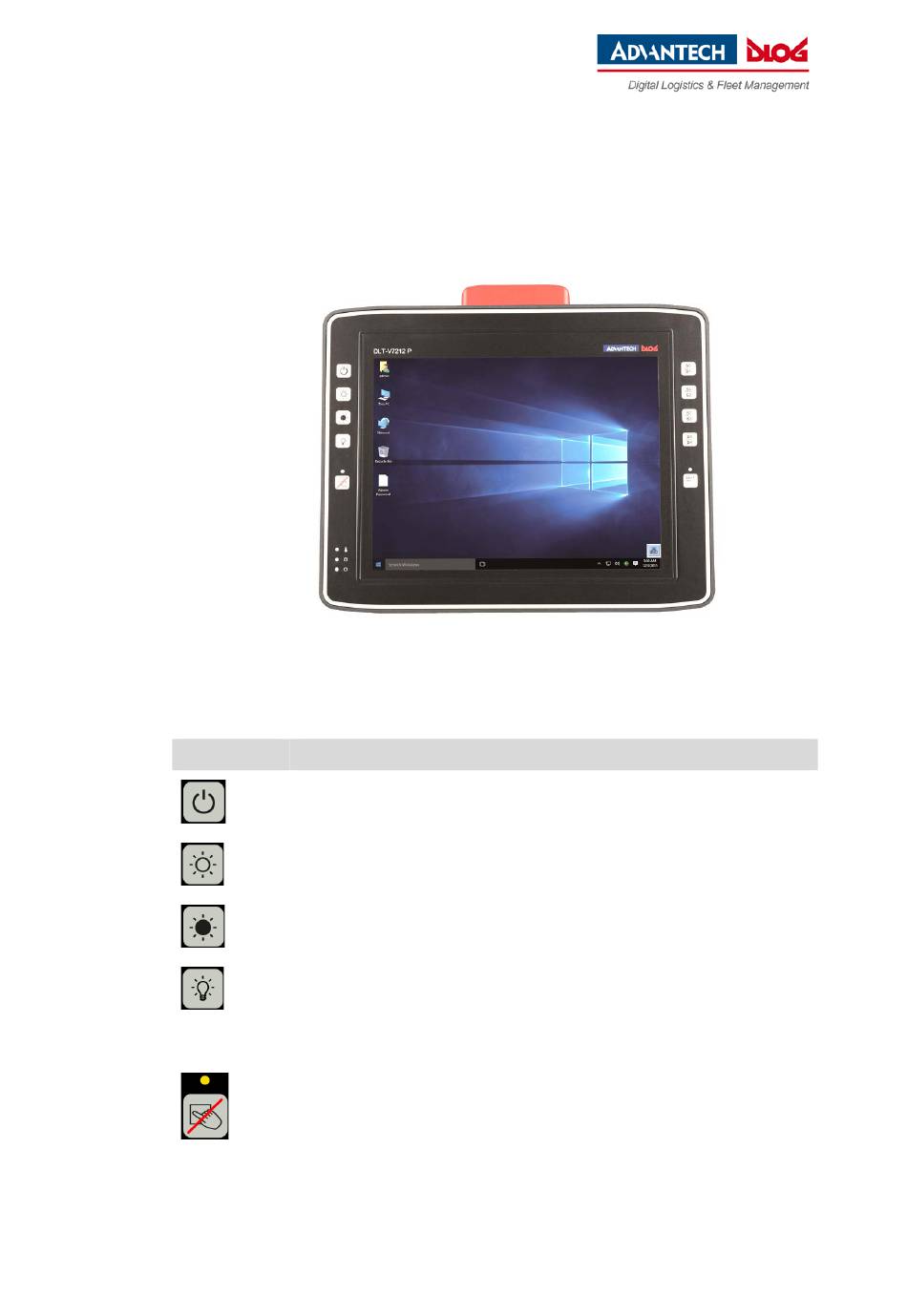

Fig. 3.2: Operating elements DLT-V7210 and DLT-V7212:

Keys left side:
- Device on/off
- Display brighter
- Display darker
- Backlighting on/off
- Touch or Screen-
Defroster on/off
3.3.2.

Keys and LEDs in detail

Left on DLT-V7210 and DLT-V7212:
Key
Advantech-DLoG
Explanation
<Power> button, switch device on/off
Manual brightness control: Display brighter
Manual brightness control: Display darker
Switch the backlight on/off
NOTE: The DLT-V72 will continue to react to keyboard, mouse and
touchscreen inputs even if the backlight is switched off. This means that
entries can still be made even when the screen display is not visible.
Function 1: Activate/deactivate touchscreen
Touch LED on (orange): Touchscreen inactive
Touch LED off: Touchscreen active
Function 2, in combination with the <SHIFT> key:
Activate/deactivate screen defroster (optional)
NOTE: The temp LED indicates whether the screen defroster is active or
inactive, not the touch LED above this key.
DLT-V72 Series Manual V2.00
Keys right side:
- Special keys
S1 up to S8
- SHIFT-key
13 / 94
