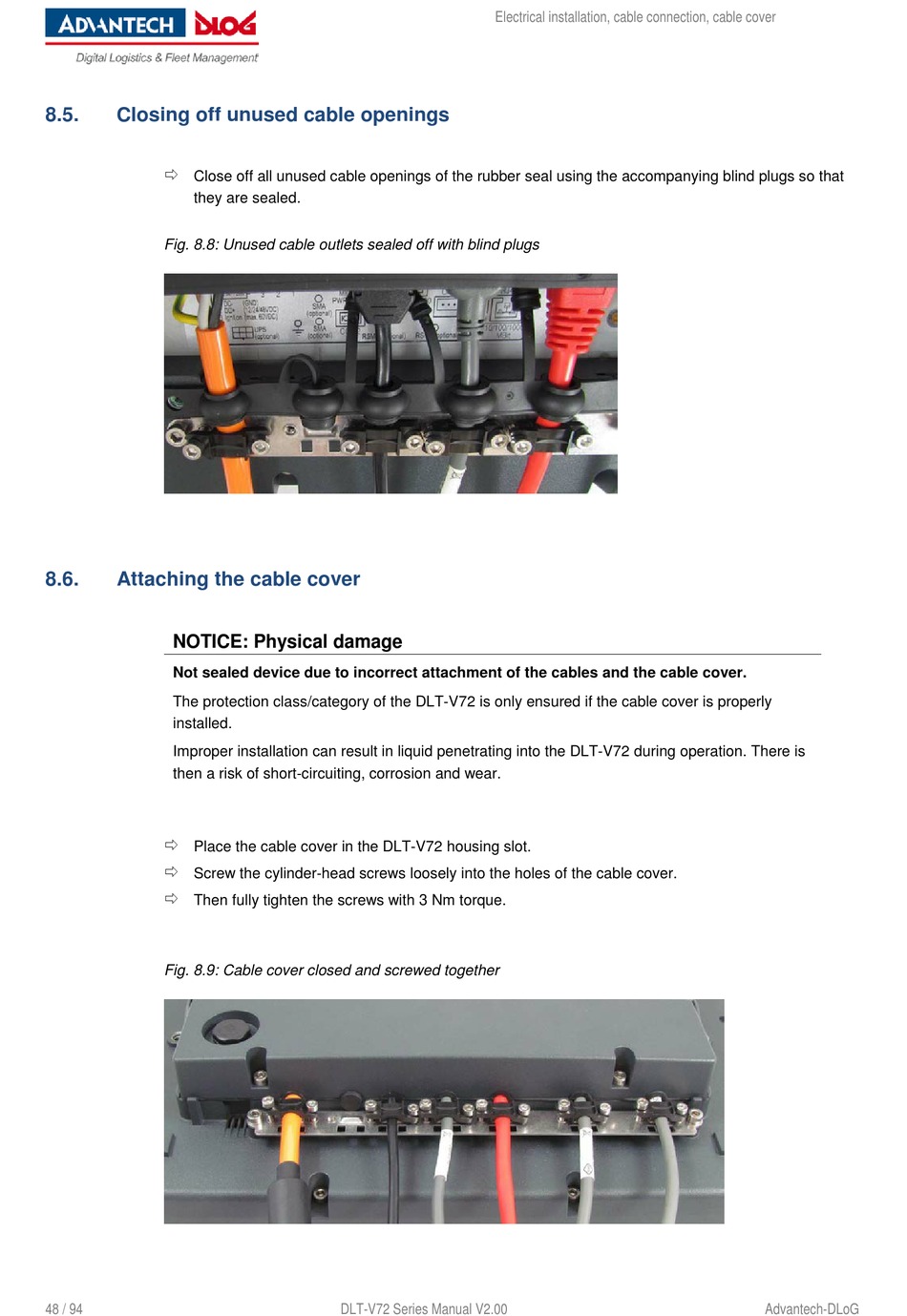

8.5.

Closing off unused cable openings


Close off all unused cable openings of the rubber seal using the accompanying blind plugs so that
they are sealed.

Fig. 8.8: Unused cable outlets sealed off with blind plugs

8.6.

Attaching the cable cover

NOTICE: Physical damage
Not sealed device due to incorrect attachment of the cables and the cable cover.
The protection class/category of the DLT-V72 is only ensured if the cable cover is properly
installed.
Improper installation can result in liquid penetrating into the DLT-V72 during operation. There is
then a risk of short-circuiting, corrosion and wear.

Place the cable cover in the DLT-V72 housing slot.

Screw the cylinder-head screws loosely into the holes of the cable cover.

Then fully tighten the screws with 3 Nm torque.

Fig. 8.9: Cable cover closed and screwed together
