Dc Voltage Supply Connection; Fig. 10.2: Dc Power Supply Connector With Connector Detail View - Advantech-DLoG DLT-V72 Series Manual

Integrated power supply, power supply cable
Power consumption
DLT-V7210 (all model types: D, P, R, K)
DLT-V7212
Power supply unit fuses
Power supply unit
DC-16
The symbol for the fuse is FA. You will find the exact position on the sticker located on the connection
plate of the DLT-V72.
10.1.1.

DC voltage supply connection

Version: Phoenix Combicon, 3-pin.
External view:

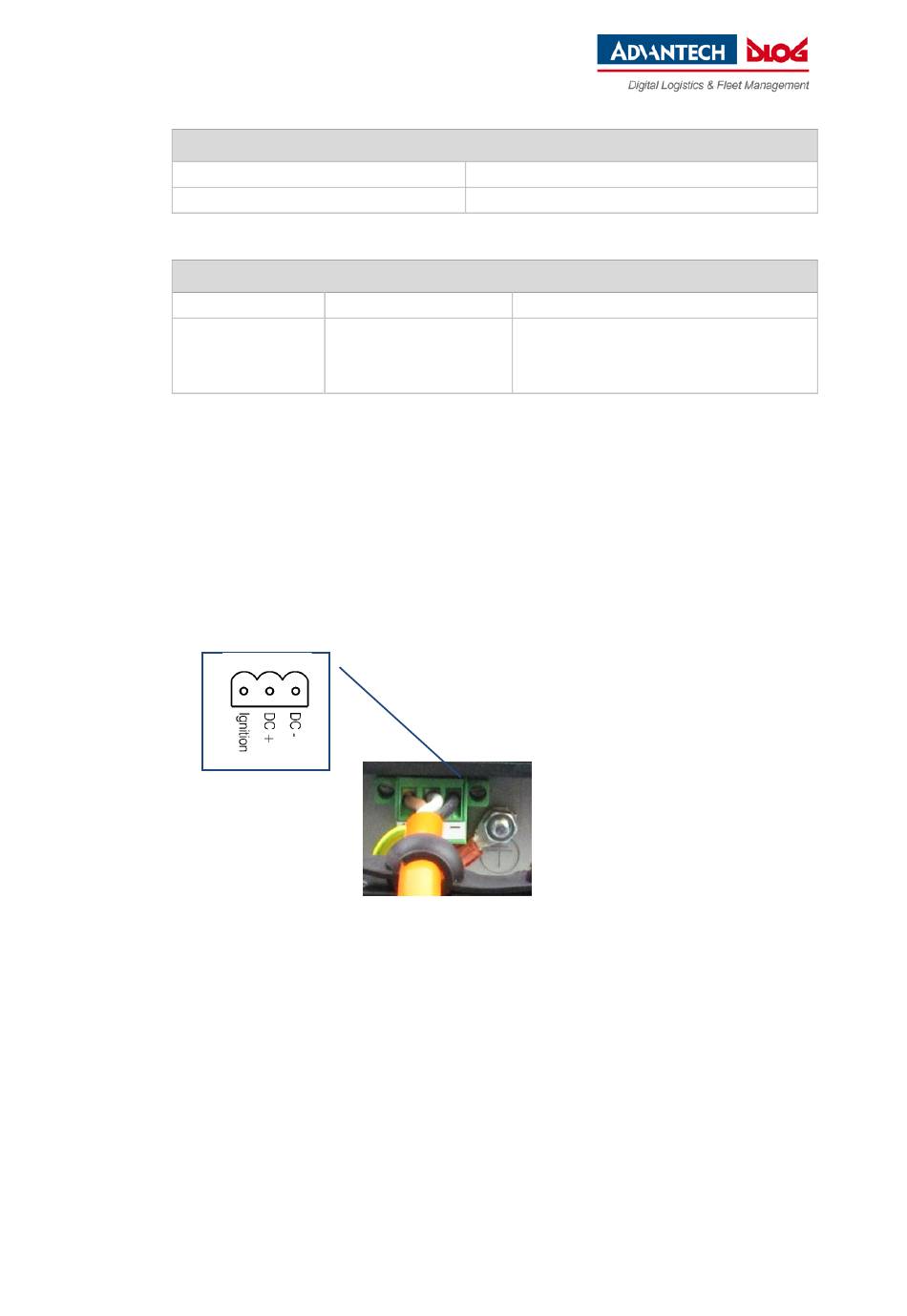

Fig. 10.2: DC power supply connector with connector detail view

Explanation:
"Ignition on" means that a control signal can be routed to this connection (e.g., ignition of a vehicle), that
matches the supply voltage level and is able to supply at least 1 W to the DLT-V72. The signal reference
is DC-.
Advantech-DLoG
Typically 25 W; Standby typically 1 W
Typically 30 W; Standby typically 1 W
Fuse type
5 x 20 mm T 12,5 A
H / 250 V
DLT-V72 Series Manual V2.00
Example
Schurter 0001.2515
Siba 179200.12,5
or similar produced by other manufacturers
55 / 94
