Fan Assembly/Installation

Belt Installation

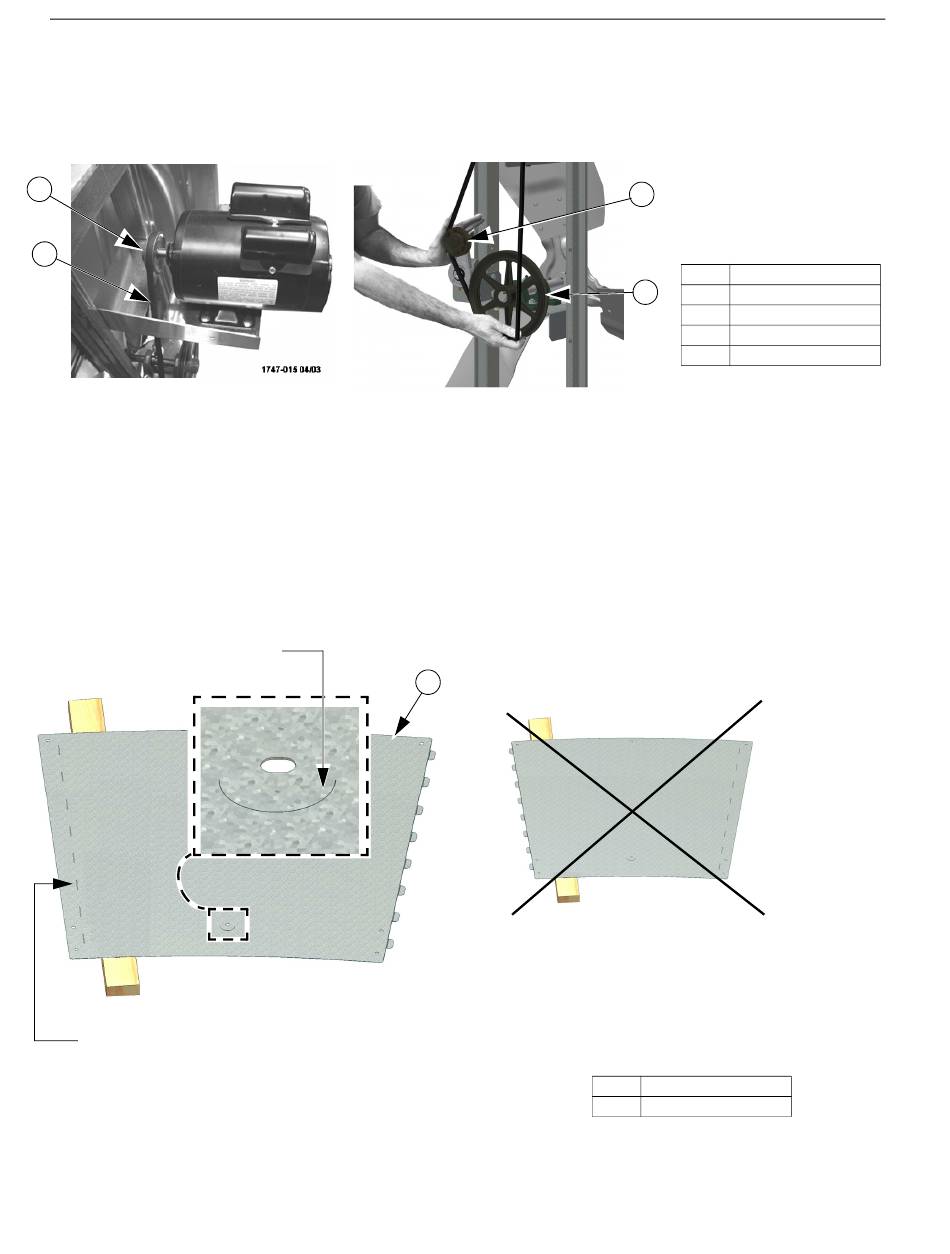

Guide the Belt through the Opening in the Motor Support Bracket and loop it over the Motor Sheave. Guide the Belt
around the Tensioner Sheave and push on it to get enough slack to put the Belt on the Driven Sheave as shown in
Figure 10. Make sure the Belt does not rub against the Motor Support Bracket.
3 2
1
Cone Assembly and Installation
Step 1:
Lay a Cone Panel down (Drain Tab at the bottom and slots to the left) and Prop the end up (Slotted
end) with a 2 x 4 board.
C-Shaped Drain Tab
Slots in Cone Panel
6
48" and 52" Hyflo® Fans Installation and Operators Instruction Manual
Figure 10. Installing the Belt
3 1
Figure 11. Assembling Cone Panels
3
4
Wrong! Cone Panel is upside down
Item Description
1 Cone Panel
Item Description
1 Belt
2 Motor Sheave
3 Tensioner Sheave
4 Driven Sheave
