Fan Assembly/Installation
Installing Fans 60"-64-1/2" on Center
If 52" Fans need to be installed 60"-64-1/2" on center, Cone Clips can be used to keep Cones from interfering with
one another. First, cut the two legs from the horizontal Screen wire as shown in Figure 16 below.

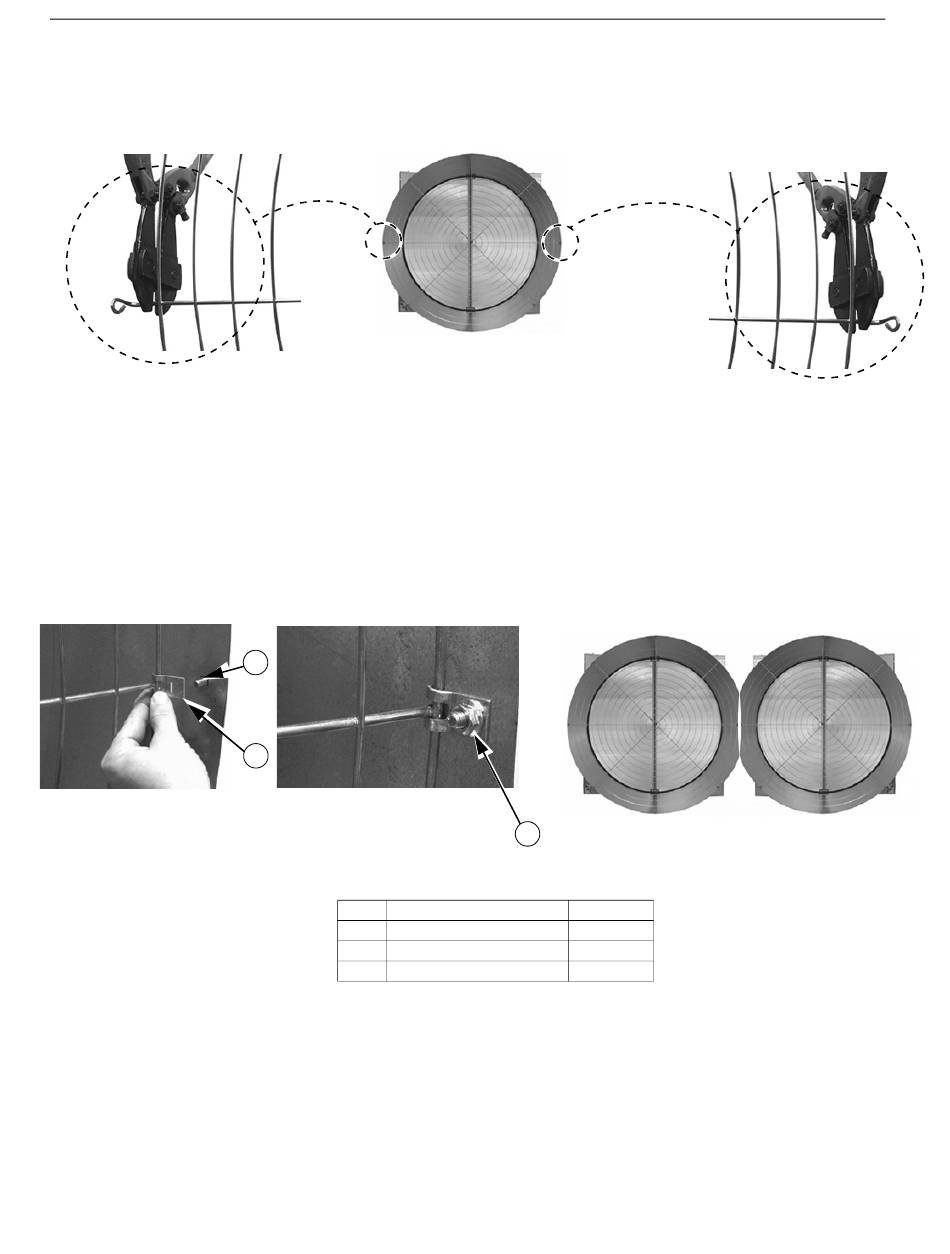

Figure 16. Cutting Screen Legs for Installing Cone Clips
Holding a Cone Clip in place, Push in the side of the Cone and fasten with 5/16 x 1/2" Carriage Bolts and Flange
Nuts as shown in Figure 17 below.
10
3 2
3 1
Item Description
1 Cone Clip
2 5/16 x 1/2 Carriage Bolt
3 5/16 Flange Nut
Figure 17.
48" and 52" Hyflo® Fans Installation and Operators Instruction Manual
3 3
Part No.
49504
-
-
Attaching Cone Clips
52" Cone Fans with Cone Clips
MV1832P
