Fan Assembly/Installation

Assembly for 9" Panel Models (models
®

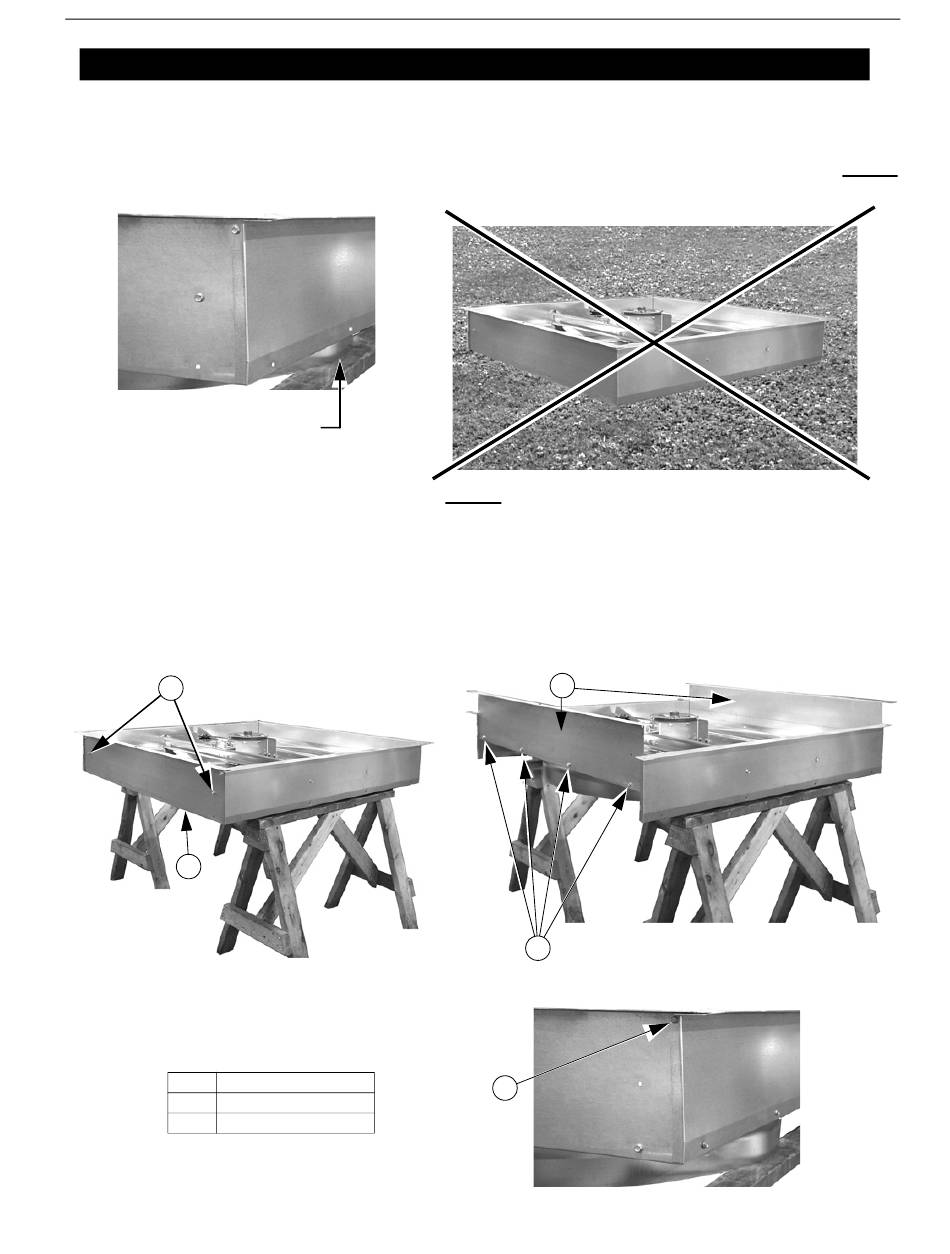

Hyflo Fans with 9" panels need to be repositioned from their shipping position before they can be installed.
Remove the Fan from the Crate, and with the Blade down, rest the Fan Shroud orifice on sawhorses. Do Not
rest the Fan on the blade. (See Figure 3 below)
Fan Shroud orifice
resting on Sawhorse
Figure 3. Orifice resting on
Sawhorse
Remove the 1/4 x 1/2" Screws from the Side Panels (Figure 4). Shift the Panels up until the second set of
holes in the Panels line up with the holes in the Shroud (Figure 5). Re-attach the Panels with the 1/4 x 1/2"
Screws as shown. Repeat the same procedure for the Top and Bottom Panels. The additional 1/4 x 1/2"
Screws that are required are included in the Parts Package. Once all of the Panels have been shifted attach
the Panels at the corners with 1/4 x 1/2" Screws.
3 2
3 1
Figure 4. 9" Remove Screws
Item Description
1 Side Panel
2 1/4 x 1/2" Screw
MV1832P
49515-XX and 49519-XX)
Do Not lay Fan on the ground with the weight of the Fan
on the Fan Blade.
3 1
3 2
Figure 5. Shift Side Panels and re-attach
3 2
Figure 6. Attach Panels at Corners
