Cone Drain Tabs

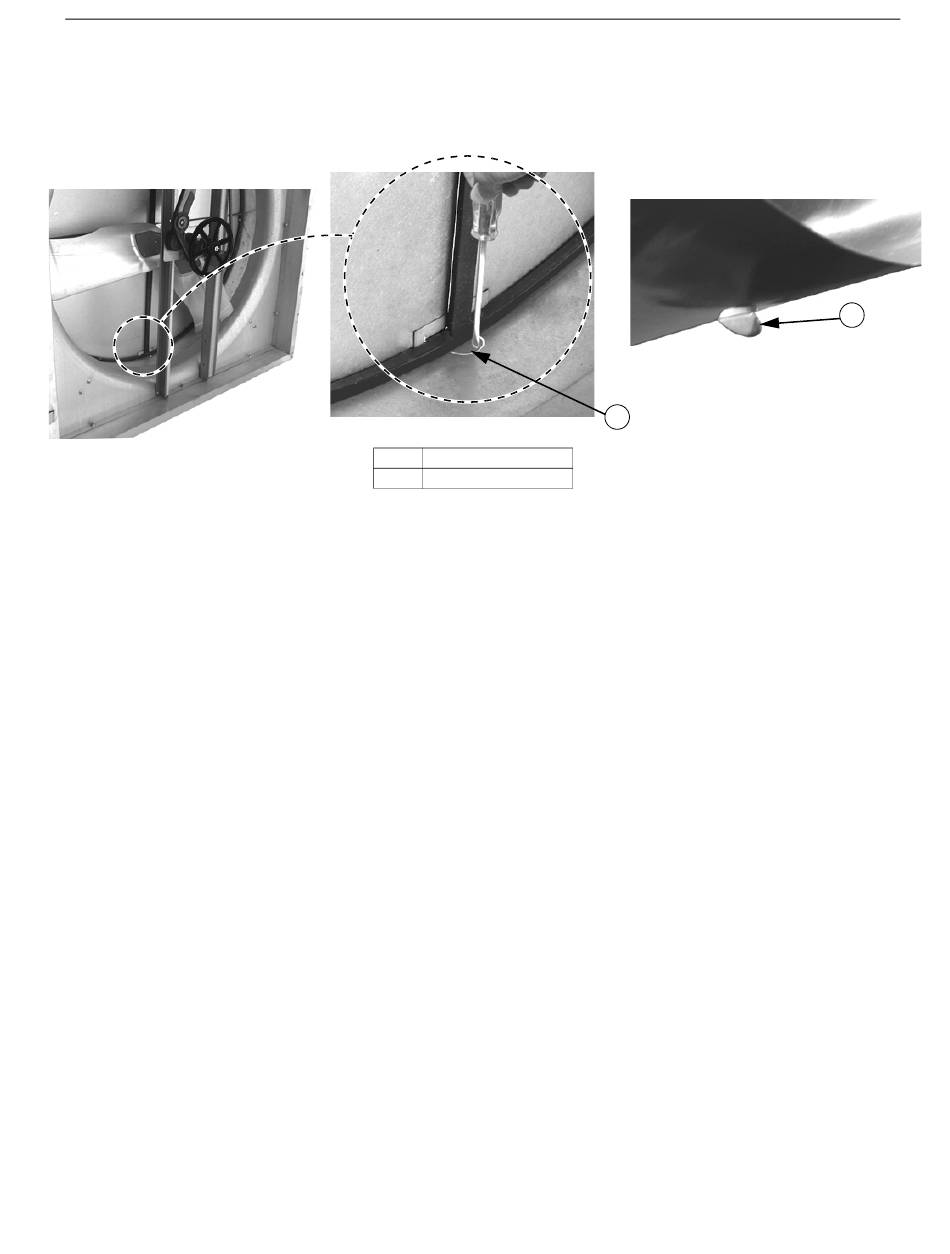

The Fan Cone is designed with a C-Shaped Drain Tab located at the back of the Bottom Cone Panel. Use a screw
driver to push the Drain Tab out as shown in Figure 22 below.
MV1832P
Item Description
1 Drain Tab
Figure 22. Cone Drain Tab
Fan Assembly/Installation
