Fan Assembly/Installation

Screen Clips

Set the Fan into the framed opening, but leave it hang out a few inches to allow for the insertion of four

Screen Clips (Item 1, Figure 7). With the Screen Clips oriented with the tab lock as shown, push them into

the slots in the Fan Housing Panels and rotate them forward until they lock into place as shown. Slide the

Fan forward flush with the rough opening making sure that the Clips do not fall out.

Step 1:

Set Fan into Rough

opening

Item

Description

Screen Clip

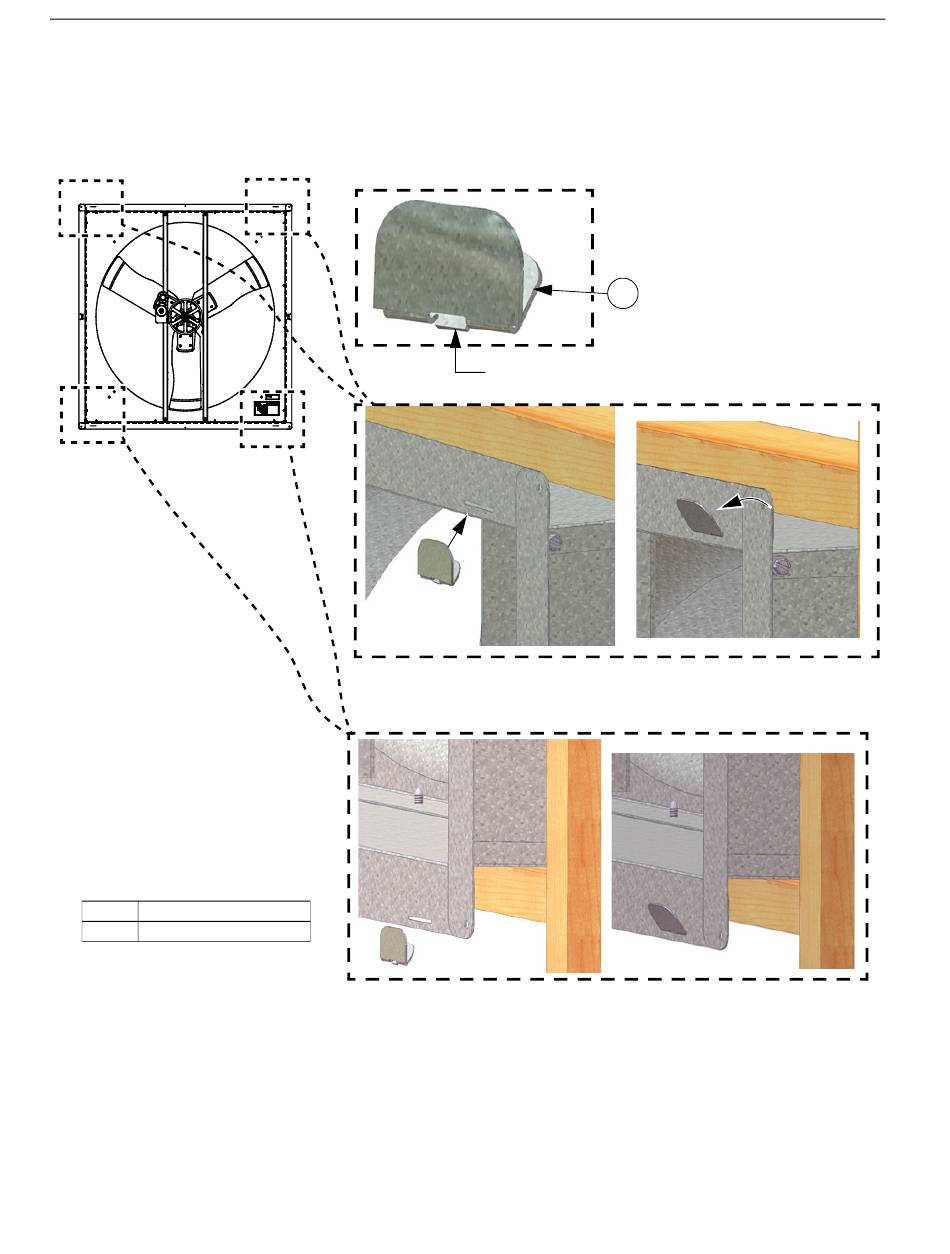

Figure 7. Installing Screen

Clips

48" and 52" Hyflo® Fans Installation and Operators Instruction Manual

Tab Lock

Step 2:

Insert Screen Clip into slot

Step 4:

Repeat Steps 1 through 3 for Bottom Screen Clips

1 Orient Screen Clip

with tab lock as shown

Step 3:

Rotate Screen Clip to

lock into place

MV1832P
