Fan Assembly Procedure
Mount the Motor (Item 1, Figure 6) to the Pivot Motor Mount Plate (Item 3, Figure 6) by using the supplied
5/16-18 x .625'' Carriage Bolt (Item 10, Figure 6) with the heads coming up from the bottom and the 5/16-18''
Flange Nut (Item 11, Figure 6) on top.
1
3
4
Rear View of Motor Installation
12

Motor Sheave and Belt Installation

8
5
9
7
MV1645-006 10/00
6
2
Item Description
1 Motor
2 Spring (Compress to 2-1/4'')
3 Pivot Motor Mount Plate
4 Pivot Plate Mounting Bracket
5 Z-Motor Mounting Bracket
6 Bolt, 5/16-18 x 5.5''
7 Spring Cap (2 pcs)
8 5/16'' Flange Nut
9 5/16'' Flat Washer
10 5/16-18 x .625'' Carriage Bolt
11 5/16-18" Flange Nut

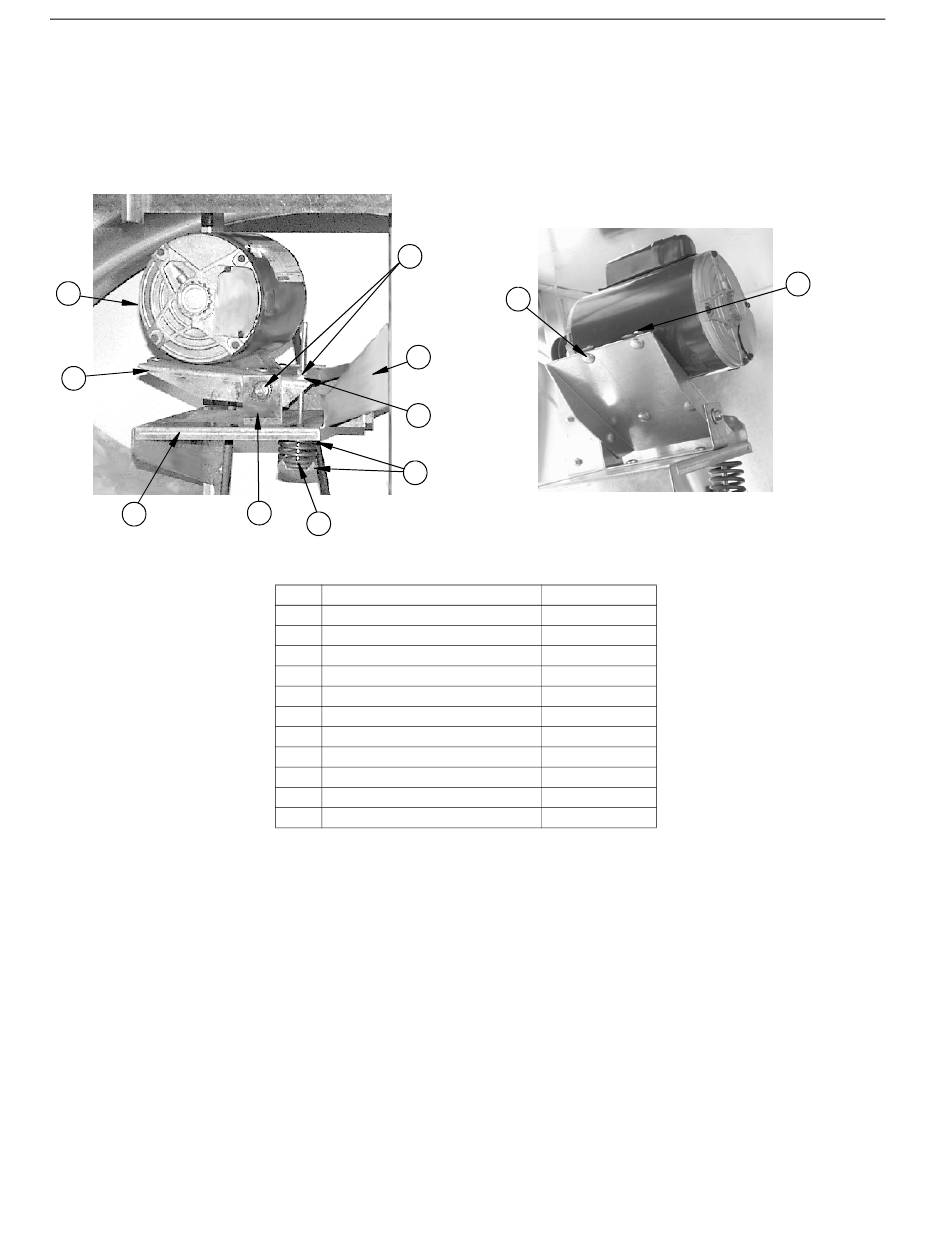

Figure 6. Motor Installation
10
Motor position before putting Belt on Sheave
and Pulley. Notice the bolt (Item 10) position.
