Chore-Time Hyflo Instruction Manual

48" and 52" fans
Hide thumbs Also See for Hyflo:
Table of Contents

Advertisement

Quick Links

Download this manual

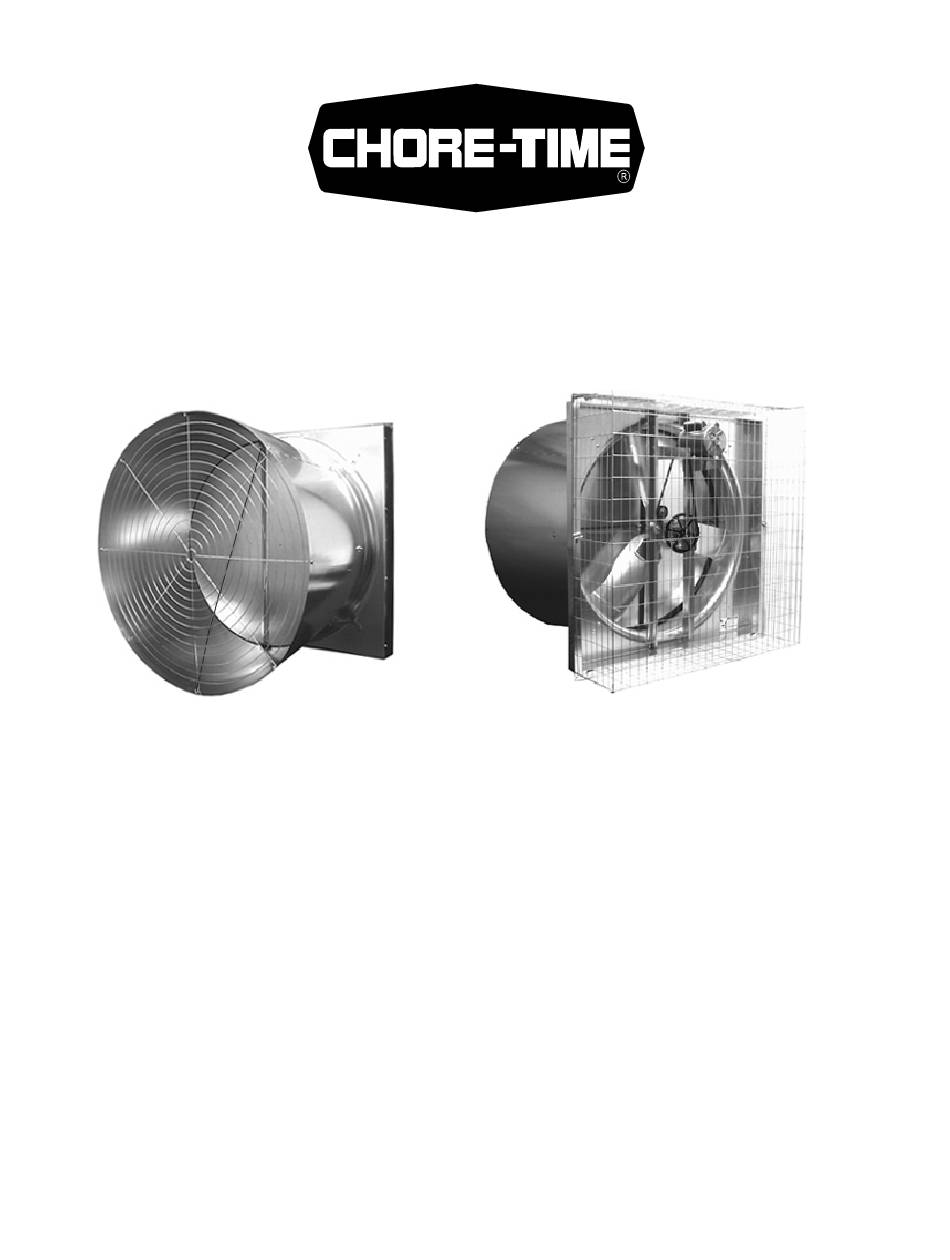

48" and 52" Hyflo
®
Fans
Installation and Operators Instruction Manual
Thank You
employees of CTB Inc. would like to thank your for your recent Chore-Time purchase. If a problem should
The
arise, your Chore-Time distributor can supply the necessary information to help you.
Contact your nearby Chore-Time distributor or representative for additional parts and information.
Chore-Time Group
A division of CTB, Inc.
PO Box 2000
Milford, Indiana 46542-2000 USA
Phone (574) 658-4101 Fax (877) 730-8825
E-mail: poultry@choretime.com
Internet: www.choretimepoultry.com
MV1832P
November 2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hyflo and is the answer not in the manual?

Questions and answers

Related Manuals for Chore-Time Hyflo

Summary of Contents for Chore-Time Hyflo

  • Page 1 Installation and Operators Instruction Manual Thank You employees of CTB Inc. would like to thank your for your recent Chore-Time purchase. If a problem should arise, your Chore-Time distributor can supply the necessary information to help you. Contact your nearby Chore-Time distributor or representative for additional parts and information.

  • Page 2: Fan Dimensions

    Fan and Fan Framing Dimensions 48" and 52" Hyflo® Fans Installation and Operators Instruction Manual Fan and Fan Framing Dimensions Fan Dimensions MV1832-003 7/04 Item ® ® ® ® 48" Hyflo 48" Hyflo 52" Hyflo 52" Hyflo 49451-XX (9 Inch Panels)

  • Page 3: Fan Assembly/Installation

    48" and 52" Hyflo® Fans Installation and Operators Instruction Manual Fan Assembly/Installation Fan Assembly/Installation Assembly for 9" Panel Models (models 49515-XX and 49519-XX) ® Hyflo Fans with 9" panels need to be repositioned from their shipping position before they can be installed.
  • Page 4 Fan Assembly/Installation 48" and 52" Hyflo® Fans Installation and Operators Instruction Manual Screen Clips Set the Fan into the framed opening, but leave it hang out a few inches to allow for the insertion of four Screen Clips (Item 1, Figure 7). With the Screen Clips oriented with the tab lock as shown, push them into the slots in the Fan Housing Panels and rotate them forward until they lock into place as shown.

  • Page 5: Attaching The Fan To The Wall

    48" and 52" Hyflo® Fans Installation and Operators Instruction Manual Fan Assembly/Installation Attaching the Fan to the Wall Slide the Fan assembly into the rough opening and starting with the two side hole locations (Detail A), use 1/4 x 1-3/4" Lag Screws (Item 1, Figure 8), two Nylon Washers (Item 2), and a Screen Retainer (Item 3) to attach the Fan to the Wall as shown.

  • Page 6: Belt Installation

    Fan Assembly/Installation 48" and 52" Hyflo® Fans Installation and Operators Instruction Manual Belt Installation Guide the Belt through the Opening in the Motor Support Bracket and loop it over the Motor Sheave. Guide the Belt around the Tensioner Sheave and push on it to get enough slack to put the Belt on the Driven Sheave as shown in Figure 10.
  • Page 7 Step 2: Step 3: Insert the Tabs of the second Cone Panel into the Repeat Step 2 until all four Cone Panels are slots of the 1st Panel and lay it down locking the locked together. two Panels together. All Four Cone Panels Connected Step 4: Step 5: Stand the Panels up on edge and curl the Panels...
  • Page 8 Fan Assembly/Installation 48" and 52" Hyflo® Fans Installation and Operators Instruction Manual Installing Door Assembly Step 1: Remove the Tape (Item 1) holding the Nylon Cable to the Door. Step 2: Line up the Four Holes in the Door Ring with the holes in the Cone and thread (4) 5/16 x 1-1/4" Bolts (Item 3) in until they are tight.
  • Page 9 48" and 52" Hyflo® Fans Installation and Operators Instruction Manual Fan Assembly/Installation Attaching the Door Stop Cable (Nylon Cable) and Grill. Step 1: Line up the Grill Eyehooks with the holes in the Cone. Thread the free end of the Nylon Cable...
  • Page 10 Fan Assembly/Installation 48" and 52" Hyflo® Fans Installation and Operators Instruction Manual Installing Fans 60"-64-1/2" on Center If 52" Fans need to be installed 60"-64-1/2" on center, Cone Clips can be used to keep Cones from interfering with one another. First, cut the two legs from the horizontal Screen wire as shown in Figure 16 below.
  • Page 11 48" and 52" Hyflo® Fans Installation and Operators Instruction Manual Fan Assembly/Installation Assembling the Cone to the Fan Use 5/16 x 5/8" Carriage Bolts and 5/16 Flange Nuts to attach the four Cone Brackets to the Fan Shroud as shown in Figure 18.
  • Page 12 Fan Assembly/Installation 48" and 52" Hyflo® Fans Installation and Operators Instruction Manual Door Spring Assembly On the Door Assembly, at the middle of the Door Center Brace, attach the Spring Mounting Bracket (Included in the Parts Package) as shown in Figure 20 below.
  • Page 13 48" and 52" Hyflo® Fans Installation and Operators Instruction Manual Fan Assembly/Installation Cone Drain Tabs The Fan Cone is designed with a C-Shaped Drain Tab located at the back of the Bottom Cone Panel. Use a screw driver to push the Drain Tab out as shown in Figure 22 below.
  • Page 14 48" and 52" Hyflo® Fans Installation and Operators Instruction Manual Fan Assembly/Installation Assembling the screen Keep Rotating Installing a Spring Install Spring at each Corner. per steps A-D below. 2. Install a spring (54480) in the 3. Rotate the Screen in the direction upper left corner following 1.
  • Page 15 48" and 52" Hyflo® Fans Installation and Operators Instruction Manual Fan Assembly/Installation Wiring 1. Check that the electrical power being supplied to the Fan matches the electrical Specifications on the Fan and Motor Decals. 2. Remove the Motor Access Cover.

  • Page 16: Installing The Screen

    Fan Assembly/Installation 48" and 52" Hyflo® Fans Installation and Operators Instruction Manual Installing the Screen Step 1: Hang the Screen (Item 1) on the four Screen Clips (Item 2) and position it so the Screen Wire is captured between 1/8" tall Tabs and Screen Retainers (Item 3).

  • Page 17: Maintenance

    48" and 52" Hyflo® Fans Installation and Operators Instruction Manual Maintenance Maintenance IMPORTANT! Disconnect Power Prior To Maintaining Or Cleaning The Fan. The fan may start automatically causing serious injury or death. • Service and repair of fans should be done only by a qualified technician.

  • Page 18: Fan Bearing And Belt Tensioner Lubrication

    Maintenance 48" and 52" Hyflo® Fans Installation and Operators Instruction Manual Fan Bearing and Belt Tensioner Lubrication • Grease zerks are provided for lubrication on the fan shaft bearings and the belt tensioner. • Lubricate the fan every 2-6 months or whenever these components get wet.
  • Page 19 48" and 52" Hyflo® Fans Installation and Operators Instruction Manual Maintenance This page left blank intentionally..MV1832P...
  • Page 20 3 37 Fan Part Number Note: For Fans with Part Numbers DOM MMDDYY 3 34 beginning with 48320 or 48483 refer to Chore-Time manual MV1747 3 33 Date of Manufacture (Month-Day-Year) 3 26 3 27 Shutter Clips and Nylon Washers 3 32 included in parts package.
  • Page 21 48" and 52" Hyflo® Fans Installation and Operators Instruction Manual Hyflo® Fan Parts (Manufactured after July 2007) 48" Fan Part Numbers 52" Fan Part Numbers 5" Deep Housing 49451-XX 5" Deep Housing 49511-XX 9" Deep Housing 49515-XX 9" Deep Housing 49519-XX...
  • Page 22 Part Numbers (for Fans Manufactured September 2004 to July 2007)48" and 52" Hyflo® Fans Installation and Operators Instruction Part Numbers (for Fans Manufactured September 2004 to July 2007) Fans that were Manufactured from September 2004 to July of 2007 used four different Cone Panels, Housing Panels, and a Door stop Wire and Spring.

  • Page 23: Safety Information

    Compliance with federal, state and local rules which apply to the location, installation and use of the Product are the responsibility of the original purchaser, and CHORE-TIME shall not be liable for any damages which may result from non-compliance with such rules.

  • Page 24: Revisions To This Manual

    Revisions to this Manual Page No. Description of Change Added Fan Bearing and Tensioner Lubrication 32504 Contact your nearby Chore-Time distributor or representative for additional parts and information. Chore-Time Group A division of CTB, Inc. PO Box 2000 Milford, Indiana 46542-2000 USA Phone (574) 658-4101 Fax (877) 730-8825 E-mail: poultry@choretime.com...
