48" and 52" Hyflo® Fans Installation and Operators Instruction Manual
Wiring
1. Check that the electrical power being supplied to the Fan matches the electrical Specifications on the Fan and
Motor Decals.
2. Remove the Motor Access Cover.
3. Install an electrical disconnect within reach of each Fan installed.
4. Connect the cord to the motor according to the wiring diagram on the motor. Verify that the motor is connected
for counter clockwise rotation (viewing the back of the motor, opposite the shaft end.)
5. Follow local, state, and national electrical codes for wiring. Cut out one section of the Screen to route the cord
out of the Fan: This will allow for the Screen to be removed without interfering with the Cord. (See Figure 23).
Attach the cord to the Wall using a Lag Screw and Cord Clip. Allow enough slack in the cord to form a "drip
loop" for moisture to fall away from the cord and not into the motor
NOTE: For variable frequency drive wiring, see instruction located in the 52"
Hyflo frequency drive kit (part no. 51738).
3 1
3 3

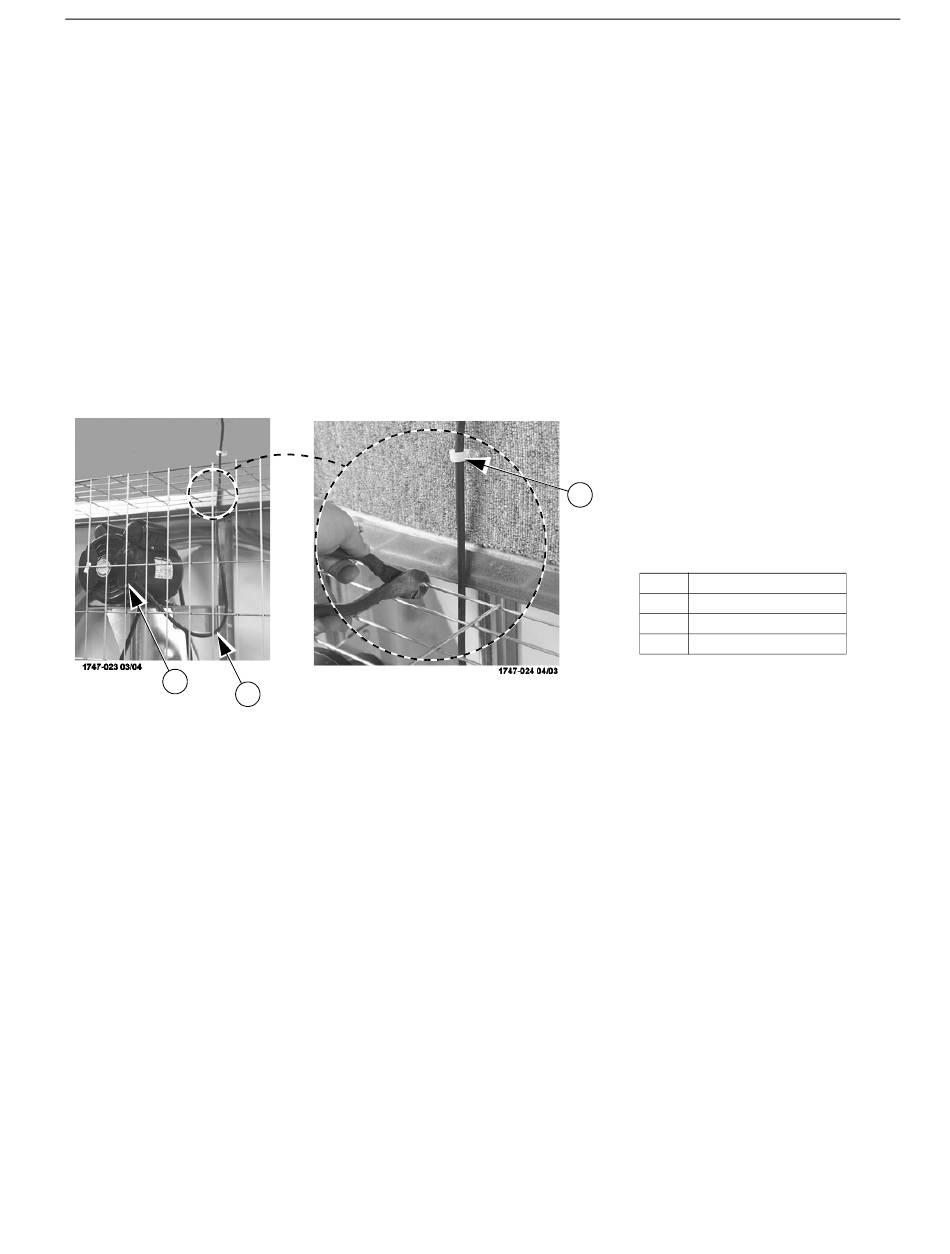

Figure 23. Cut out Screen for Motor Wiring
MV1832P
Fan Assembly/Installation
3 2
Item Description
1 Motor Access Cover
2 Cord Clip
3 Drip Loop
