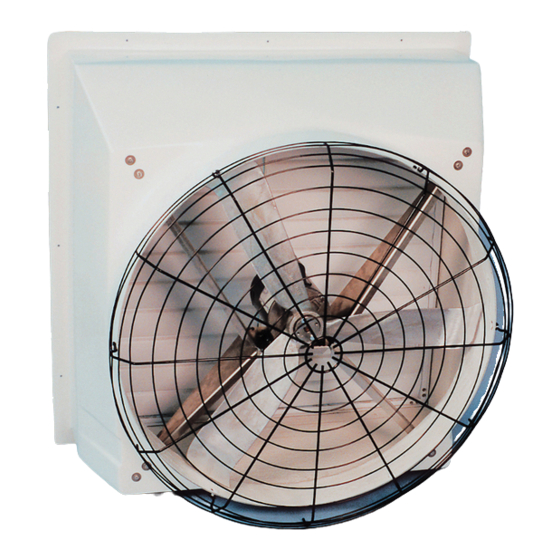

Chore-Time Turbo Installation Manual
52” fan with hyflo door - 4 piece cone
Hide thumbs
Also See for Turbo:
- Installation & operator's instruction manual (18 pages) ,
- Installation manual (12 pages) ,
- Installation & operator's instruction manual (16 pages)
Table of Contents
Related Manuals for Chore-Time Turbo
Summary of Contents for Chore-Time Turbo
- Page 1 52” TURBO® FAN WITH HYFLO® DOOR - 4 PIECE CONE INSTALLATION MANUAL CTB, Inc. PO Box 2000 Milford, Indiana 46542-2000 USA Phone (574) 658-4101 Fax (877) 730-8825 E-mail: choretime@choretime.com Internet: www.choretime.com January 2018 MV2474A...
-
Page 2: Safety Information
Safety Information DANGER: Electrical Hazard Disconnect electrical power before inspecting or servicing equipment unless maintenance instructions specifically state otherwise. Ground all electrical equipment for safety. All electrical wiring must be done by a qualified electrician in accordance with local and national electric codes. Ground all non-current carrying metal parts to guard against electric shock. - Page 3 Preparing the Fan Shroud A) Using a 5/16” bit, drill two holes in each corner of the fan shroud if not already present. If holes are not present, check for small dimples in each corner in order to pinpoint hole locations.
- Page 4 Assembling the Cone A) Lay one panel flat with the tabs oriented to the left. Place a 2x4 or similar underneath the panel just left of the slots on the right side. B) Place tabs of a second panel into the slots of the first and ensure they ‘pop’ together fully. C) Lay this second panel flat then move the 2x4 over just to the left of the slots again.
- Page 5 Mounting the Cone A) Pick up the assembled cone and hang it on the top two bolts. Make sure the four seams are oriented towards the four corners of the fan shroud. The one bolt with threads toward the inside of the cone should be at the bottom of the cone. Bottom Bolt Condition Seams between panels Nut - #46764...
- Page 6 CONE PANEL 52” FAN, 64” OD 53185 BRACKET, 52” HYFLO TURBO CONE 56230 GRILL, 64” OD BLACK 56255 TEMPLATE, 52” HYFLO TURBO 4 PC CONE 46764 NUT, HX SERRATED FLANGE SS 5/16-18 52784 BOLT, 5/16-18 X 1 HXWH SHLDR SS ST99070 WASHER, FLAT .38 SS...
-
Page 7: Limited Warranty
Chore-Time Group, a division of CTB, Inc. (“Chore-Time”) warrants new CHORE-TIME Turbo® Fans manufactured by Chore-Time to be free from defects in material or workmanship under normal usage and conditions, for One (1) year from the date of installation by the original purchaser (“Warranty”). Chore- Time provides for an extension of the aforementioned Warranty period (“Extended Warranty Period”) - Page 8 Note: The original, authoritative version of this manual is the [English] version produced by CTB, Inc. or any of its subsidiaries or divisions, (hereafter collectively referred to as “CTB”). Subsequent changes to any manual made by any third party have not been reviewed nor authenticated by CTB.
