Fan Assembly/Installation
Door Spring Assembly
On the Door Assembly, at the middle of the Door Center Brace, attach the Spring Mounting Bracket (Included in
the Parts Package) as shown in Figure 20 below.
3 2
3 1
Item Description
1 Door Center Brace
2 Spring Mounting Bracket

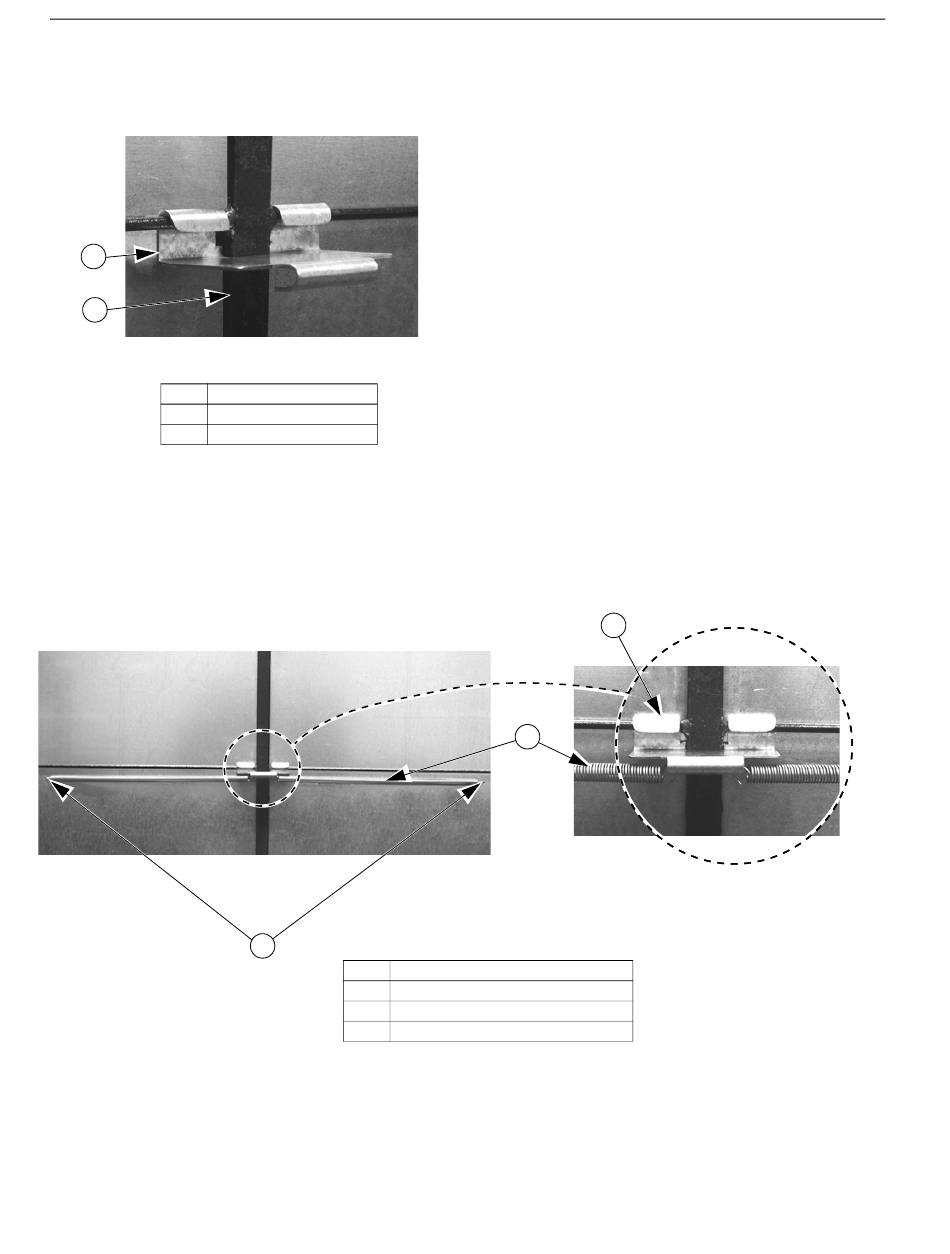

Figure 20. Attaching the Spring
Hook the rounded ends of the Door Springs onto the Spring Mounting Bracket. Stretch the Door Springs out and
hook them in the 3/32" holes in the Doors (See Figure 21).
12
48" and 52" Hyflo® Fans Installation and Operators Instruction Manual
3 3
Item Description
1 Spring Mounting Bracket
2 Door Spring
3 3/32" Hole in Door
Figure 21. Attaching the Door Springs
3 1
3 2
