Chore-Time Hyflo Instruction Manual page 14

48" and 52" Hyflo® Fans Installation and Operators Instruction Manual

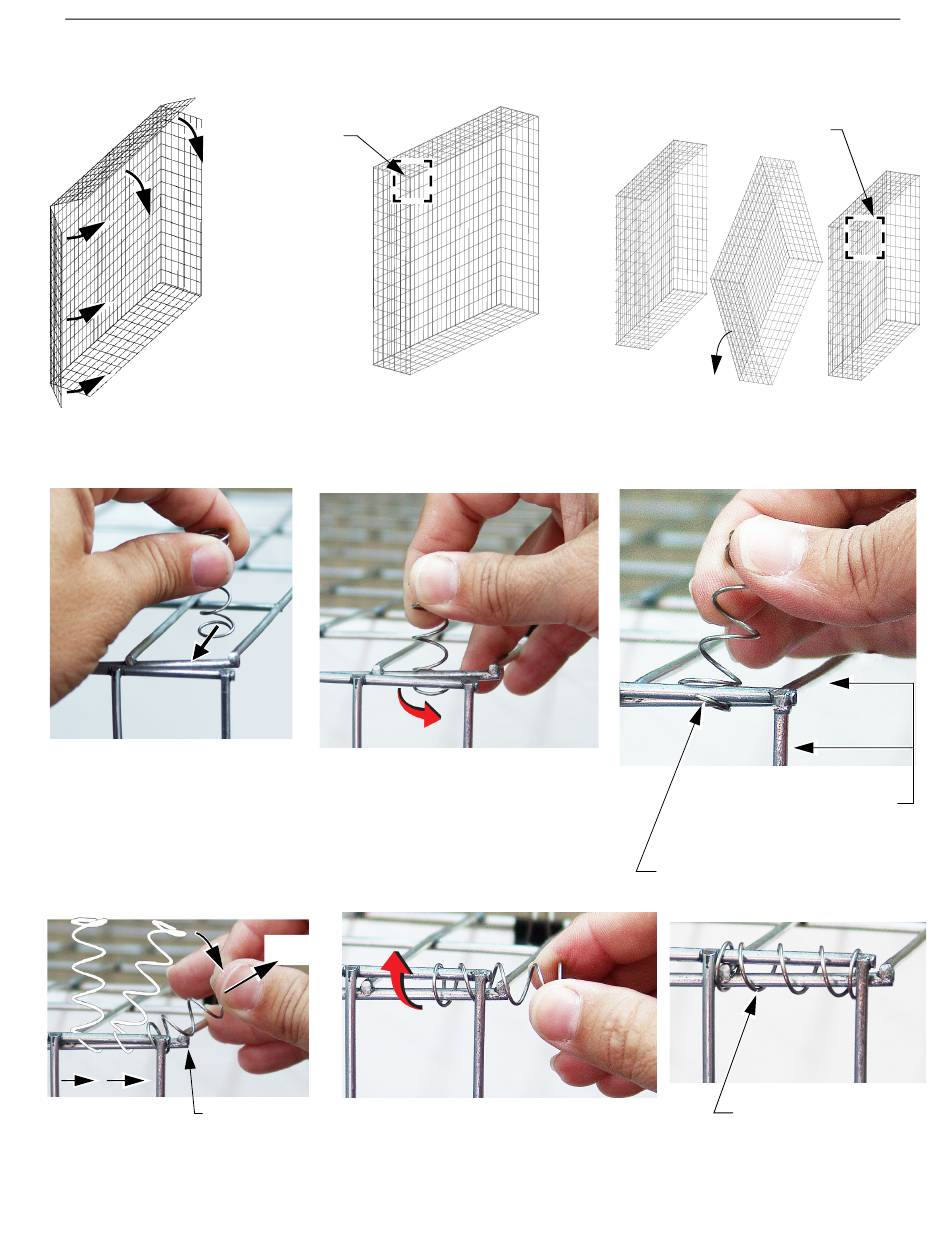

Assembling the screen
1. Fold the Screen Sides as shown.
A) Slide a Spring (54480)
over both Screen Panel Wires
exactly as shown.
Slide
Corner Wire
C) Slide and Pull Spring over
Corner Panel Wire.
MV1832P
Install Spring
per steps
A-D below.
2. Install a spring (54480) in the
upper left corner following
steps A through D below. After
Step D is complete go to step 3.
B) Rotate the Spring Counter-
Clockwise until the end of the
Spring snaps over the Side Panel
Wire.
Pull
D) Twist Spring Clockwise until it is passed
the outside wire and snapped firmly in place.
Fan Assembly/Installation
Keep Rotating
Installing a Spring
at each Corner.
3. Rotate the Screen in the direction
shown installing a Spring at a second
corner. Repeat for remaining Corners.
Adjust Screen Panels
so they are as even
as possible
Snapped over Side Panel Wire
Spring snapped firmly
between wires.
14
