Chore-Time Hyflo Assembly Manual

48" and 52" galvanized un-assembled fans

Advertisement

Quick Links

employees of Chore-Time Equipment would like to thank you for your recent Chore-Time purchase. If
The
a problem should arise, your Chore-Time distributor can supply the necessary information to help you.

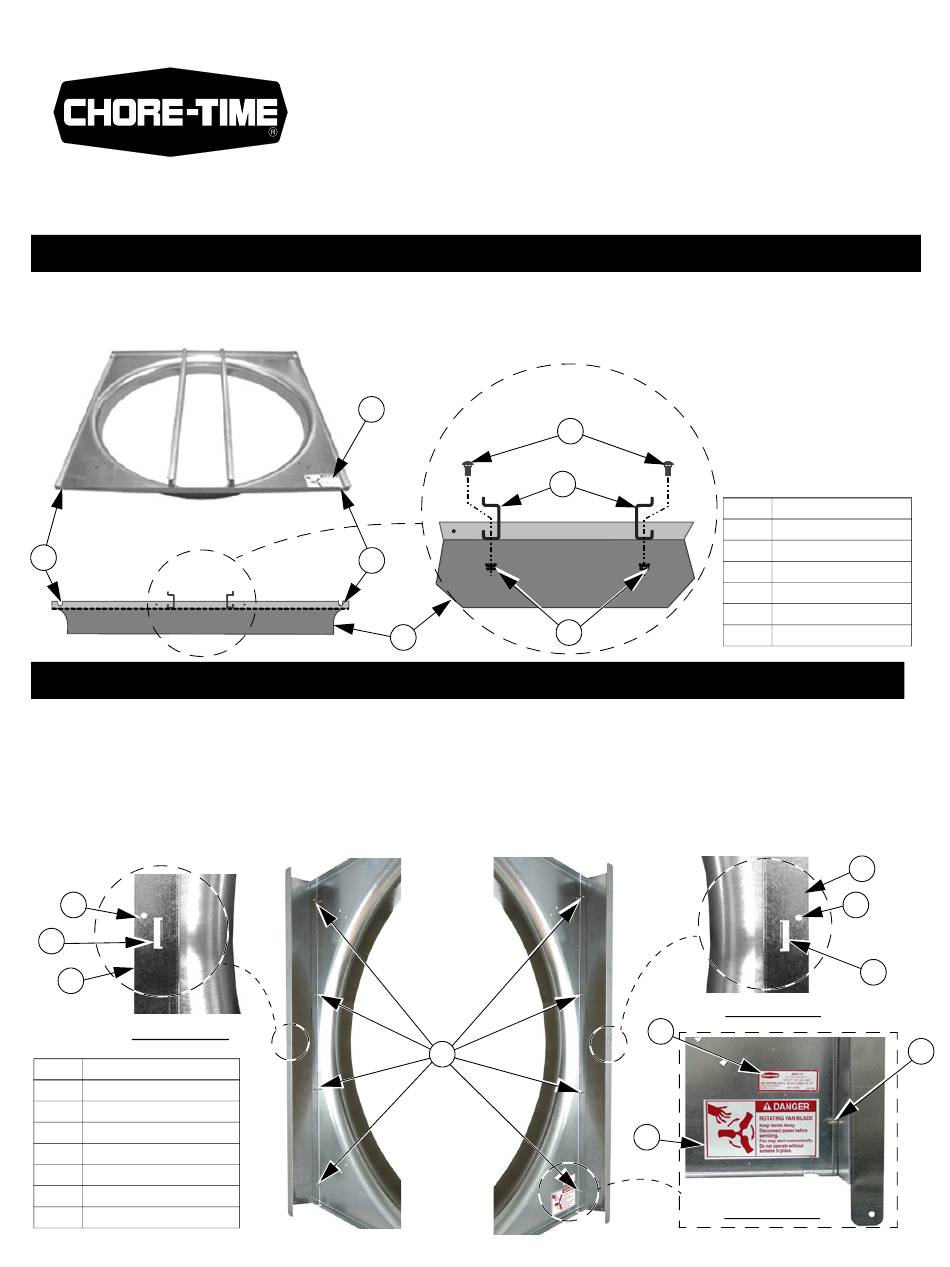

Attaching the Posts
Lay the Shroud down with the Decal and the drain holes at the bottom as shown. Fasten the Posts (Item 4)
to the Shroud (Item 1) with 5/16 Carriage Bolts and 5/16 Flange Nuts (Items 5 and 6) as shown.
3 3
Attaching the Housing Panels
The bottom of the Shroud can be identified by a Danger Decal (Item 6). Apply the Fan Description Decal (Item 7),
included in the parts package, above the Danger Decal as shown. Each Side Housing Panel has a Screen Clip Slot,
and a Mounting Hole near the center of the Panel. (See Figure below). To determine which is the left and right
Panel, meet the following two conditions: The Mounting Holes are toward the top (Details "A" and "B"), and the
Flanges are bent away from the center of the Shroud (Detail "C"). Line up the holes in the Side Housing Panels
with the holes in the Shroud and attach them with (8) 1/4 x 1/2" Hex Washer Head Screws (Item 5).
3 4
3 3
3 1
Detail "A"
Item
Description
1
Left Side Panel
2
Right Side Panel
3
Screen Clip Slot
4
Mounting Hole
5
1/4 x 1/2" WH Screw
6
Danger Decal
7
Fan Description Decal
March 2015
48" and 52" Galvanized Hyflo
Fans Assembly Manual
3 2
3 3
3 1
1756-007A 06/03
3 5
Un-Assembled
®
3 5
3 4
Item
1
2
3
4
5
1756-007B 06/03
3 6
6
Detail "B"
3 7
3 6
Detail "C"
Description
Shroud
Danger Decal
Drain Hole
Post
5/16 Carriage Bolt
5/16 Flange Nut
3 2
3 4
3 3
3 5
MV1878D
MV1878D

Advertisement

loading
Need help?

Need help?

Do you have a question about the Hyflo and is the answer not in the manual?

Questions and answers

Summary of Contents for Chore-Time Hyflo

  • Page 1 Un-Assembled ® Fans Assembly Manual employees of Chore-Time Equipment would like to thank you for your recent Chore-Time purchase. If a problem should arise, your Chore-Time distributor can supply the necessary information to help you. Attaching the Posts Lay the Shroud down with the Decal and the drain holes at the bottom as shown. Fasten the Posts (Item 4) to the Shroud (Item 1) with 5/16 Carriage Bolts and 5/16 Flange Nuts (Items 5 and 6) as shown.
  • Page 2 Attaching the Housing Panels 48" and 52" Galvanized Hyflo® Un-Assembled Fans Assembly Manual The Bottom Housing Panel has two Slots in it, and a full length bend (See Detail "A" below). The Flanges on the Bottom Housing Panel should overlap the Side Housing Panels (Detail "B"). Attach the Bottom Housing Panel to the bottom of the Shroud (the one with the Danger Decal) using the pre-drilled holes with four 1/4 x 1/2"...
  • Page 3 48" and 52" Galvanized Hyflo® Un-Assembled Fans Assembly Manual Installing Fan in the Wall Installing Fan in the Wall Refer to the Hyflo ® Installation and Operation Manual (MV1832) for detailed attachment instructions. Attaching the Idler and Motor Supports and Motor Attach the Bearing Support Assembly (Item 3) to the Posts with 5/16 Carriage Bolts and Flange Nuts, (Items 1 and 2),using the bottom set of holes in the Posts.
  • Page 4: Blade Installation

    Motor Sheave Installation 48" and 52" Galvanized Hyflo® Un-Assembled Fans Assembly Manual Motor Sheave Installation Apply a liberal amount of Anti-Seize (supplied in Parts Package) to the Motor Shaft (Item 2, Figure below). Slide the Sheave onto the motor shaft as shown. Align the Motor Sheave with the Driven Sheave by measuring from the Fan Posts as shown. It may be necessary to lay a straight edge across the Posts to get an accurate measurement.
  • Page 5: Limited Warranty

    Chore-Time Group, a division of CTB, Inc. (“Chore-Time”) warrants new CHORE-TIME Cage and Cage Components manufactured by Chore-Time to be free from defects in material or workmanship under normal usage and conditions, for One (1) year from the date of installation by the original purchaser (“Warranty”). If such a defect is determined by Chore-Time to exist within the applicable period, Chore-Time will, at its option, (a) repair the Product or Component Part free of charge, F.O.B.
  • Page 6: Revisions To This Manual

    Revisions to this Manual Page No. Description of Change Removed Screen Assembly information. Updated Warranty and Contact Info. Various Chore-Time Group A division of CTB, Inc. PO Box 2000 Milford, Indiana 46542-2000 USA Phone (574) 658-4101 Fax (877) 730-8825 E-mail: poultry@choretime.com...
