Chore-Time Hyflo Instruction Manual page 8

Fan Assembly/Installation
Installing Door Assembly
Step 1:
Remove the Tape (Item 1) holding the Nylon Cable to the Door.
Step 2:
Line up the Four Holes in the Door Ring with the holes in the Cone and thread (4) 5/16 x 1-1/4" Bolts
(Item 3) in until they are tight. Do not install Nuts at this time. These Bolts will be use later to attach
the Cone Brackets to the Cone Assembly
Step 3:
Use (2) 5/16 x 1-1/4" Bolts (Item 3) and (2) 5/16" Flange Nuts (Item 4) to attach the Ring to the Cone
using the holes located on both sides near the Door Center Brace (Item 5) as shown. The Nuts go
outside the Cone.
8
3 3 4
3 5

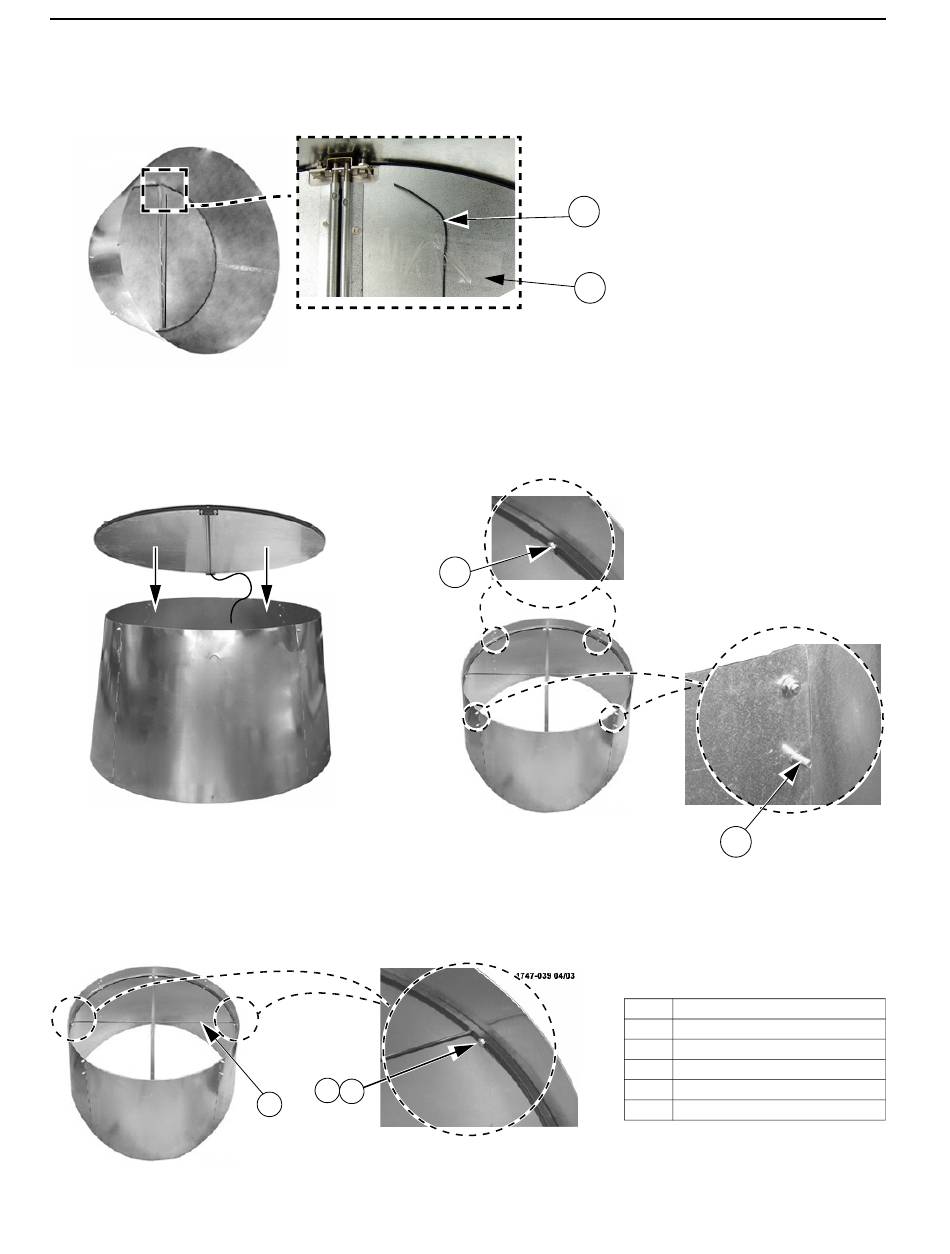

Figure 13. Installing the Door Assembly
48" and 52" Hyflo® Fans Installation and Operators Instruction Manual
3 2
3 1
3 3
Do not install Nuts
3 3
Item Description
1 Tape
2 Nylon Cable
3 5/16 x 1-1/4" Bolt
4 5/16 Flange Nut
5 Door Center Brace
MV1832P
