48" and 52" Hyflo® Fans Installation and Operators Instruction Manual
Attaching the Door Stop Cable (Nylon Cable) and Grill.
Step 1:
Line up the Grill Eyehooks with the holes in the Cone. Thread the free end of the Nylon Cable
(Item 2) through the Bottom Grill Eyehook (Item 1) until it is flush with the Cone and secure it with
a 5/16-18 Carriage Bolt (Item 3) and Flange Nut (Item 4) as shown.
Top of Door
Step 2:
Use 5/16 Carriage Bolts (Item 3) and Nuts (Item 4) to fasten
the Grill to the Cone at the remaining 7 locations.
MV1832P
Item
1
2
3
4

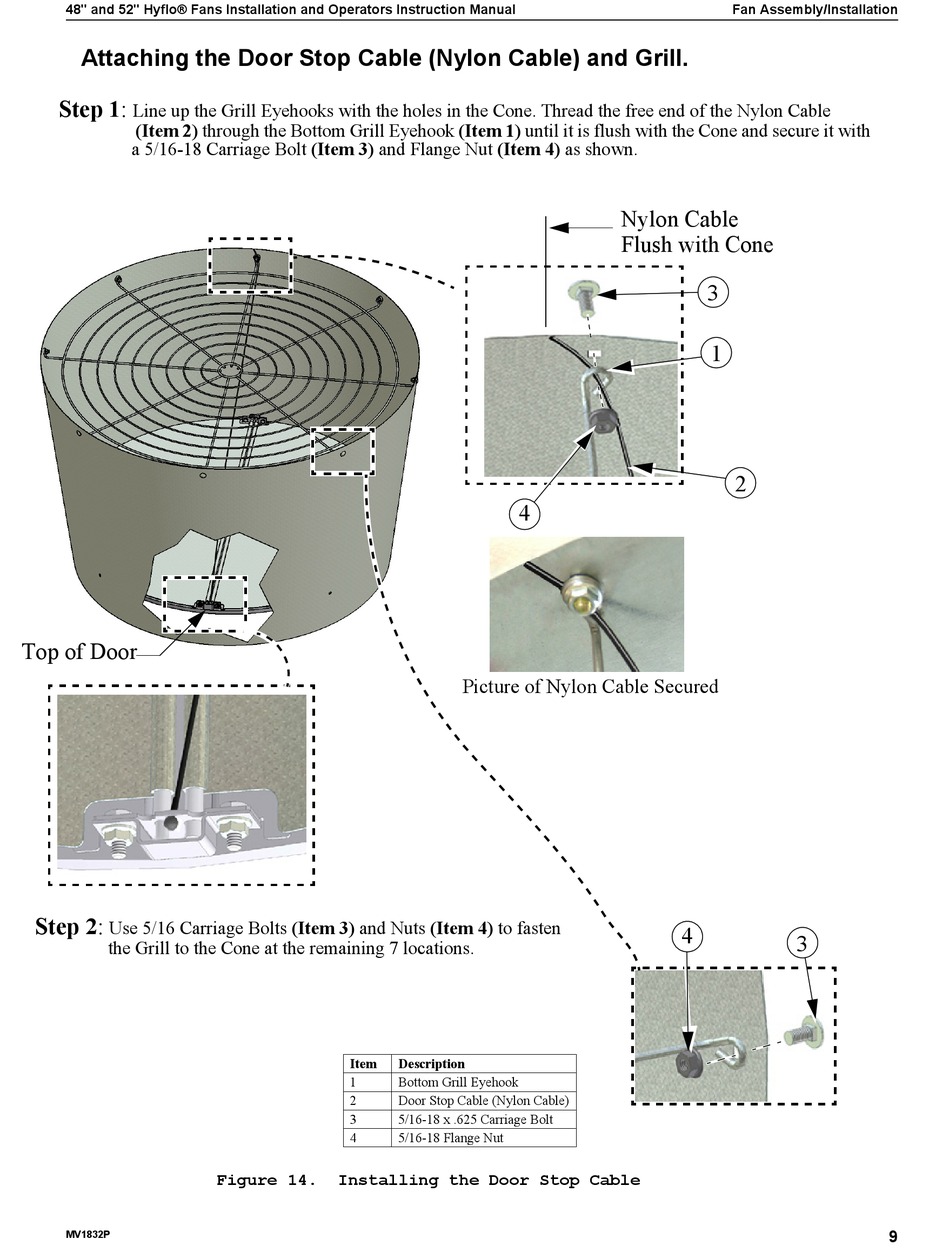

Figure 14. Installing the Door Stop Cable
3 4
Picture of Nylon Cable Secured
Description
Bottom Grill Eyehook
Door Stop Cable (Nylon Cable)
5/16-18 x .625 Carriage Bolt
5/16-18 Flange Nut
Fan Assembly/Installation
Nylon Cable
Flush with Cone
3 3
3 1
3 2
3 4
3 3
