Fan Assembly/Installation

Installing the Screen

Step 1:
Hang the Screen (Item 1) on the four Screen Clips (Item 2) and position it so the Screen Wire is
captured between 1/8" tall Tabs and Screen Retainers (Item 3).
3 2
3 1
3 2
16
48" and 52" Hyflo® Fans Installation and Operators Instruction Manual
Step 2:
Rotate the two Screen Retainers to
capture the Screen.
1/8" Tab
Front of Screen Cut away for Clarity
Item
1
2
3

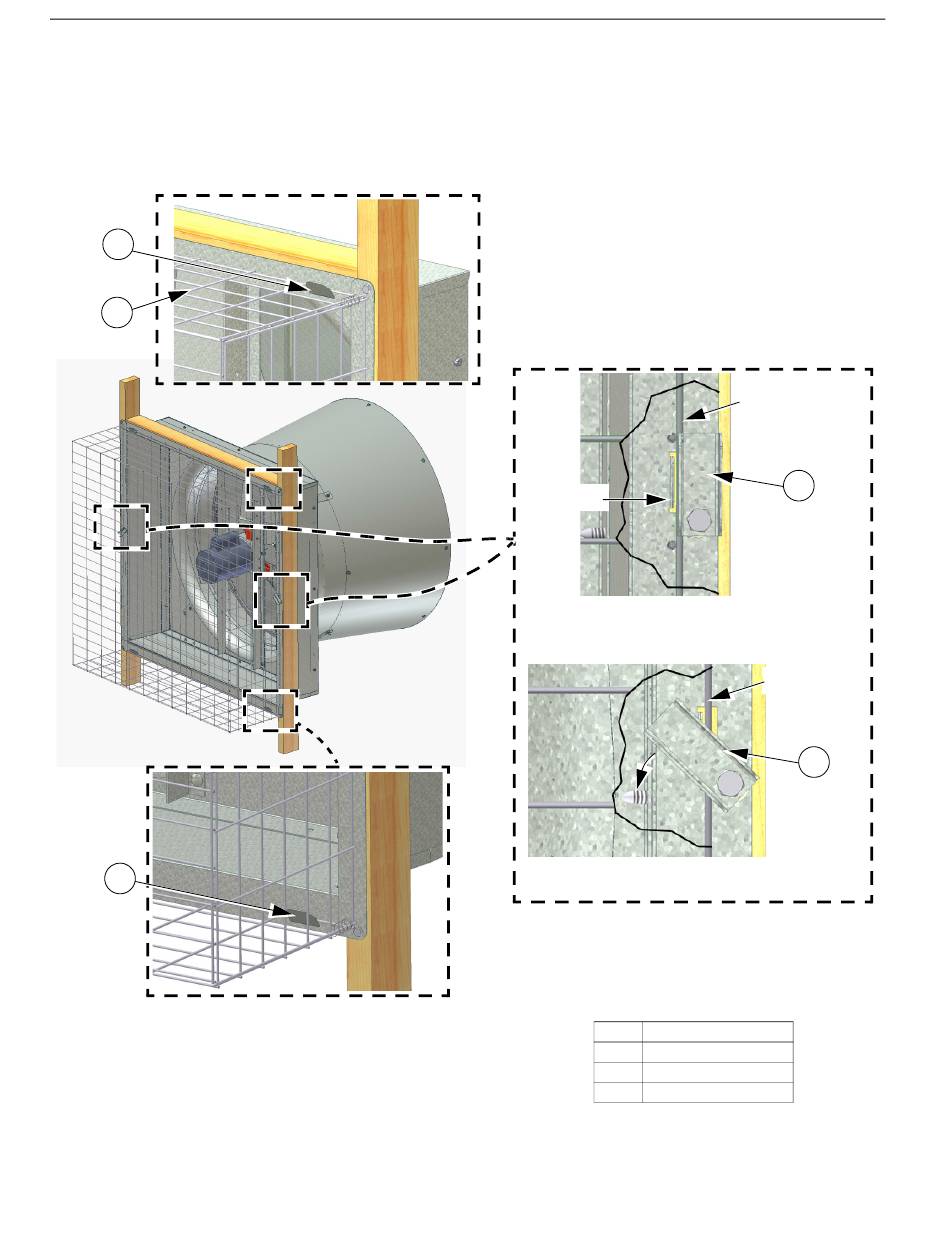

Figure 24. Installing the Screen
Screen Wire
3 3
Screen Wire
3 3
Description
Screen
Screen Clip
Screen Retainer
