Installation

Installing the Screen

Orient the Screen as shown below with the fine mesh section on the outside of the Fan. Slide the top of the Screen
under the Screen Retainers (Step 1, Figure 11) and turn the bottom Screen Clip to hold the Screen in place (Step
2). Turn the other (4) Screen Clips to secure the Screen in Place (Step 3).
Intake side of Fan
Step 1:
Slide Screen under Screen
Clips
10
3
Step 2:
Key Description
1 Screen
2 Insert Screen
3 Screen Retainer (Included in Parts Pkg.)
4 Screen Clip (Included in Parts Pkg.)

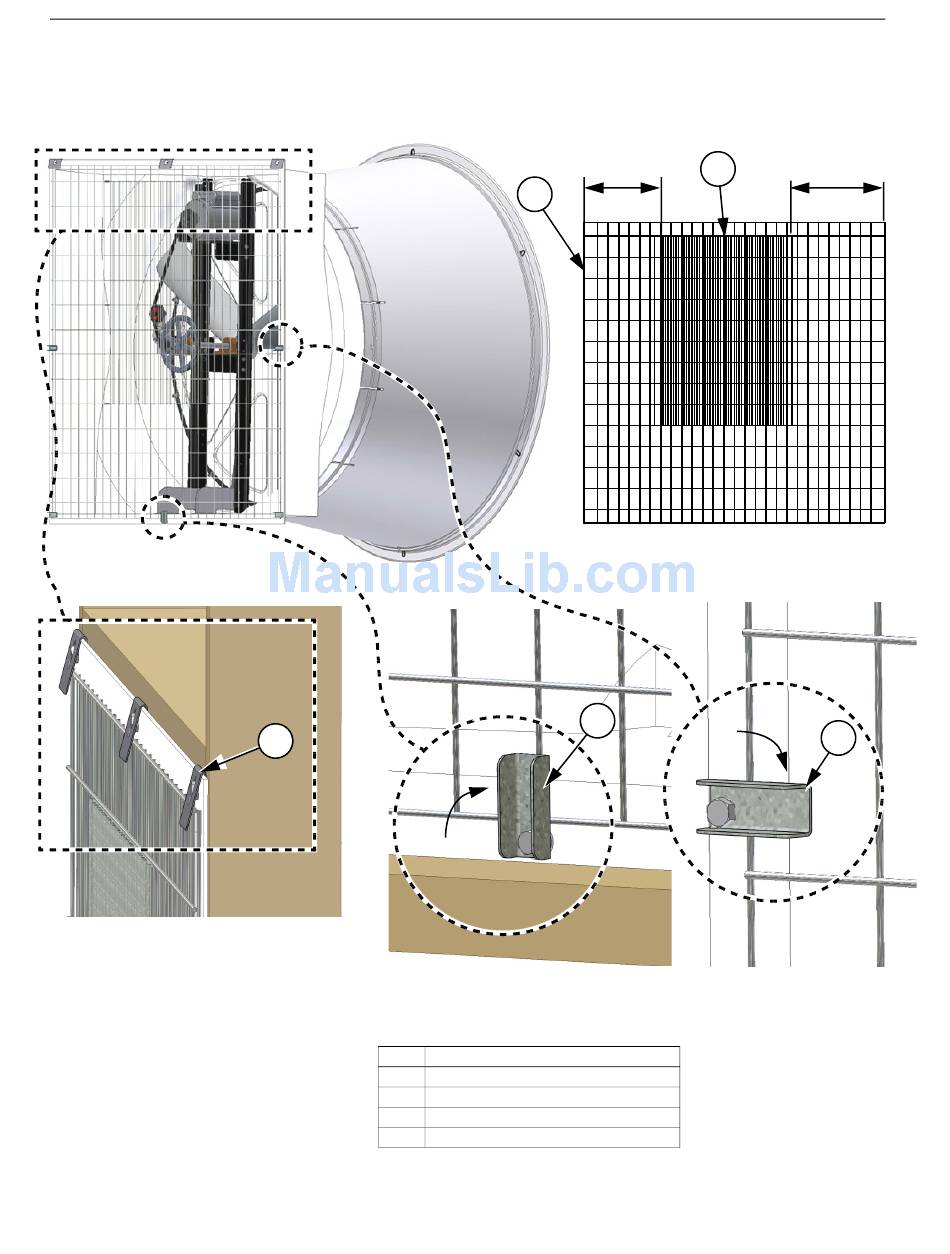

Figure 11. Attaching the Screen
6-1/2 Spaces
1
Proper Screen Orientation from Intake side of Fan
4
Rotate bottom
Screen Clip
8-1/2 Spaces
2
4
Step 3:
Rotate remaining
Screen Clips
