Chapter 2: Jumpers and Connectors

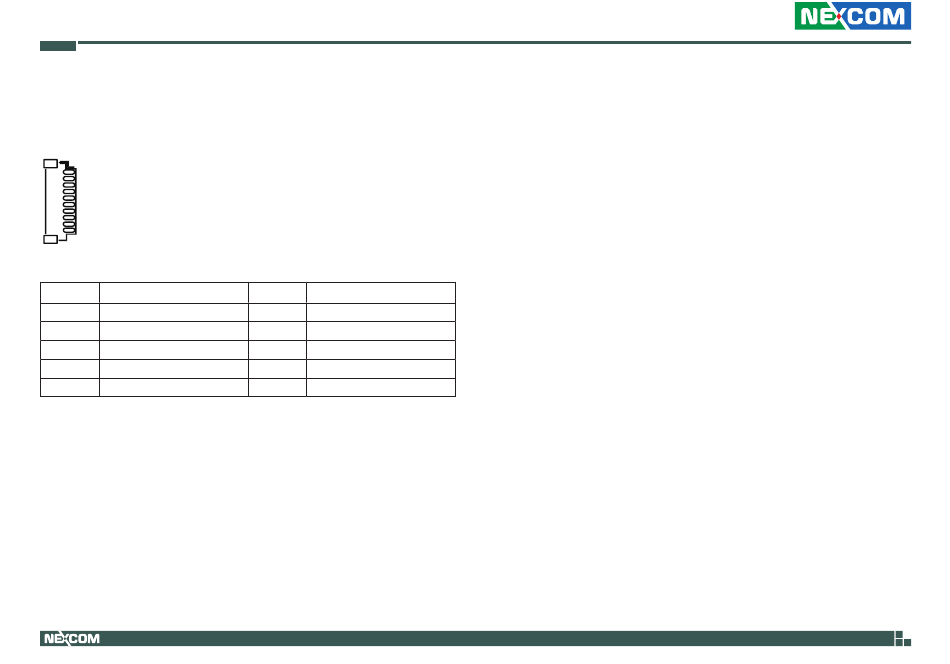

GPIO Connector
Connector type: 10-pin header
Connector location: GPIO
1
10
Pin
Definition
1
+5V
3
GPO0
5
GPO2
7
GPI0
9
GPI2
Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
GND
4
GPO1
6
GPO3
8
GPI1
10
GPI3
16
X103 User Manual
