9/74 IRMA MATRIX R2 CAN Installation manual
released
1.3

The connector systems

1.3.1

M12 connector of the CAN type

IRMA CAN sensors are connected to the CAN BUS with 5-pole M12 connectors (m/f).

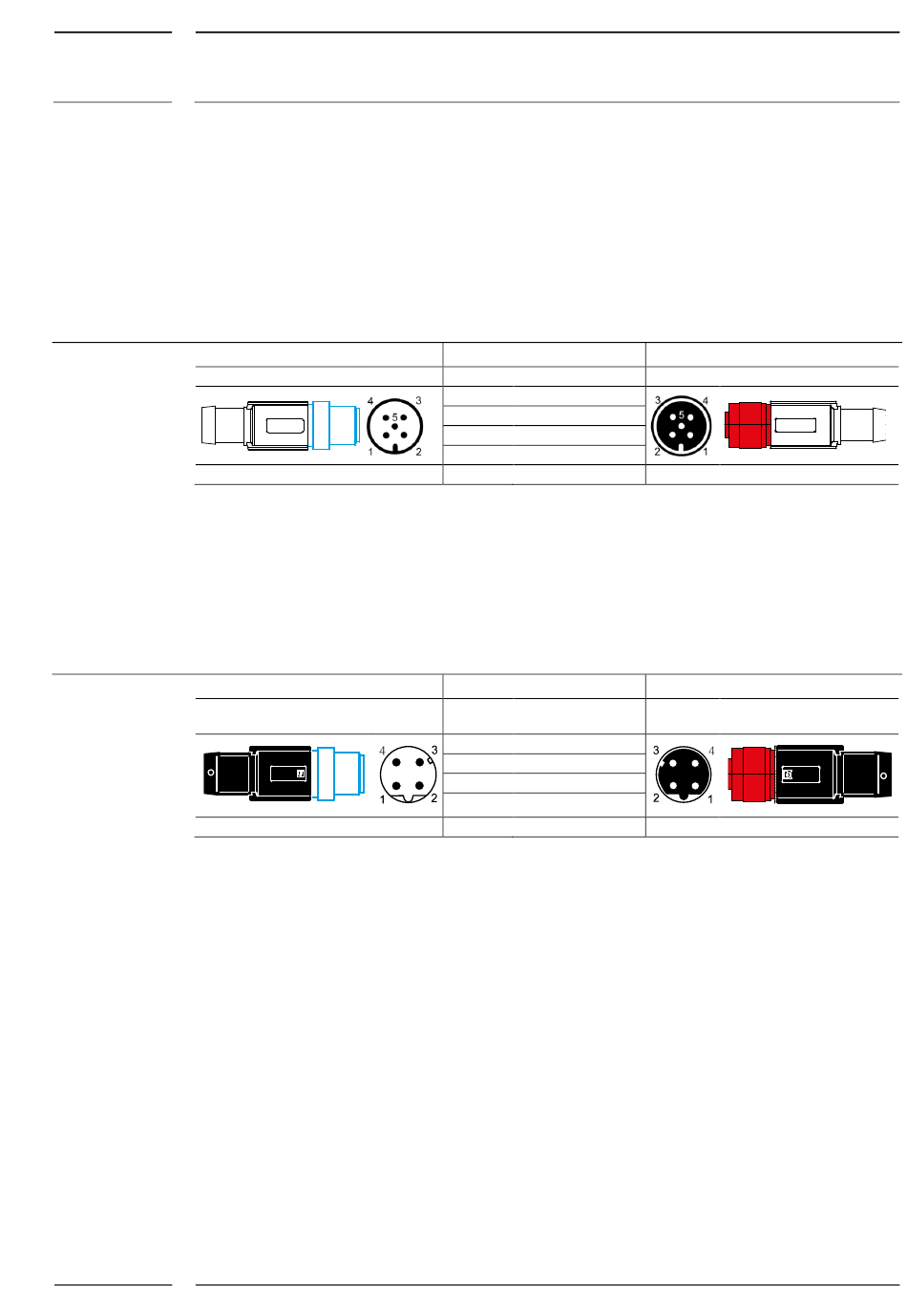

Table 1: Assignment of the CAN type M12 connector (m/f)
M12 connector (m) of the CAN type
1.3.2

M12 connector of the ETH type

For service purposes the MATRIX sensor makes an Ethernet interface available. It is connected
with 4-pole M12 connectors of the ETH type.
Table 2: Assignment of the ETH type M12 connector (m/f)
M12 connector (m) of the ETH type
Rev. 1.6 2018-09
Pole pattern
5 poles, A coded
Pole
pattern
4 poles, D coded
Pin assignment:
Pin Signal
Pin 1 Housing and shield
Pin 2 VP+
Pin 3 VP-
Pin 4 CAN-H
Pin 5 CAN-L
Pin assignment:
Pin Signal
Pin 1 TD+
Pin 2 RD+
Pin 3 TD-
Pin 4 RD-
Housing Shield
M12 connector (f), CAN type
Pole pattern
5 poles, A coded
M12 connector (f), ETH type
Pole pattern
4 poles, D coded
